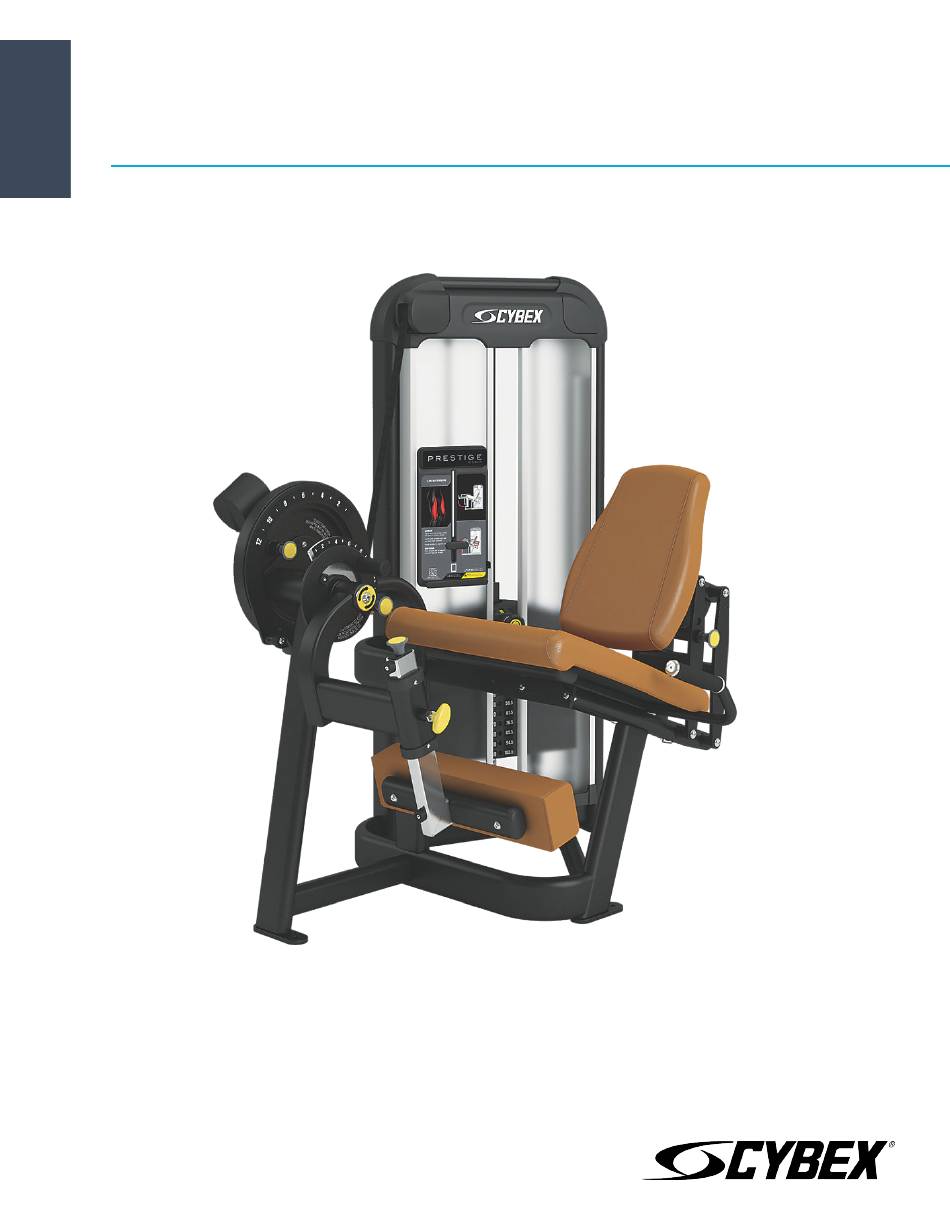

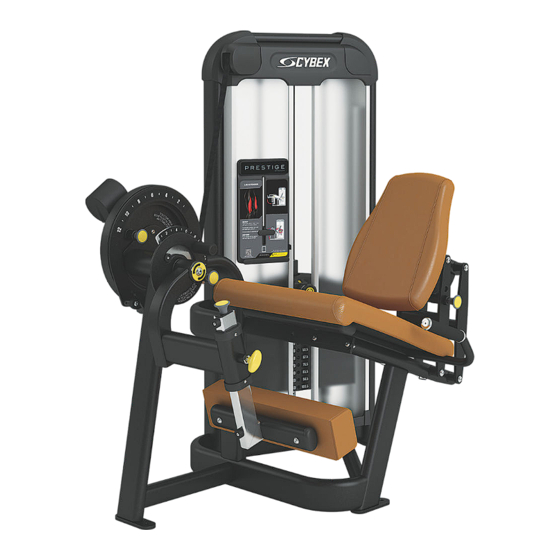

- Page 1 Prestige Leg Extension ® Owner's Manual Part Number 21050-999-4 AD...
- Page 3 AMERICAS United Kingdom All Other EMEA Countries and Distributor Business EMEA* North America Life Fitness UK LTD Life Fitness Atlantic BV Cybex International Inc. Queen Adelaide Bijdorpplein 25-31 Ely, Cambs, CB7 4UB 2992 LB Barendrecht 10601 W Belmont Ave Telephone: General Office (+44) 1353.666017 THE NETHERLANDS Franklin Park, IL 60131 U.S.A.
- Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://lfworld.lifefitness.com Additional information is available online using the links above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.
-
Page 5: Table Of Contents
Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes. -
Page 6: Safety Guidelines And Practices
To maximize stability and eliminate rocking, tipping, or falling over, equipment must be anchored to a solid, level surface, utilizing all anchoring holes provided. • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. •... -
Page 7: User Safety Precautions
DO NOT pin weights on selectorized equipment in an elevated position or use the machine if found in this position • DO NOT increase weight resistance on equipment by any means other than those provided by Cybex. • DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving parts. -
Page 8: Warnings And Cautions
Warnings and Cautions Warning labels indicate a potentially hazardous situation that could result in serious injury or death if the precautions are not observed. Caution labels indicate a potentially hazardous situation that could result in serious injury or damage to machine if the precautions are not observed. -
Page 9: Label Placement
Label Placement The following diagram shows where each label is located. Description DE000023-X 8500-025-X Page 7 of 24... -
Page 10: Assembly
Assembly Machine Specifications Total Weight and Size: 21050 Prestige Leg Extension Standard Stack Weight Machine Dimensions at Rest Machine Dimensions in Use 565 Lbs 49” L × 41” W × 58” H 65” L × 43” W × 56” H 257 Kg 124 cm L ×... -
Page 11: Environment
Environment Humidity and Static Electricity The unit is designed to function normally in an environment with a relative humidity range of 30% to 75%. The unit can be shipped and stored in a relative humidity range of 10% to 90%. Climatic dry air may cause static electricity. -
Page 12: Assembly Procedure
To maximize stability and eliminate rocking, tipping, or falling over, equipment must be anchored to a solid, level surface, utilizing all anchoring holes provided. • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. •... - Page 13 3. Remove screws securing top mount to frame using a Phillips screwdriver. Item Description Screw Top mount Back panel 4. Slide back panel upward and remove. 5. Remove set screws securing belt to belt clamp using a 7/32" Allen wrench. Item Description Belt clamp...
- Page 14 4. Lean guide rods slightly outward, away from machine. DO NOT put excessive pressure on guide rods, it will damage lower guide rod caps. 5. Slide top weight up and out of the machine and set aside. 6. Remove weight plates and set aside for re-installation later. 7.
- Page 15 Apply weight plate decal (if not already installed on weight plates) 1. Peel off half of backing from weight plate decals, making sure that the decals remain attached to the front sheet. Item Description Backing Front sheet Weight decals 2. Place decals front sheet in the correct position on weight plates. 3.
- Page 16 4. Verify belt and insert are installed properly. Do not install the insert backwards. Correct belt routing Incorrect belt routing Item Description Qty. Belt Insert Belt clamp 5. Pull belt tight and secure belt to clamp with set screws. 6. Torque set screws 300-350 lb-in. 7.
- Page 17 To maximize stability and eliminate rocking, tipping, or falling over, equipment must be anchored to a solid, level surface, utilizing all anchoring holes provided. • Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position. •...
-
Page 18: Exercise
Exercise Intended Use The intended commercial use of this machine is to aid exercise and improve general physical fitness. Instructions TIP: Read and understand all instructions and warnings prior to using this machine in the Safety section of the Owner’s Manual. CAUTION: Use only in manner depicted. -
Page 19: Maintenance
Cleaning products may be harmful/irritating to your skin, eyes, etc. Use protective gloves and eye protection. Do Not inhale or swallow any cleaning product. Protect surrounding area/clothing from exposure. Use in well ventilated area. Follow all product manufacturer’s warnings. Cybex and its vendors cannot be held responsible for damage or injuries resulting from the use or misuse of cleaning products. -
Page 20: Weekly Procedures
Then 1. Apply a light coat of furniture wax for 30 seconds. Restoring Luster 2. Lightly rub area using a clean white cloth. Clean Frames Wipe down all frames using a mild solution of warm water and car wash soap. Be sure to dry thoroughly. AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these could scratch or damage the equipment. - Page 21 The following conditions may indicate a worn belt: Condition of Belt 3D View 3D or Side View Peeling of the belt’s skin. Wave in belt Replace belt if any section is over 1/32” Examine edge of belt (both sides). Replace (.03) narrower than the rest of belt belt if any section is narrower than the rest.
-
Page 22: Yearly Procedures
Inspection Action Inspect grips for looseness or wear. Replace all loose or worn grips immediately. Inspect all labeling for readability, including instructional Replace all worn labeling immediately. placards, warning and caution decals. Correct all improper alignment and operation issues Inspect all weight stacks for proper alignment and operation. immediately. -
Page 23: Customer Service
Follow the following procedures carefully. Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will request a RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment be accepted by Cybex without proper RMA and an Automated Return Service (ARS) label. -
Page 24: Damaged Parts
Damaged Parts Materials damaged in shipment should not be returned for credit. Shipping damages are the responsibility of the carrier (UPS, Federal Express, trucking companies, etc.) Apparent Damage Upon receipt of your shipment, check all items carefully. Any damage seen with a visual check must be noted on the freight bill and signed by the carrier’s agent. - Page 26 10601 W Belmont Ave, Franklin Park, IL 60131 • 800-351-3737 • 847-288-3700 • www.cybexintl.com...
