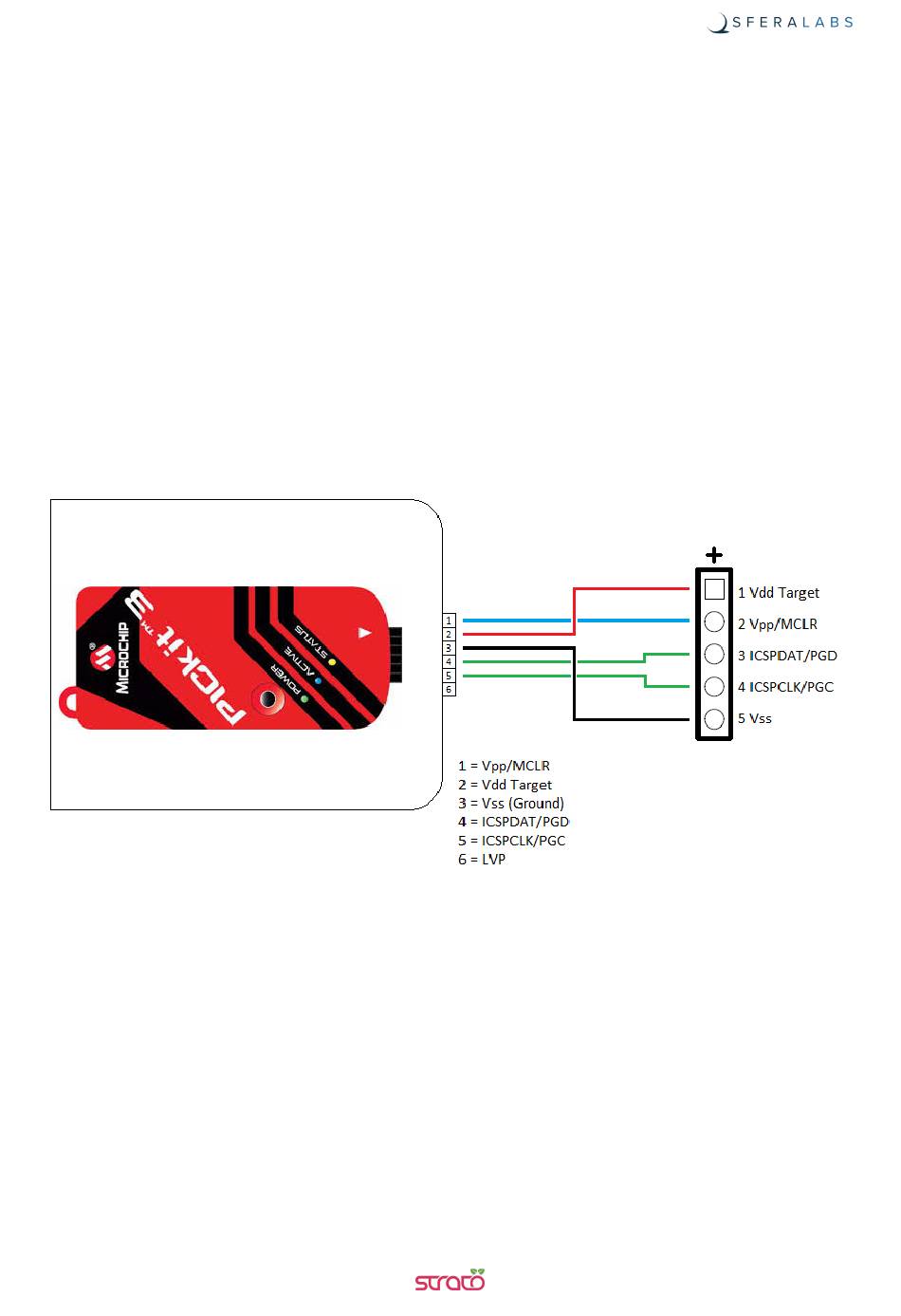

The Strato Pi ICSP header
The Strato Pi Base, UPS, CAN and CM have a programming header that can be used to
flash the MCU firmware.
The MCU can be powered from the ICSP header at 3.3V, otherwise the Strato Pi board
must be powered through its power supply input.
Note: improper wiring of the ICSP connections, or using a supply voltage different
from 3.3V may damage the Strato Pi board, the Raspberry Pi or the programmer, and
voids the product warranty.
Note: Sfera Labs is not responsible for malfunction of damage caused by firmware
uploaded by the customer.
17
Strato Pi Logic Controller
