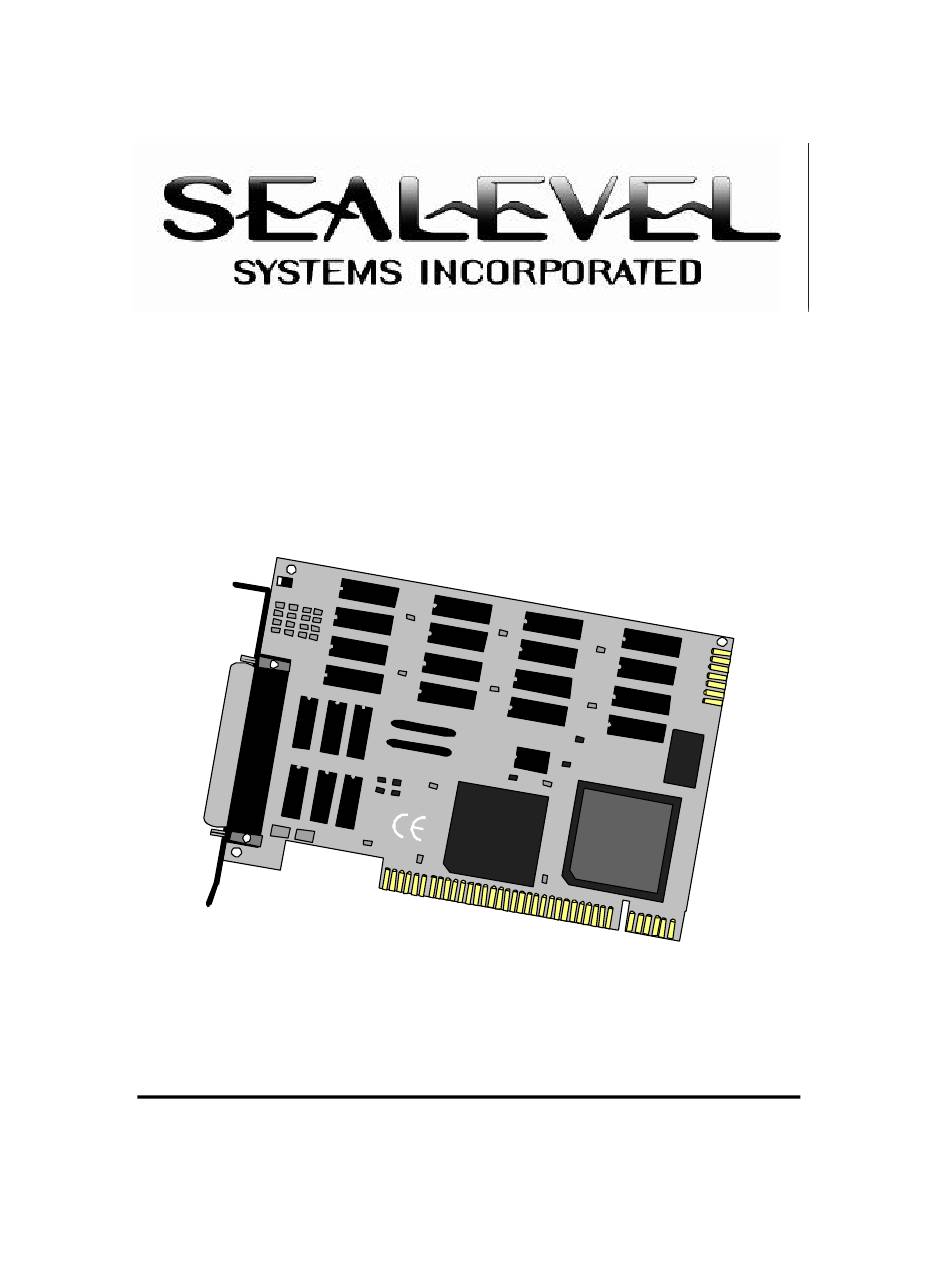

- Page 1 ISO-16.PCI USER MANUAL Part # 8006 Sealevel Systems, Inc Phone: (864) 843-4343 155 Technology Place FAX: (864) 843-3067 P.O. Box 830 www.sealevel.com Liberty, SC 29657 USA...
-
Page 2: Table Of Contents
B - H ...............11 PPENDIX SSISTANCE C - S ..................12 PPENDIX CREEN D - C ..............13 PPENDIX OMPLIANCE OTICES ......13 EDERAL OMMUNICATIONS OMMISSION TATEMENT EMC D ..............13 IRECTIVE TATEMENT .......................14 ARRANTY ©2002a Sealevel Systems, Incorporated. All rights reserved. -
Page 3: Introduction
The ISO-16.PCI is PCI 2.1 bus compliant. Addressing, data and control signals are TTL compatible. What’s Included The ISO-16.PCI is shipped with the following items. If any of these items are missing or damaged, contact the supplier. • ISO-16.PCI Interface Adapter •... -
Page 4: Technical Description
Technical Description Technical Description The ISO-16.PCI provides two parallel input ports. Port A and B are interfaced to optically isolated inputs. Assuming an I/O address of 300 Hex the following table shows the Port Addresses. Base Address Decimal Mode Port A Address... - Page 5 Because socketed DIP resistor networks are utilized, they can be replaced with a different value. This can be done at the factory, if necessary. !!Caution!! Maximum ratings for inputs are: • AC – 42.4V peak • DC – 60V Sealevel Systems ISO-16.PCI Page 3...
-
Page 6: Sensor Input Ports Pin Assignments
Sealevel's terminal block kit, Part# KT-101. The KT-101 kit, consisting of a 6 ft. M/F cable and screw terminal block provides a simple means to connect field wiring to Sealevel 37-pin I/O cards. The Sealevel Terminal Block provides both male and female DB-37 connectors eliminating the need for gender benders and other adapters while simplifying cable connections. -
Page 7: Programming
In all addressing modes, port numbers are zero-indexed; that is, the first port is port #0, the second port is #1, the third #2, and so on. Because the 8006 does not have any output ports, the mapping of relative and absolute addressing is the same. Sealevel Systems ISO-16.PCI Page 5... - Page 8 11 ( R ) 12 ( R ) 12 ( R ) 13 ( R ) 13 ( R ) 14 ( R ) 14 ( R ) 15 ( R ) 15 ( R ) Sealevel Systems ISO-16.PCI Page 6...
-
Page 9: Direct Hardware Control
Interrupts can be set up as shown on the following page. Port A bit zero is the interrupt source. R = Read W = Write R/W = Read or Write Function Port Address Hex Port Type Available Base + 0 Input Port (Opto Input) Base + 1 Input Port Sealevel Systems ISO-16.PCI Page 7... -
Page 10: Register Description
1 = enabled (disabled after reset or PAD0-7 = Port A (Base+0) power up). PBD0-7 = Port B (Base+1) IRQST = interrupt status (Base+5) 1 = interrupt pending (reading the bit clears interrupt). Bit can not be written. Sealevel Systems ISO-16.PCI Page 8... -
Page 11: Specifications
Relay Life expectancy is dependent on actual application usage. Physical Dimensions Board length 5.20 inches (13.208 cm) Board Height including Goldfingers 3.50 inches (8.890 cm) Board Height excluding Goldfingers 3.175 inches (8.065 cm) Note: Please see Appendix C for board layout and dimensions. Sealevel Systems ISO-16.PCI Page 9... -
Page 12: Appendixa - Troubleshooting
3. Ensure that there is no conflict with currently installed adapters. No two adapters can occupy the same I/O address and may not be allowed to share IRQs. 4. Make sure the Sealevel Systems adapter is securely installed in a motherboard slot. Sealevel Systems ISO-16.PCI... -
Page 13: Appendixb - How T O Get Assistance
If possible, please have the adapter installed in a computer ready to run diagnostics. 3. Sealevel Systems maintains a Home page on the Internet. Our home page address is www.sealevel.com. The latest software updates, and newest manuals are available via our FTP site that can be accessed from our home page. -
Page 14: Appendixc - Silk -Screen
Appendix C - Silk-Screen Appendix C - Silk-Screen 3.50" 5.20" 3.175" Sealevel Systems ISO-16.PCI Page 12... -
Page 15: Appendixd - Compliance Notices
"This product has been tested to meet FCC Class B requirements. If Class B certification is required, please contact Sealevel Systems for Part# FB-102, ferrite bead." Warning This is a Class A Product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. -
Page 16: Warranty
Sealevel Systems, Inc. provides a lifetime warranty for this product. Should this product fail to be in good working order at any time during this period, Sealevel Systems will, at it's option, replace or repair it at no additional charge except as set forth in the following terms.
