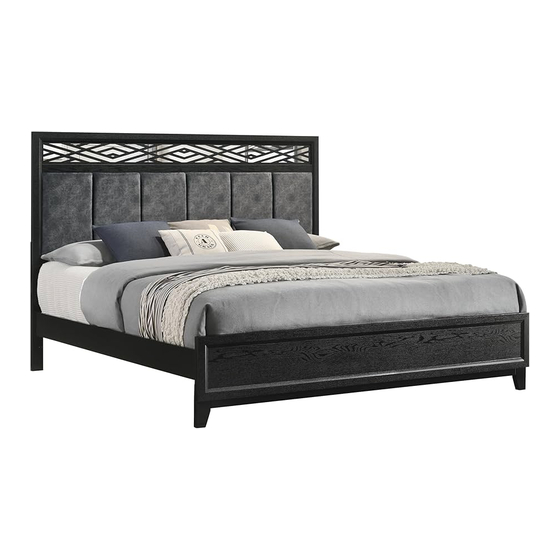

New Classic Furniture OBSIDIAN B1655-115 Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the parts list and/or hardware list shown.
PARTS LIST
NO COMPONENT
Headboard
A
Footboard
B
Headboard Leg LSF
C
Headboard Leg RSF
D
Slats
E
Slats Support Leg
F
Side Rail
G
H Bottom Stretcher
Attach Head Board Leg ( C & D ) to Head Board ( A ) as shown using JCBC BOLT ( 1 ) with Spring Washer (2), Flat washer (3)
STEP 1 :
and securing with Allen Key ( 4 ) .
A
C
NOTE : MUST TIGHTEN SCREWS PERIODCALLY WITH USE SCREW WILL BECOME LOOSE CHECK TIGHTNESS OF ALL SCREW EVERY 6-8 WEEKS.
ASSEMBLY INSTRUCTIONS
B1655-115 OBSIDIAN 5/6-6/0 EK/WK HEADBOARD,FOOTBOARD
& SLATS
B1655-235 OBSIDIAN 6/0 WK SIDE RAILS
HARDWARE LIST
QTY
DRAWING
1 pc
1 pc
1 pc
1 pc
4 pcs
8 pcs
2 pcs
1 pc
NO COMPONENT
1
JCBC M6 x 1 3/16" Blk
2
Spring Washer 1/4" Blk
3
Flat Washer 1/4"IDx4/8"OD Blk
4
Allen Key M4 x 2 9/16" Blk
5
Allen Key M5 x 2 9/16" Blk
Pan Head Chipboard Screw
6
M3.5 x 5/8"mm Blk
7
L-Bracket Blk
Flat Head Chipboard Screw
8
M4 x 1 2/8" Rbw
D
QTY
DRAWING
6 pcs
6 pcs
6 pcs
1 pc
1 pc
16 pcs
8 pcs
4 pcs
4
1
2
3
x6
1 OF 2
