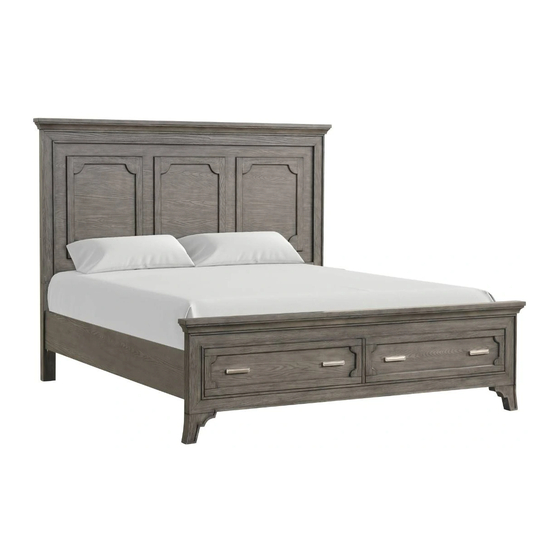

New Classic Furniture LISBON B1605-110 Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with the
PARTS LIST and/or HARDWARE LIST shown below.
Caution: Please read the instructions thoroughly before assembly.
1. We recommend that you assemble this product with the assistance of another person: this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2. Please do not over tighten screws or bolts until the assembly is completed.
3. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your
newly purchased product correctly and efficiently
PARTS LIST
NO: COMPONENT
A
Headboard
B
Footboard
C
Side Rail
D
Headboard Crossbar
Left Side Facing
E
(LSF) HB Leg
Right Side Facing
F
(RSF) HB Leg
Left Side Facing
G
(LSF) FB Leg
Right Side Facing
H
(RSF) FB Leg
I
Footboard Support Legs
J
Slats
K
Support Legs
B1605-110 LISBON 6/6-6/0 EK/WK HEADBOARD
B1605-120 LISBON 6/6-6/0 EK/WK STORAGE FOOTBOARD AND SLATS
B1605-330 LISBON 5/0-6/6 Q/EK RAILS
SKETCH Q'TY
1PC
1PC
2PCS
1PC
1PC
1PC
1PC
1PC
3PCS
1 SET
8PCS
MADE IN VIETNAM
Assembly Instructions
HARDWARE LIST
NO: COMPONENT
1
Bolt 5/16" x 1-3/4"
2
Bolt 5/16" x 3-1/2"
3
Flat Washer 5/16"*3/4"
4
Lock Washer 5/16"
5
Half Moon Washer 5/16"
6
Nut (5/16")
7
Screw: #8*1-1/4"
8
Allen key
9
Open Wrench 5/16"
10
Bolt 5/16" x 2-1/4"
SKETCH Q'TY
8pcs
8pcs
10pcs
18pcs
8pcs
8pcs
26pcs
1pc
1pc
2pcs
PAGE: 1 of 4
