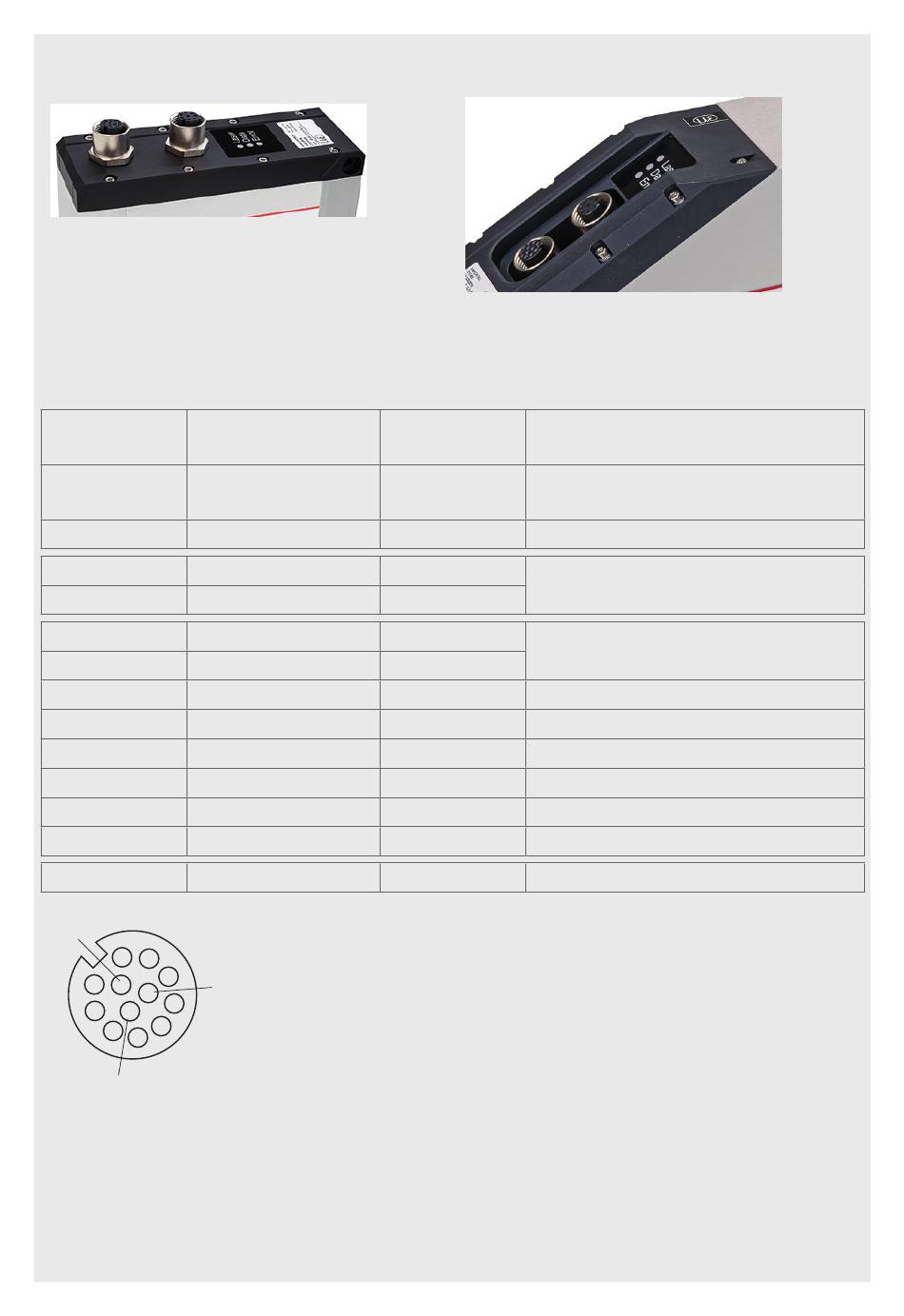

5. Connections, LED Displays
1 2
1 Multifunction port (power supply, I/O)
2 Ethernet port
Multifunction Port
Designation Sensor connector
pin
V
+
GND
+Laser on/off
-Laser on/off
RS422
/RS422
GND RS422
In1
In2
In3
In4
GND-In
Shield
2
3
10
4
1
5
9
6
8
7
12
12-pin screw connector, view on solder side (cable)
scanCONTROL 3000 / 3002
9
2
3
1
12
11
10
4
6
8
5
7
Housing
11
1
Cable color
PCR3000-x
Red
Blue
White
Brown
Red-blue
Gray-pink
Purple
Green
Yellow
Gray
Pink
Black
Black Not electrically connected to GND
GND: galvanically isolated from In1, In2, In3, In4,
RS422, laser on/off
Laser on/off: input galvanically isolated from GND,
In1, In2, In3, In4, RS422
In1, In2, In3, In4, RS422: inputs galvanically isolat-
ed from GND and laser on/off
2
Notes
+ 11 V - 30 V DC
(rated value 24 V); max. 5 W
0 V
Available with SI option
RS422
input or output
Ground connection RS422
Switching input In1
Switching input In2
Switching input In3
Switching input In4
Ground connection In
