Summary of Contents for Origin Effects HALCYON BLUE OVERDRIVE

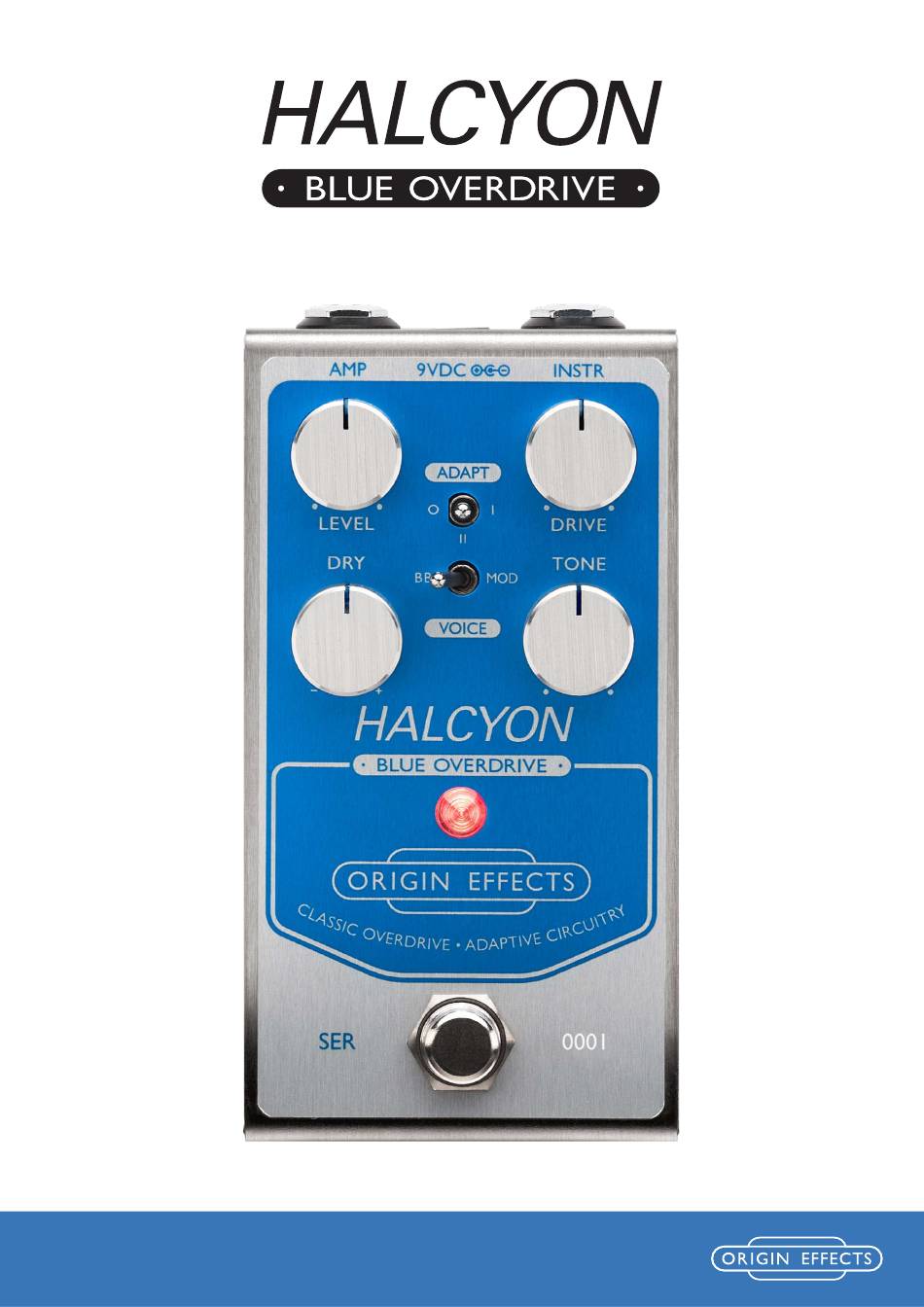

- Page 1 OWNER’S MANUAL Version 2.1...
- Page 2 ORIGIN EFFECTS is a trademark of Origin E ects Limited and is a registered trademark in the United States, United Kingdom, China and the EU. The ORIGIN EFFECTS Totem Device is a trade mark of Origin E ects Limited and is a registered trademark in the United States, China and United Kingdom.
-
Page 3: Table Of Contents
Connecting the Halcyon Blue Overdrive ........ -
Page 4: Safety Notices
Halcyon Blue Overdrive Safety Notices: General Information: This document contains important information for the safe operation of the product. Read and follow the safety instructions and all other guidance. Our products and documentation are subject to a process of con- tinuous development. -
Page 5: Safety Instructions
Halcyon Blue Overdrive Safety Instructions: Intended use: This device is intended for use as e ects pedal for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is considered to be improp- er and may result in personal injury or property damage. -
Page 6: Introducing The Halcyon Blue Overdrive
Adaptive Circuitry. With a broad midrange emphasis, and designed to provide an amp-like overdrive character into cleaner amp tones, the Halcyon Blue Overdrive delivers the thick, edge of breakup and overdriven tones that the Bluesbreaker ®... -
Page 7: Connecting The Halcyon Blue Overdrive
Halcyon Blue Overdrive Connecting the HALCYON BLUE OVERDRIVE 9VDC: Connect a 9VDC 2.1mm centre-negative mains power adaptor (minimum 200mA). NOTICE! Damage to device if powered incorrectly! This product is designed to be powered from a 9VDC, >200mA power supply with 2.1mm centre-negative barrel connector. - Page 8 Halcyon Blue Overdrive Controls (continued) TIP: To hear the ADAPT switch in action, select position II, play some licks, then roll down your guitar volume to a clean tone and select position O. You will hear a big di erence between the adaptive and stock clean tones! ADAPT SWITCH: This enables the Adaptive Circuitry, allowing the pedal’s boosted midrange to gradually...
-
Page 9: Sample Settings
Halcyon Blue Overdrive Sample Settings MODDED LEAD BLUES BOOST ® Our take on the modded Bluesbreaker sound. Bluesbreaker ® tone with extra responsiveness. This This rich-yet-cutting lead tone works great with low-gain drive tone gives a touch of grit and a lift in humbuckers into a clean amp. -
Page 10: Appendix A: Physical Specification
Halcyon Blue Overdrive Appendix A: Physical Specification Measurement Unboxed Boxed Weight 500g (18oz) 570g (20oz) Length 124mm (4.8”) 135mm (5.3”) Depth 64mm (2.5”) 90mm (3.5”) Height 58mm (2.3”) 85mm (3.3”) Appendix B: Performance Specification Measurement Value 1M Ω Input impedance 1k Ω... -
Page 11: Appendix D: Environmental Information
Halcyon Blue Overdrive Appendix D: Environmental information The crossed out wheely bin symbol indicates this product is classified as Waste Electrical and Electronic Equipment (WEEE) in the European Union and should not be discarded with household waste. Other territories may vary. Contact your local authority or Origin E ects for more information. -
Page 12: Appendix F: Warranty
Halcyon Blue Overdrive Appendix F: Warranty This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to original purchasers who have bought their product from an authorised Origin E ects dealer or directly from Origin E ects.
