IRF-DUALTOP
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRONHEART FOUNDRY Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Laney IRONHEART FOUNDRY Series

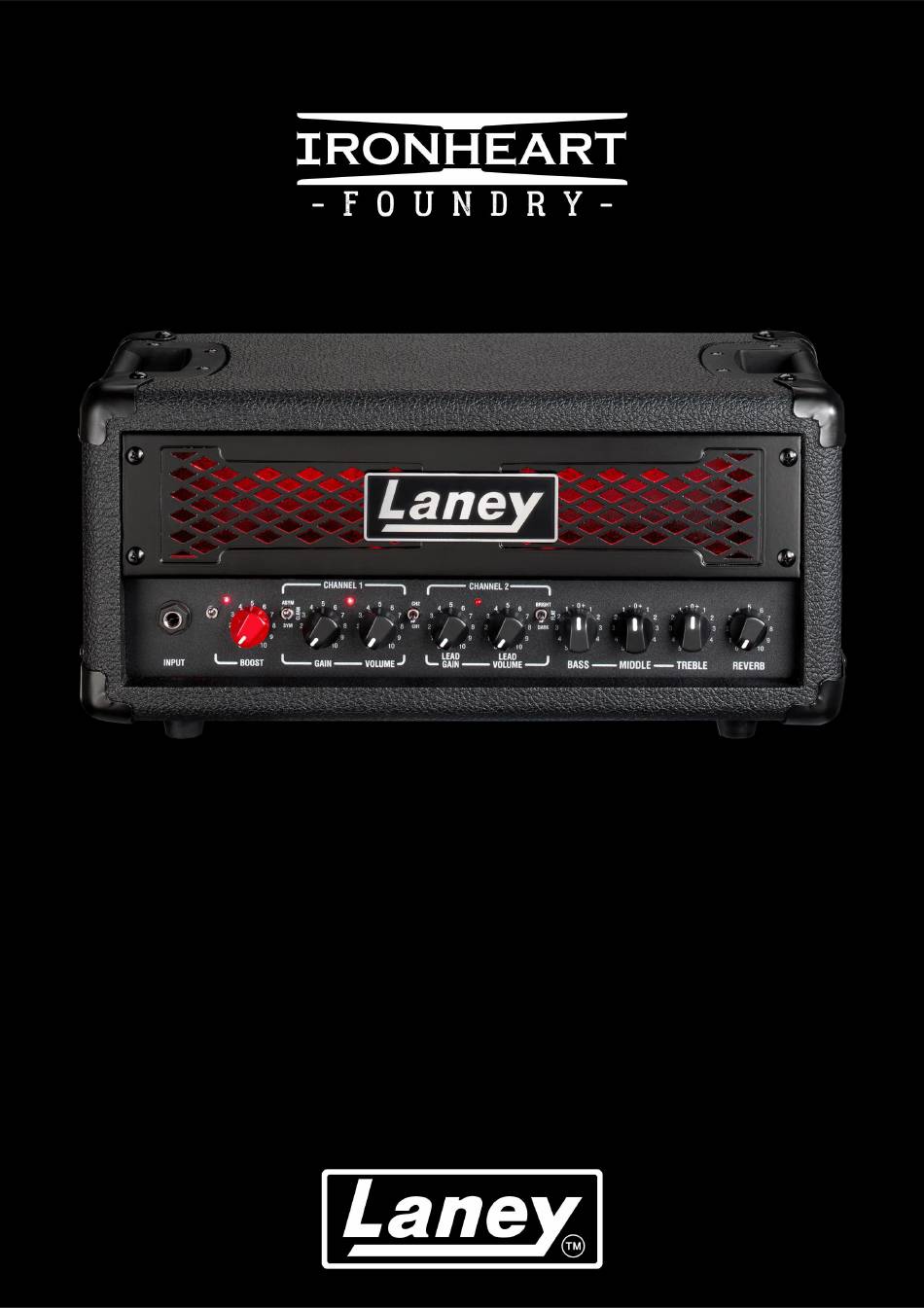

  • Page 1 IRF-DUALTOP USER MANUAL...
  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION ..............................2 FEATURES ..............................2 CONTROLS ................................. 3 FRONT PANEL ............................... 3 BACK PANEL ..............................5 HOW TO CONNECT THE DUALTOP ....................... 6 INTO A PASSIVE CAB ..........................6 WITH AN FX LOOP........................... 6 HEADPHONES AND AUX IN FOR SILENT PRACTICE ................7 USING THE DI OUT ..........................
  • Page 3: Introduction

    Heavy Metal; the beating twisted heart of the Black Country. The IRONHEART FOUNDRY series is forged from fire and iron right at the heart of the Black Country, the legendary furnaces rekindled to create a beast. We, tone blacksmiths of the midlands, have created a monster.
  • Page 4: Controls

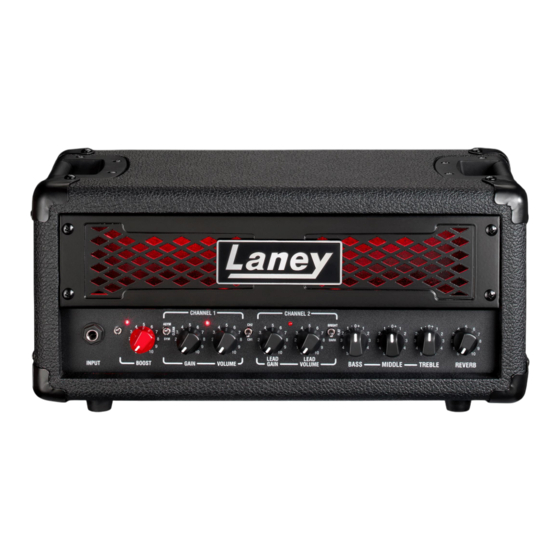

    CONTROLS FRONT PANEL 1. INPUT SOCKET Plug in the input jack from your guitar here, suits any standard 6.3mm mono jack. 2. BOOST CONTROL The boost control is an additional gain setting that acts as a boost pedal in front of your DUALTOP, driving your signal for more distortion.
  • Page 5 • TREBLE – Adjusts the strength of the top-end response, boosting the brighter higher notes. 7. REVERB CONTROL Our built-in studio quality spring line reverb effect based on our award-winning Secret Path pedal. Reverb is evocative of space – a note contains pitch, but reverb contains place and fills out the sound. Turn the knob clockwise to increase the strength of the effect.
  • Page 6: Back Panel

    The tip of the jack will control the boost, and the ring will toggle the active channel. Ensure the boost control is switched on and Channel 2 selected to allow them to be controlled. Recommended to use a Laney FS2-Mini (not included) 13. LOUDSPEAKER OUTPUT Connect to any 8ohm (minimum) or 16ohm passive speaker cabinet to unleash the power of the DUALTOP.
  • Page 7: How To Connect The Dualtop

    HOW TO CONNECT THE DUALTOP Plug directly into a passive cabinet using the loudspeaker out socket. Connect your effects pedalboard to the FX loop of the DUALTOP. Page 6...
  • Page 8: Headphones And Aux In For Silent Practice

    The DUALTOP’s high quality headphone output can be connected for silent practice. It is optimised for high impedance headphones, commonly the 33ohm or above, though any can be used. Add a backing track via the 3.5mm AUX connection. Plug in the aux/headphone output of any media player, control its level on your device.
  • Page 9: Example Settings

    EXAMPLE SETTINGS The best way to get started with your DUALTOP is to experiment with the controls to find your favourite sounds. However, for a head start, here are a few example tone settings to try out: RHYTHM LEAD CRUNCH CLEAN FUNK Page 8...
  • Page 10: Specifications

    SPECIFICATIONS Model IRF-DUALTOP Type Guitar Amplifier Head Input Impedance 1MΩ Line Output Impedance 100Ω Minimum Speaker Impedance 8Ω Amplifier Power 60W RMS (Switchable to <1W) Two Channels both with Gain and Volume. CH1 Clean, Rhythm, Lead switch. CH2 Natural, Bright, dark switch. Input pre-boost level and footswitch with LED indicator. Controls Bass, Middle, Treble controls.
  • Page 11: Dimensions (In Mm)

    DIMENSIONS (in mm) Page 10...
  • Page 12: Safety And Warnings

    1) Unpacking: On unpacking your product please check carefully for any signs of damage that may have occurred whilst in transit from the Laney factory to your dealer. In the unlikely event that there has been damage, please re-pack your unit in its original carton and consult your dealer.
  • Page 13 1) This device may not cause harmful interference 2) This device must accept any interference received, that may cause undesired operation. Warning: Changes or modification to the equipment not approved by Laney can void the user's authority to use the equipment.
  • Page 14 STEELPARK ROAD, COOMBSWOOD BUSINESS PARK WEST, HALESOWEN, B62 8HD. UK FOR THE LATEST INFORMATION PLEASE VISIT WWW.LANEY.CO.UK IN THE INTEREST OF CONTINUED DEVELOPMENT, LANEY RESERVES THE RIGHT TO AMEND PRODUCT SPECIFICATION WITHOUT PRIOR NOTIFICATION. V0.9 Page 13...
