- Page 3 UK - where the sound of metal guitar was born, comes the IRONHEART. With molten metal flowing through its circuits, IRONHEART continues the legacy passed on by previous Laney amps such as KLIPP and AOR, and hits you hard between the eyes like a power hammer from hell.

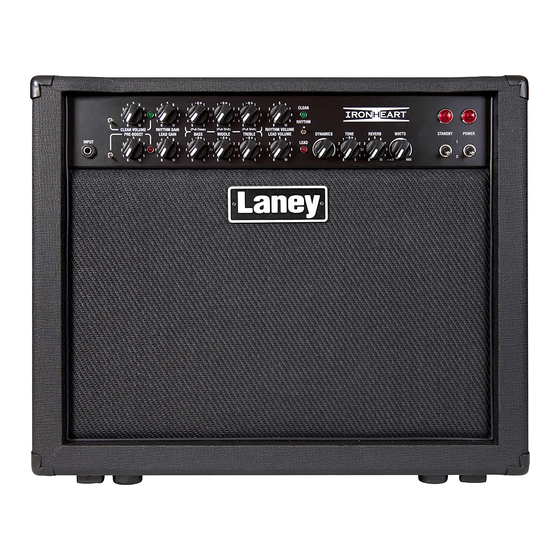

- Page 4 FRONT PANEL CONTROLS 1. INPUT: 1/4" mono jack socket. Connect your guitar here. Use only a good quality instrument cable. 2. PRE-BOOST SWITCH: Switches the input boost circuit on or off. The Pre-Boost circuit increases the input signal to the preamp tubes, just like placing a boost pedal in your signal path.
- Page 5 20. REVERB: Controls the level of the built in Laney-designed digital reverb. 21. WATTS: The Watts control adjusts the signal level within the power amplifier, allowing it to be driven harder at lower volume levels. For full output power, running the power tubes at maximum levels, turn this control fully clockwise.
- Page 6 REAR PANEL CONTROLS REAR PANEL CONTROLS L Z B 1 2 3 4 Spare fuse located in the fuse drawer. 1. MAINS INLET SOCKET: Connect to your power source. Make sure the voltage indicated on the rear panel is correct for your country! 2.
- Page 7 Pre-Boost and Clean to ON, and Channel to Lead 8. LOUDSPEAKER CONNECTIONS: The IRT30-112 is equipped with a 12" custom HH Acoustics 8 ohm loudspeaker which should always be connected to the 8 ohm socket, with the impedance selector switch set to 8 ohms, when used without an extension cabinet.
- Page 9 Clean Jazz Fusion Blues...
- Page 10 MIXER DESK FX UNIT Internal Speaker Set impedance switch to 8 Ohms when using the internal speaker Set impedance switch to 4 Ohms when using the internal speaker with an FS4-IRT 8 Ohm extension cabinet IRT112...
- Page 11 This product conforms to the requirements of the following European Regulations, Directives & Rules: CE Mark (93/68/EEC), Low Voltage 2006/95/EC, EMC (2004/108/EEC), RoHS (2011/65/EU), WEEE (2012/19/EU)
- Page 12 TUBE AMP TIPS Tube amplifiers generally sound much warmer/sweeter than solid state transistor amplifiers but they also need a little more respect due to the fragile glass tubes. Use the following steps as a guide for how to take care of your amplifier: Take care when moving the amplifier.
- Page 13 Equalisation Per chan nel: Passive Bass, Middle Treble with switchable Deep, Mid Shift & Treble Shift Master section: Dynamics & Ton e Footswitch Laney FS4-IRT (included): Chan nel, Clean, Reverb , Boost Loudspeaker Outputs 4-8 Ohms (swi tchable) Input Impedance...
- Page 14 WARNING: When using electrical products, basic cautions should always be followed, including the following: 1. Read these instructions. 2. Keep these instructions safe. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7.
