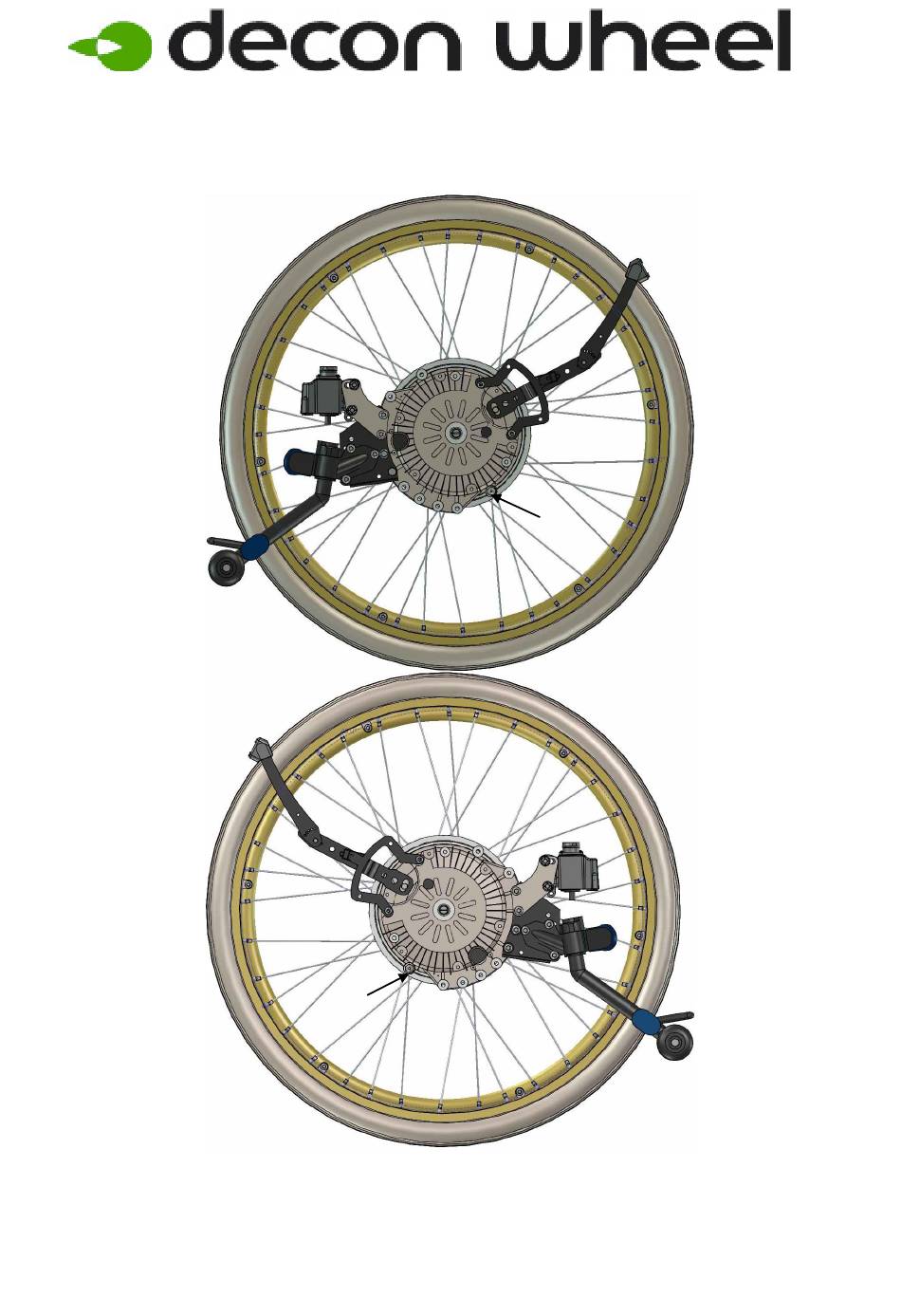

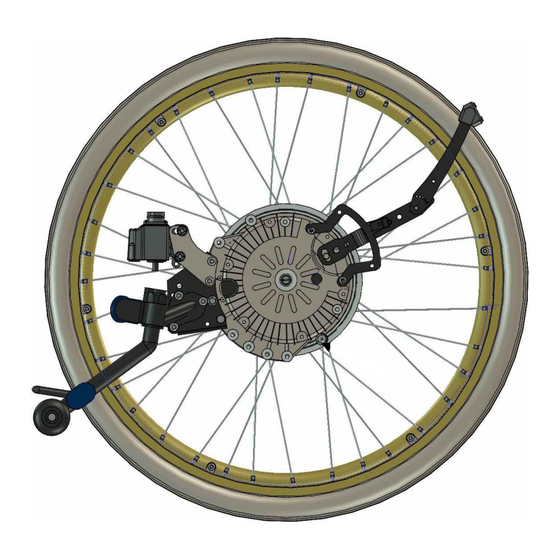

- Page 1 Assembly instructions for D200 MED3159 1. Remove wheels on both sides. 2. Remove adapter plates from the wheelchair. 3. Check the correct placement for the stop pin. 2023-08-17...
- Page 2 4. Assembly the bracket and brake spacer (right side) according to picture. Parts pair mounting set for right side: Item No. Part Number Description 405239 Nordlock Washer M16 HW069 Hubsleeve M16x1/12,7 XSM16M Nut M16X1 Low 100 400 017 Spacer MED2000 Bracket 100 400 004 Spacer...
- Page 3 Joystick Assemble MED1211 6. Assemble the joystick as the pictures above. Item No. Part Number Description MED1212R Joystick rightside plate D200 XSM6BR Washer Plain M6 XSM6X16 Screw Round M6 x 16 XSM6ML Nut Self-Locking M6 XSM6X12 Screw Round M6 x 12...
- Page 4 Assistant control Assembly MED1202 Item No. Part Number Description MED1200 Assistant controller 91312-06050 Screw Socket M6 x 50 92902-06200 Washer Plain M6 XA2-2612E-00 Clamp X0D-2612K-00 Clamp2 2023-08-17...
