  • Page 1 IoT Controller Featuring LoRaWAN ® UC300 User Guide...
  • Page 2 The device must never be subjected to shocks or impacts.  Declaration of Conformity UC300 is in conformity with the essential requirements and other relevant provisions of the CE, FCC, and RoHS. Copyright © 2011-2023 Milesight. All rights reserved. All information in this guide is protected by copyright law. Whereby, no organization or individual shall copy or reproduce the whole or part of this user guide by any means without written authorization from Xiamen Milesight IoT Co., Ltd.

  • Page 3: Table Of Contents

    4.3.4 RS485 .......................... 17 4.3.5 RS232 .......................... 20 4.3.6 Analog Input/PT100 ....................21 4.4 IF-THEN Command ....................... 21 4.5 Milesight D2D Settings ......................24 4.6 Data Storage .......................... 26 4.7 Data Retransmission ......................28 4.8 Maintenance .......................... 30 4.8.1 Upgrade ........................30 4.8.2 Backup .........................30...

  • Page 4: Product Introduction

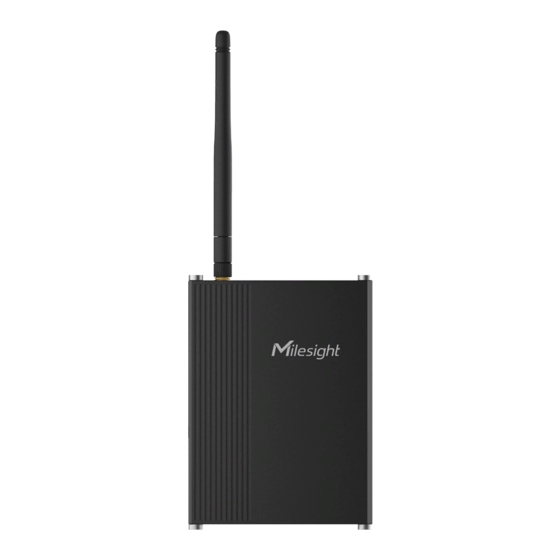

    1. Product Introduction 1.1 Overview UC300 is an IoT controller used for remote control and data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, relay outputs, serial ports and so on, which support remote device data transmission and control via LoRaWAN ®...

  • Page 5: Hardware Overview

    1 × Warranty Card If any of the above items is missing or damaged, please contact your sales representative. 2.2 Hardware Overview 2.3 Wiring Examples (1) Digital input wiring: Dry Contact: Wet Contact: (2) Relay output wiring:...
  • Page 6 (3) 4-20mA wiring: 3-Wire: 2-Wire: (4) 0-10V wiring: (5) PT100 wiring: 3-Wire: 2-Wire:...

  • Page 7: Led Indicators

    (6) RS232/RS485 wiring: RS485 Terminal Resistor DIP Switch Description 1 on 2 off 3 off Add 120 Ω resistor between A and B 1 off 2 on 3 off Add pull-down resistor on B 1 off 2 off 3 on Add pull-up resistor on A 2.4 LED Indicators Indication...

  • Page 8: Dimensions (Mm)

    The external antenna should be installed vertically always on a site with a good signal. 3.2 Device Installation UC300 device can be placed on a desktop or mounted to a wall or a DIN rail. 3.3.1 Wall Mounting 1. Fix the wall mounting bracket to the device with 2 screws.

  • Page 9: Din Rail Mounting

    2. Drill 4 holes on the wall according to the bracket, then fix the wall plugs into the wall. 3. Fix the device to the wall plugs with screws. When installation, it’s suggested to fix the two screws on the top at first. 3.3.2 DIN Rail Mounting 1.

  • Page 10: Operation Guide

    4.1 Log in the ToolBox 1. Download ToolBox software from Milesight IoT website. 2. Power on the UC300 device, then connect it to computer via type-C port. 3. Open the ToolBox and select type as General, then click password to log in ToolBox. (Default password: 123456) 4.

  • Page 11: Lorawan Settings

    4.2 LoRaWAN Settings LoRaWAN settings is used for configuring the transmission parameters in LoRaWAN network. ® Basic LoRaWAN Settings: Go to LoRaWAN Settings > Basic to configure join type, App EUI, App Key and other information. You can also keep all settings by default.
  • Page 12 Parameters Description Device EUI Unique ID of the device on the label. App EUI Default App EUI is 24E124C0002A0001. The port used for sending and receiving data (RS232 data excluded), default Application Port port is 85. Join Type OTAA and ABP modes are available. LoRaWAN Version V1.0.2, V1.0.3 are available.
  • Page 13 1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchasing. 3) Select OTAA mode if you use Milesight IoT Cloud to manage devices. 4) Only OTAA mode supports rejoin mode.
  • Page 14 If frequency is one of CN470/AU915/US915, you can enter the index of the channel that you want to enable in the input box, making them separated by commas. Examples: 1, 40: Enabling Channel 1 and Channel 40 1-40: Enabling Channel 1 to Channel 40 1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60 All: Enabling all channels Null: Indicates that all channels are disabled...

  • Page 15: Data Interface Settings

    Change the password to loggin ToolBox. 4.3.2 Digital Input/Pulse Counter UC300 supports 4 digital inputs and every input can work as either digital input mode to detect high/low level or pulse counter to record counting values. When working as digital input, UC300...
  • Page 16 Counter Digital Filter It’s recommended to enable when pulse period is greater than 250 us. Click to start/stop counting. Note that UC300 will send non-changeable Start/Stop counting values if you do not click Start. Refresh Refresh to get latest counter values.

  • Page 17: Digital Output

    Click to change the DO status. 4.3.4 RS485 UC300 has one RS485 port to support Modbus RTU or transparent device connection . 1. Connect RS485 device to RS485 port. 2. Go to General > RS485 to enable RS485 and configure serial port settings. Serial port settings...
  • Page 18 The execution interval between each Modbus channel command. (ms) The maximum response time that the UC300 waits for the reply to the Max Resp Time command. If it does not get a response after the max response time, it is (ms) determined that the command has timed out.
  • Page 19 Sign The tick indicates that the value has a plus or minus sign. After click, UC300 will send Modbus read command to test if it can read correct values. Example: the device will send command as below setting: 01 03 00 00 00 01...

  • Page 20: Rs232

    Do not click Fetch frequently since response time to reply is differ for every terminal device. 4.3.5 RS232 UC300 has one RS232 interface for transparent communication. Usually it will use different tunnels from other data interfaces to communicate with server. Parameters...

  • Page 21: Analog Input/Pt100

    4.3.6 Analog Input/PT100 UC300 has two 4-20mA analog inputs, two 0-10V analog inputs and two PT100 inputs for analog device connection. After wirings, you can click Fetch to check if the value is correct. PT100 Note: 1) The temperature unit in the reporting package is fixed as °C.
  • Page 22 2. Set a IF condition based on the terminal device data or UC300 device status. Users can add at most 2 conditions in one command. Condition Description Time Set the time condition. You can sync the time manually on Status page.
  • Page 23 The device works as a D2D controller device to send a D2D control command command. See details on chapter 4.5. Send a Modbus This only works when UC300 works as D2D agent device. See details on command via chapter 4.5.

  • Page 24: Milesight D2D Settings

    Milesight D2D protocol is developed by Milesight and used for setting up transmission among Milesight devices without gateway. When the D2D setting is enabled, UC300 can work as a Milesight D2D controller to send control commands to other devices or work as a Milesight D2D agent to receive commands to trigger the DO or RS485 devices.
  • Page 25 When DI triggers, UC300 can work as D2D controller to send control command to control the D2D agent device. The command should be a 2-byte hexadecimal number. When UC300 receives a D2D command, it can work as a D2D agent to trigger the DO, restart the device or send Modbus command to RS485 terminal devices.

  • Page 26: Data Storage

    4.6 Data Storage UC300 supports storing 1,000 data records locally and export data via ToolBox. The device will record the data according to reporting interval even not joining to network. 1. Go to Status page to click Sync to sync the device time.
  • Page 27 2. Go to General > Basic to enable data storage feature. 3. Go to Maintenance > Backup and Reset , click Export to select the data time period and click Save to export data.

  • Page 28: Data Retransmission

    4. Click Clear to clear all stored data inside the device if necessary. 4.7 Data Retransmission UC300 supports data retransmission to ensure the network server can get all data even if network is down for some times. There are two ways to get the lost data: Network server sends downlink commands to enquire the historical data for specifying time ...
  • Page 29 2) If the network is disconnected again during data retransmission, it will only send the latest disconnection data. 3) UC300 supports to send downlink commands to enquire the historical data for specifying time range, refer to UC300 LoRaWAN Communication Protocol .

  • Page 30: Maintenance

    Note: Any operation on ToolBox is not allowed during upgrading, otherwise the upgrading will be interrupted, or even the device will break down. 4.8.2 Backup UC300 devices support configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRaWAN ®...

  • Page 31: Reset To Factory Default

    4.8.3 Reset to Factory Default Please select one of following methods to reset device: Via Hardware: Open the case of UC300, hold on the reset button for more than 10s until SYS LED blinks. Via ToolBox Software: Go to Maintenance > Backup and Reset to click Reset.
