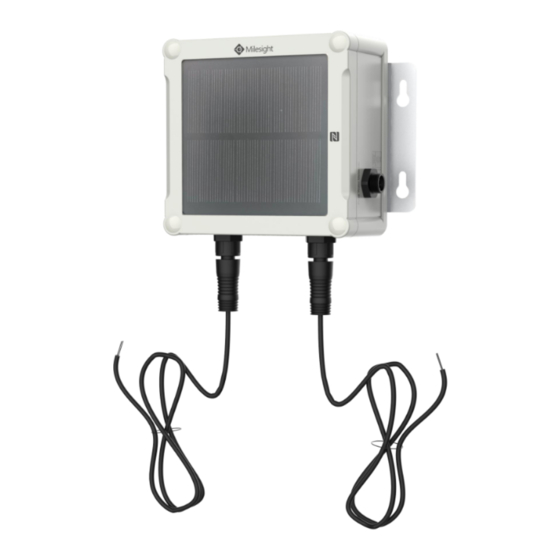

Milesight UC51 Series User Manual

Solenoid valve controller
Hide thumbs Also See for UC51 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
LoRaWAN
Solenoid
®
Valve Controller
UC51x Series
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC51 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Milesight UC51 Series

Summary of Contents for Milesight UC51 Series

  • Page 1 LoRaWAN Solenoid ® Valve Controller UC51x Series User Guide...
  • Page 2 Safety Precautions Milesight will not shoulder responsibility for any loss or damage resulting from not following the instructions of this operating guide. The device must not be remodeled in any way.  Do not place the device close to objects with naked flames.

  • Page 3: Table Of Contents

    3.3 LoRaWAN Settings..........................9 3.4 Solenoid Settings.......................... 11 3.5 Maintenance..........................13 3.5.1 Upgrade..........................13 3.5.2 Backup..........................14 3.5.3 Reset to Factory Default....................15 4. Installation..............................16 5. Milesight IoT Cloud Management......................17 5.1 Add UC51x to Cloud........................17 5.2 Solenoid Valve Control.........................19 6. Device Payload............................21...

  • Page 4: Product Introduction

    Waterproof design including IP67 case and M12 connectors  Solar powered and built-in chargeable battery  Quick wireless configuration via NFC  Time and flow control via Milesight IoT Cloud  2. Hardware Introduction 2.1 Packing List 1 × UC51x 2 × Data Cables 1 ×...

  • Page 5: Hardware Overview

    2.2 Hardware Overview UC511 UC512 Interface 1&2: Description DC+/OUT1(Red) DC-/OUT2 (Black) INSERT BOOT* GPIO * Please refer to “Solenoid Valve Wiring Switch” item in section 3.4. 2.3 Power Button Function Action LED Indication Turn On Press and hold the button for more than 3s. Off →...

  • Page 6: Dimensions

    3.1.1 NFC Configuration 1. Download and install “Milesight ToolBox” App from Google Play or Apple App Store. 2. Enable NFC on the smartphone and launch Milesight ToolBox. 3. Attach the smartphone with NFC area to the device to read basic information.

  • Page 7: Usb Configuration

    3) UC51x series can also be configured by dedicated NFC reader, which can be purchased from Milesight IoT. 3.1.2 USB Configuration 1. Download ToolBox from Milesight IoT website. 2. Open the case of UC51x and connect the UC51x to computer via type-C port.

  • Page 8: Solenoid Valve Control

    3.2 Solenoid Valve Control Solenoid valve can be controlled by ToolBox App or ToolBox software locally. Via ToolBox Software: Click “Open” or “Close” button on the “Status” page to change the status of solenoid valves. Via ToolBox App: Click buttons of Valve Status on the “Device -> Status” page, then attach the smart phone to device to change the status of solenoid valves.

  • Page 9: Lorawan Settings

    3.3 LoRaWAN Settings LoRaWAN settings is used for configuring the transmission parameters in LoRaWAN ® network. Step 1: Go to “LoRaWAN -> Basic” of ToolBox software or “Setting -> LoRaWAN Settings” of ToolBox App to configure join type, App EUI, App Key and other information. You can also keep all settings by default.
  • Page 10 1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT cloud to manage devices. 4) Only OTAA mode supports rejoin mode.

  • Page 11: Solenoid Settings

    1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60 All: Enabling all channels Null: Indicates that all channels are disabled Note: For -868M model, default frequency is EU868; For -915M model, default frequency is AU915. 3.4 Solenoid Settings Go to “General ->...
  • Page 12 Change the password for ToolBox App or software to read/write this Change Password device. Note: 1) When device connects to network server of Milesight gateway, the blank package will take up the frame count but not show on the package list. 2) Reboot or re-join will not affect the counting.

  • Page 13: Maintenance

    3.5.1 Upgrade ToolBox Software: 1. Download firmware from www.milesight-iot.com to your PC. 2. Go to “Maintenance -> Upgrade” of ToolBox software, click “Browse” to import firmware and upgrade the device. You can also click “Up to Date” to search for the latest firmware of the device and upgrade.

  • Page 14: Backup

    3.5.2 Backup UC51x devices support configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRa frequency band. Please select one of following methods to backup device: ToolBox Software: 1.

  • Page 15: Reset To Factory Default

    3.5.3 Reset to Factory Default Please select one of following methods to reset device: Via Hardware: Open the case of UC51x and hold on power button more than 10s. Via ToolBox Software: Go to “Maintenance -> Backup and Reset” to click “Reset”. Via ToolBox App: Go to “Device ->...

  • Page 16: Installation

    4. Installation UC51x series support wall mounting or pole mounting. Before installation, make sure you have the mounting bracket, wall or pole mounting kits and other required tools. Wall Mounting: 1. Fix the wall plugs into the wall, then fix the mounting bracket to the wall plugs with screws. 2.

  • Page 17: Milesight Iot Cloud Management

    5. Milesight IoT Cloud Management UC51x series can be managed by Milesight IoT Cloud platform. Milesight IoT cloud is a comprehensive platform that provides multiple services including device remote management and data visualization with the easiest operation procedures. Please register a Milesight IoT Cloud account before operating following steps.
  • Page 18 3. Click and go to “Basic Settings” to change class type the same as device settings. Besides, configure the unit of per pulse if you connect the water meter. 4. Click and go to “Interface Settings” to select used interfaces and customize the name and thresholds.

  • Page 19: Solenoid Valve Control

    5.2 Solenoid Valve Control Solenoid valve can be controlled by Milesight IoT cloud webpage or App. 1. Click to open the solenoid valve and configure the duration. You can also add a switch on the dashboard to control the status of solenoid valves.
  • Page 20 Note: If the working mode of UC51x is LoRaWAN Class A, control commands will delay until the time icon disappear. 2. Go to “Triggers” page to add actions to trigger the solenoid valve to open for a period of time or a specific volume of water.

  • Page 21: Device Payload

    6. Device Payload UC51x Series use the standard Milesight IoT payload format based on IPSO. Please refer to the UC51x Series Communication Protocol; for decoders of Milesight IoT products please click here. -END-...

This manual is also suitable for:

Uc511-di-915m
