Milesight UC300 Quick Start Manual

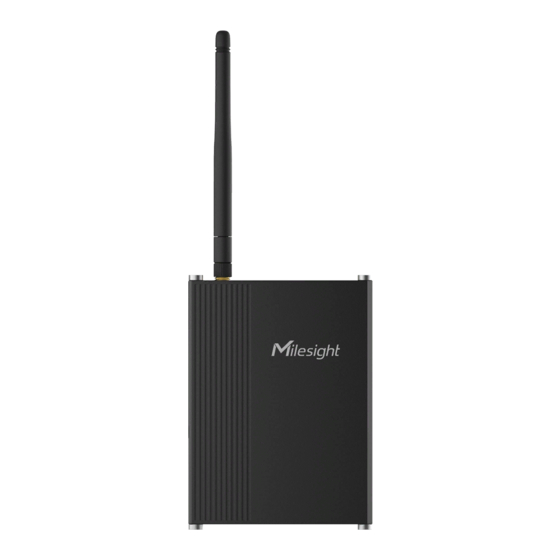

UC300
SMART IoT CONTROLLER
1. Packing List
1 x UC300 Device 1 × LoRa/Cellular
Antenna
5 × Terminal Blocks 1 × DIN Rail
Mounting Clip
4 × Wall Mounting 4 × Fixing Screws 1 × Quick Start Guide
Kits
Type-C Console Port
LED Indicator
DO DI
PT100
0-10V
4-20mA
RS485
RS232
DC Power Interface
3. LED Patterns
LED
Reset to factory default: hold the reset button
inside the device for more than 10 seconds
1 × Power Adapter SYS
Fail to acquire data from data interfaces
Succeed to join/register to network
1 × Wall Mounting
ACT
Bracket
4. SIM Installation (Cellular Version)
1 × Warranty Card
Release the screws and cover on the antenna connector, insert the SIM
card into the slot. If you want to take out the SIM card, press it to make
it pop out.
Antenna
Connector
Device Status Description
System works Static On
Static On → Quickly Blinks
Slowly Blinks
System error Static On
Send join network requests Blinks as Requests
Blinks Twice → Static On
Succeed to send uplinks Blinks Once
Fail to send uplinks Blinks Twice
Receive downlinks Blinks Twice
