Setting the temperature control mode

When using an external PT1000 temperature sensor, the user can
choose between two types of control:
PI mode
Good control results, minimised overshooting, slow rise in tempe-
rature.
2P mod (two-point controller)
Maximum heating rate, increased overshooting
Factory setting: PI mode
Changing the temperature control mode
1. Set target temperature to 2 °C
2. Switch off device
3. Hold down temp knob
4. Switch on device
This activates or deactivates the two-point controller (2P) for the
external PT 1000 temperature sensor (2P appears on the display).
When switching on the device, 2P is also displayed next to the
operating mode A/B when the two-point controller is activated.
When the heating function is active in 2P mode, (with external PT
1000 temperature sensor) the actual temperature flashes - that
notifies the user that the process temperature has been greatly
overshot!

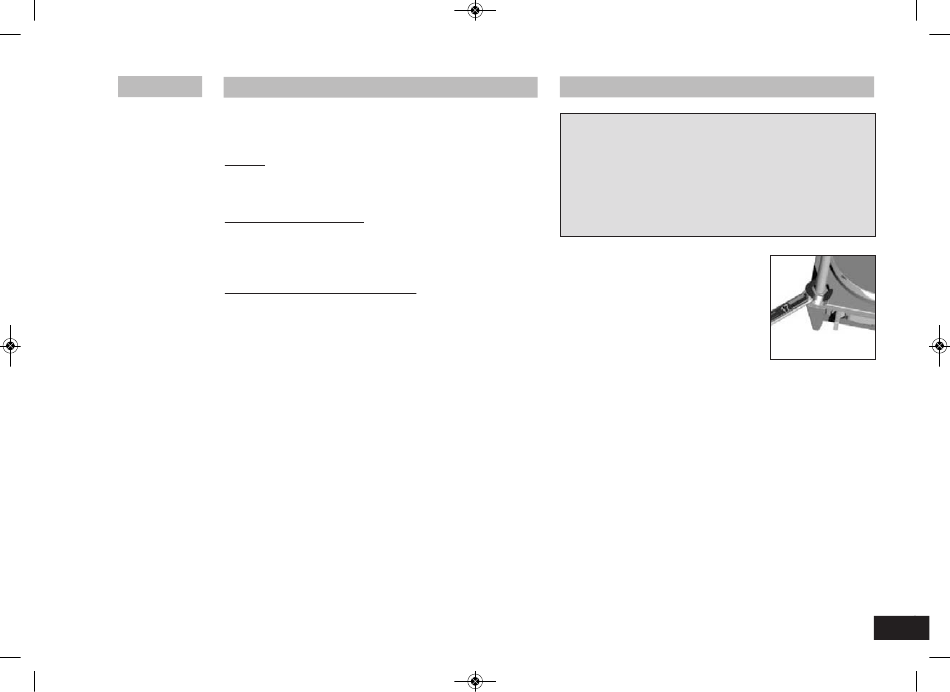

Assembling the stand

+ Remove screw plugs (M)
+ Remove the protective cap from the support rod
+ Put the washer between housing and nut
+ Screw the support rod onto the device by hand until the end
stop is reached
+ Use an A/f 17 spanner to tighten the M10 nut
+ Accessories should be attached using cross sleeves
Note: For bath attachments with diameters
greater than  180 mm only use the sup-
port rod H 16 V with the extension H 16.1. Fig. 6
