System Startup - Hayward OmniLogic HLEXPAND Owner's Manual

Before powering up the HLEXPAND, check the following and then replace the deadfront panel:
•
Properly rated circuit breakers are installed in the HLEXPAND subpanel.
•
All wiring is performed according to NEC and local codes.
•
The HLEXPAND is properly grounded and bonded.
NOTE: The OmniLogic deletes programmed Themes when new hardware is discovered. If the OmniLogic has already been in service before adding the HLEX-
PAND, any programmed Themes will be lost at startup. You'll need to reprogram Themes after configuring the OmniLogic for use with the HLEXPAND.

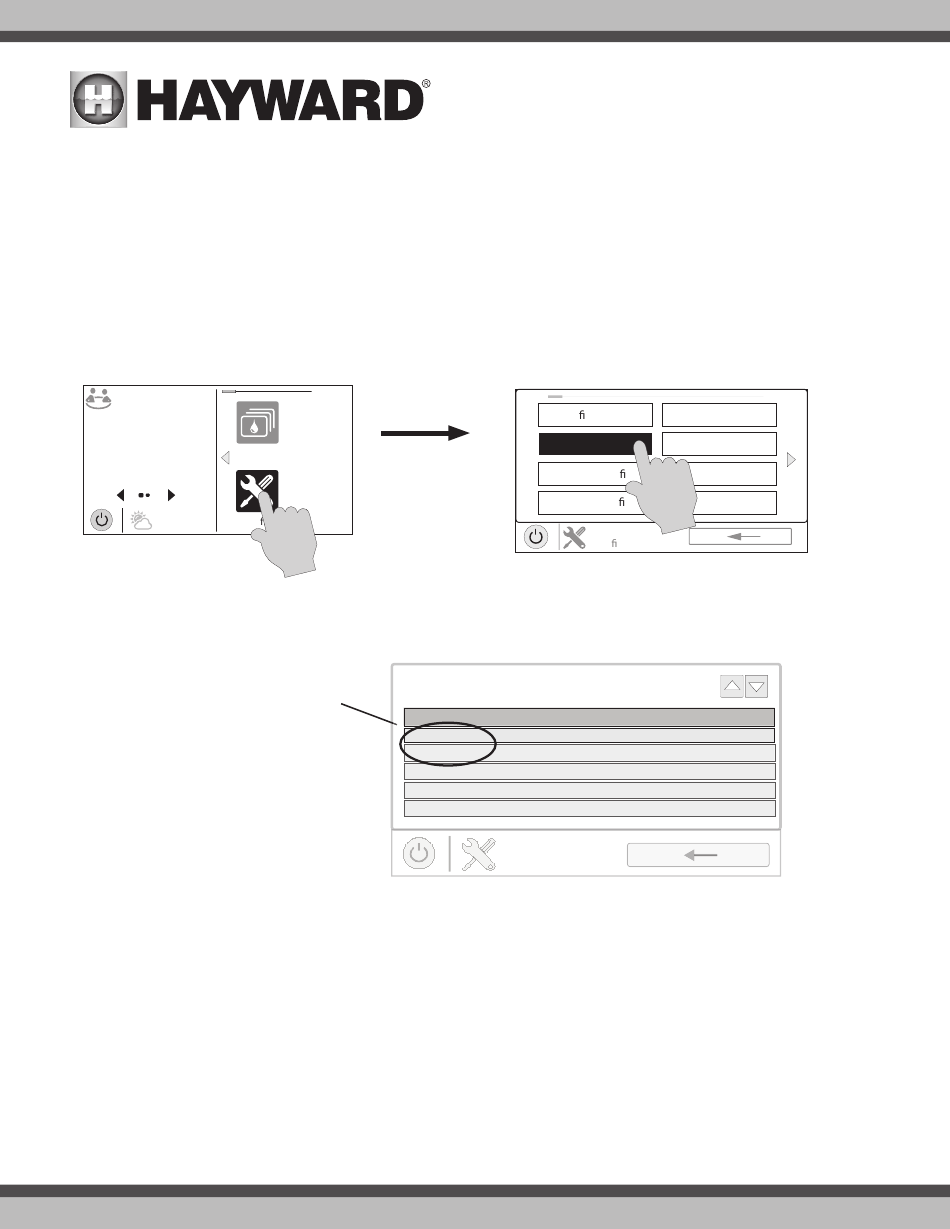

Power up the OmniLogic HLBASE and HLEXPAND. At the local terminal, confirm that the OmniLogic has discovered the HLEXPAND in "System Info" as shown
below:
SPA
90
F
º
71º F
air
"EPGxxx" entries confirm that the
OmniLogic is communicating with
the Expansion Panel. If these
entries are not found, review your
installation for errors starting at the
beginning.
Firmware Upgrade
After communication is confirmed, the firmware on both units should be updated (even if the OmniLogic has been in service). Firmware is the basic operating
system and both the OmniLogic and HLEXPAND were shipped with versions of firmware that were available at the time of release. There may be a newer version
available and if so, we encourage you to upgrade. Also, if you have experienced problems, Hayward Technical Support may advise you to upgrade your firmware.
The procedure for upgrading firmware when using an HLEXPAND is to upgrade the OmniLogic first, then upgrade the HLEXPAND. Any wired or wireless remote
controls should also be upgraded. For instructions on how to upgrade firmware, refer to the procedure shown in the OmniLogic Operation Manual.

System Startup

themes
con g
EcoStar pump
EcoStar pump
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
con g wizard
system info
backup con g
restore con g
SYSTEM
con guration
msp id:3233
component HUA
EPG0MP 01-46-01-12-75
EPG0RB 01-46-01-80-26
Relays 3-10-0-0-1
10-0-0-0-4e
10-0-0-0-54
SYSTEM INFO
1 / 2
display
network
web server
date/time
version
R.2.3.0
R.2.3.0
R.1.0.4
R.3.0.4
R.3.0.4
