HAYWARD
2100 SERIES
POOL SYSTEM CONTROL
CONSUMER OPERATING INSTRUCTIONS
operation and performance for remote pool system control.
Easy to use master remote control allows you to monitor, set
and control up to 12 functions necessary for total pool system
control as well as pool environment control.
Manufactured under the following U.S. patents: 618797, 5332944, 5361215, 5550753, 5559720.
Other patents, both foreign and domestic, applied for and pending.
IMPORTANT SAFETY INSTRUCTIONS..................................................................................................2
BUTTON FUNCTIONS FOR MASTER CONTROL PANEL ................................................................3
BUTTON FUNCTIONS FOR SPA SIDE CONTROL PANEL................................................................3
WIRELESS REMOTE OPERATION..........................................................................................................4
BASIC PROGRAMMING OF MASTER CONTROL PANEL ................................................................5
TROUBLESHOOTING ................................................................................................................................7
SAVE THESE INSTRUCTIONS
®
Designed and engineered for
todays carefree lifestyle, this 2100
series sets new standards of ease of
TABLE OF CONTENTS
LISTED
SWIMMING POOL AND
SPA CONTROL
3Z62
ISPSC CONSUMER-2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hayward 2100 Series
Summary of Contents for Hayward 2100 Series
-
Page 1: Table Of Contents

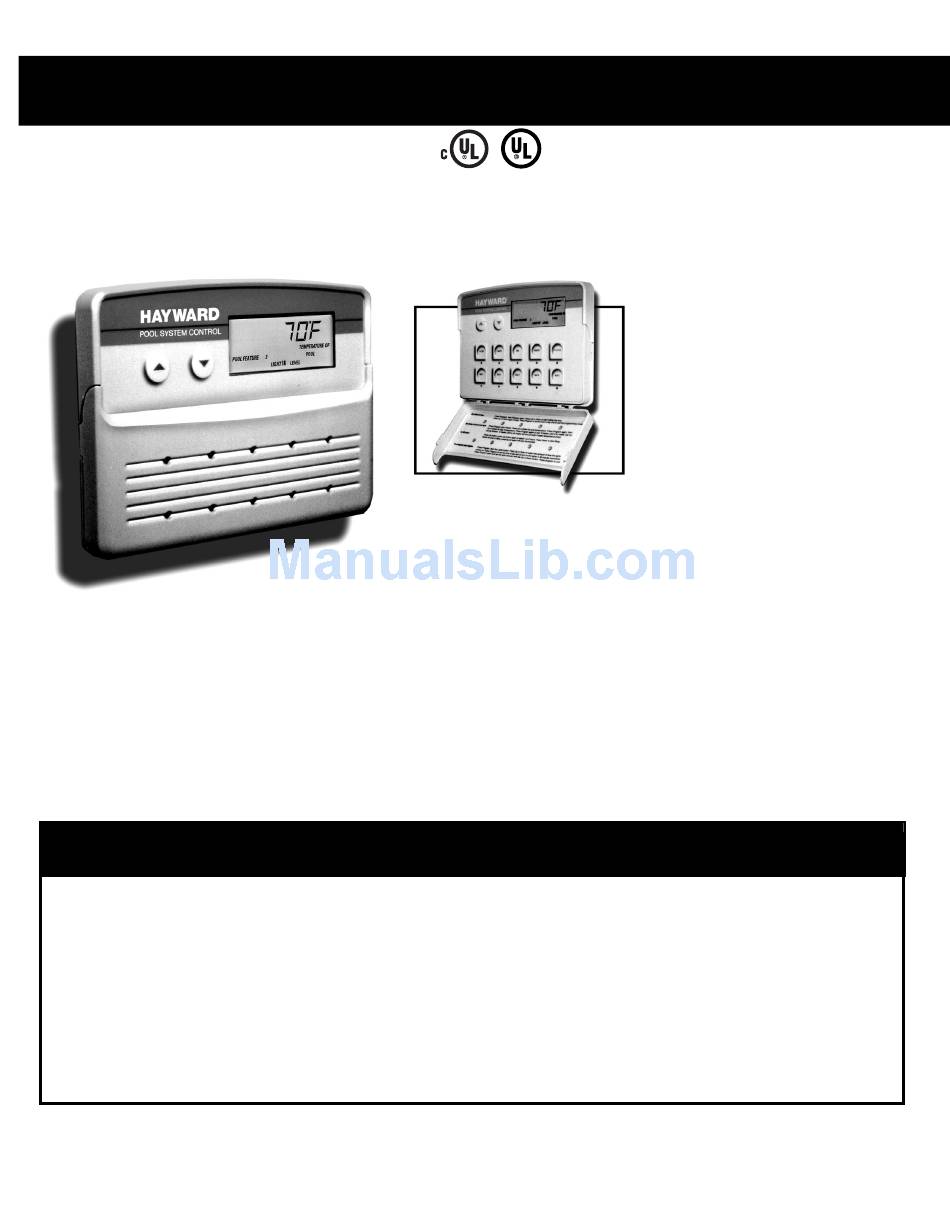

HAYWARD ® 2100 SERIES LISTED SWIMMING POOL AND SPA CONTROL 3Z62 POOL SYSTEM CONTROL CONSUMER OPERATING INSTRUCTIONS Designed and engineered for todays carefree lifestyle, this 2100 series sets new standards of ease of operation and performance for remote pool system control. -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WHEN USING THIS ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD BE FOLLOWED, INCLUDING THE FOLLOWING: FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN INJURY. READ AND FOLLOW ALL INSTRUCTIONS 1. DANGER - Risk of electric shock. Do not permit any electrical appliance such as a light, telephone, radio, or television within 5 feet (1.5M) of a pool or spa. -
Page 3: Button Functions For Master Control Panel
BUTTON FUNCTIONS FOR MASTER CONTROL PANEL & SPA SIDE CONTROL PANEL MASTER CONTROL PANEL BASIC FUNCTION BUTTONS UP BUTTON- Used in conjunction with Program AUXILIARY 1 - 6A max button for many automatic settings, including fill A. Turns the pool feature on and off. Will not valve operation (if installed). -
Page 4: Wireless Remote Operation
The 1st press turns the light on. The 2nd press turns the light off; 12 hour timeout. RF MASTER PANEL Refer to the Master Control Panel basic function button operation instructions in your Hayward Operating Instructions or User’s Guide. To TURN ON the remote panel, push the TEMP DOWN button. -
Page 5: Basic Programming Of Master Control Panel
4. Push Program again to enable heater during the filter cycle. Press Up or Down to select on or off. NOTE: If a solar panel is being used for pool heating purposes, Hayward suggests: A) Leaving Heat Seek off (see page 39);... - Page 6 BASIC PROGRAMMING OF MASTER CONTROL PANEL (continued) TO PROGRAM POOL AND SPA SET TEMPERATURE: 1. Push Program button, display will blank out with the exception of the “SET” icon. 2. Push Heater button and display will show current desired set temperature of spa. Display will show “SET TEMPERATURE OF SPA.”...
-
Page 7: Troubleshooting
NO ACTION REQUIRED. OH message will appear if the water in the pipes does GREAT THAN 110° not cool to below 110° within 5 minutes. Hayward Pool Products Worldwide Locations Hayward Corporate Headquarters Hayward Pool Products Canada, Inc. Hayward Iberica S.A.
