Electrical Wiring

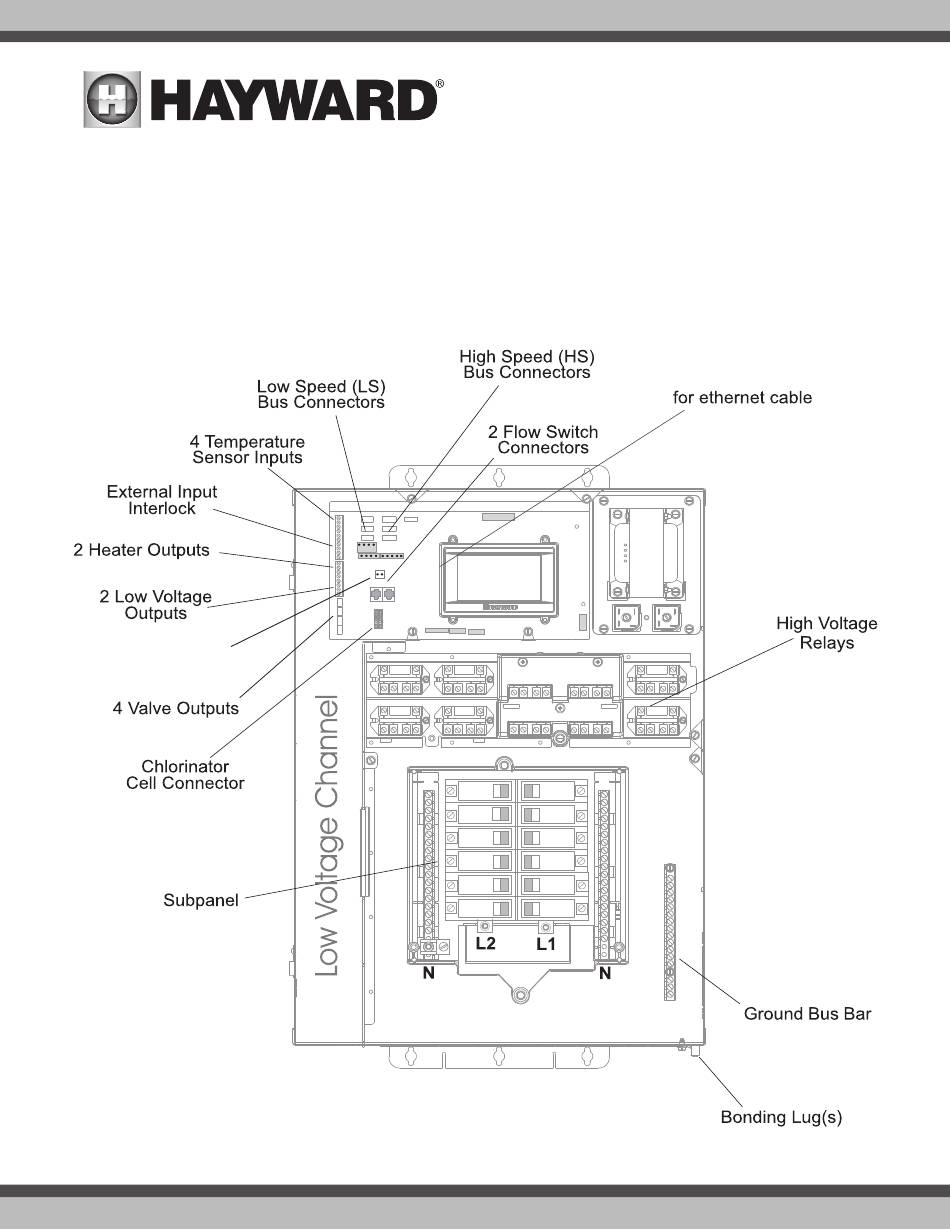

The Expansion Panel requires both high and low voltage connections. Low voltage connections will be made to actuators, sensors, etc. High voltage connections
will be made to pumps, lights, etc., as well as providing direct input power to the HLEXPAND. Always:
-Ensure that Power is disconnected prior to performing any wiring
-Follow all local and NEC (CEC if applicable) codes
-Use copper conductors only
-Remove power to the HLEXPAND subpanel before removing the deadfront
Two RJ-45 Connectors
HLWLAN Power
5 8
1 4 9
6 7
2
3 10
6
