Hayward OmniLogic HLEXPAND Owner's Manual page 18

Ethernet Connections

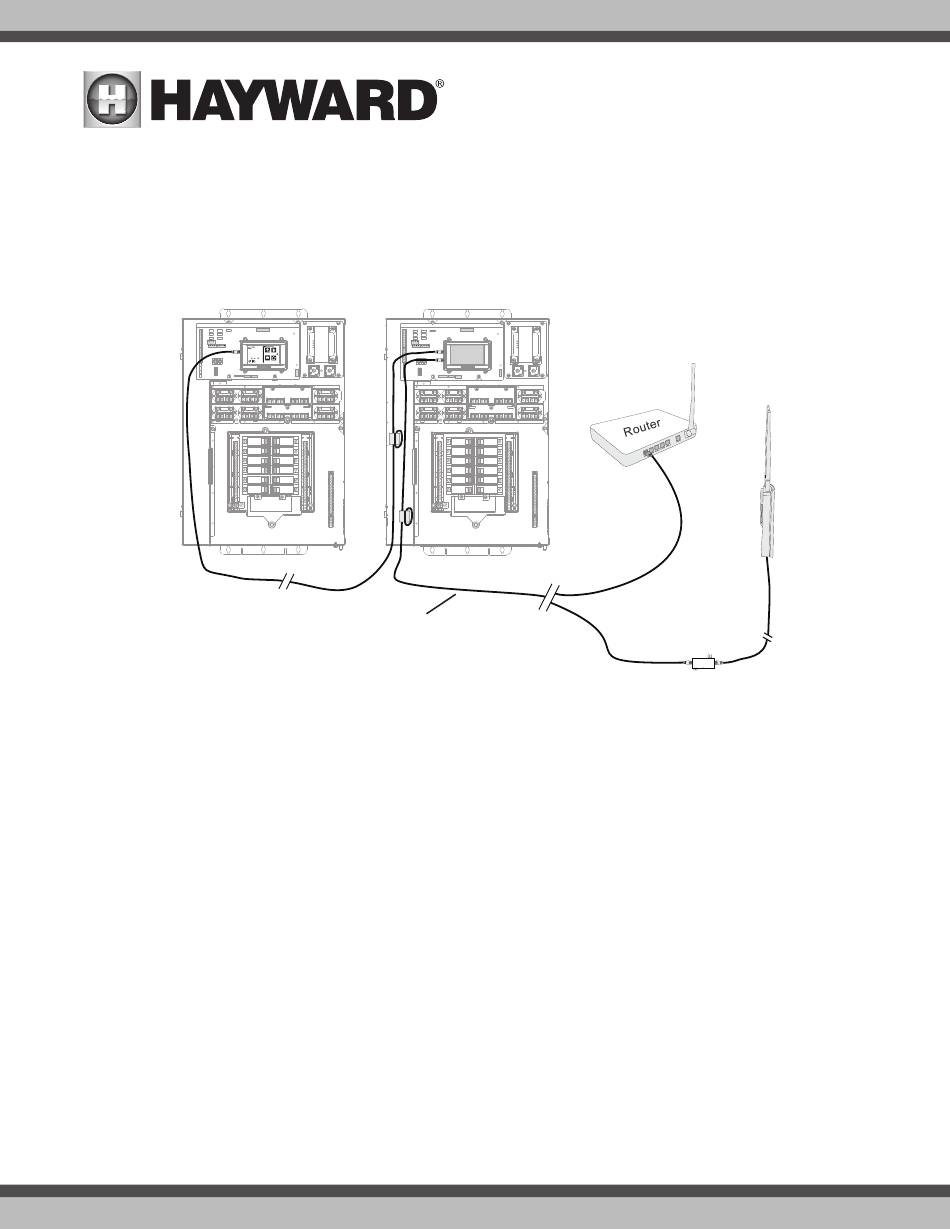

Connect the supplied 15 ft. Ethernet cable from the HLEXPAND to the OmniLogic. Loop the cable through the supplied ferrite bead as shown below.
If web enabled devices such as a PC, laptop, tablet or phone will be used to access the OmniLogic, an Ethernet connection must also be made to the home
router. Use outdoor rated Cat5e or Cat6 Ethernet cable and run a loop through the additional ferrite bead as shown in the diagram. Connect one end to the
HLEXPAND and the other to an available LAN port (not WAN) on the home router. If running Ethernet cable between the HLEXPAND and home router is impracti-
cal, a Hayward HLWLAN can make a wireless connection to the home router instead (see below).
OmniLogic (master)
Flow Switch
The flow switch cable plugs into the flow switch connector on the Main Board as shown on page 6. Ensure that the connector catch "snaps" in order to provide
a reliable connection.
TurboCell
Only applicable if the chlorinator function is enabled for an additional body of water. The TurboCell should be plugged in AFTER the HLEXPAND deadfront panel
is installed. Refer to page 6 for the location of the chlorinator cell connector.
HLIOEXPAND
The HLIOEXPAND is design to slide between guide rails and insert into a dedicated slot on the HLEXPAND Main Board. At startup, the HLEXPAND will discover
the HLIOEXPAND and its inputs/outputs can be configured within the OmniLogic's Configuration Wizard. Refer to the HLIOEXPANDER manual for specific
installation instructions.
HLRELAYBANK
Offering four additional high voltage relays, the HLRELAYBANK is a relay kit accessory designed to install next to the four onboard relays in the HLEXPAND (see
page 8). After installing the HLRELAYBANK, a wire connection must be made at the HLEXPAND Main Board. At startup, the OmniLogic will detect the HLEXPAND's
HLRELAYBANK and allow the user to configure the additional relays in the Configuration Wizard. Refer to the HLRELAYBANK manual for installation instructions.
HLRELAY
The HLRELAY is a single high voltage relay designed to be mounted in the #9 and/or #10 positions (page 8). After installing the HLRELAY, a wire connection
must be made at the HLEXPAND Main Board. At startup, the OmniLogic will detect the HLRELAY and allow the user to configure the additional relay(s) in the
Configuration Wizard. Refer to the HLRELAY manual for installation instructions.
HLWLAN
The HLWLAN can be mounted up to 25 ft. away from the HLEXPAND and requires an Ethernet connection to the HLEXPAND as well as a power connection to
the HLEXPAND Main Board. Refer to the HLWLAN manual for detailed installation instructions.
14
82
F º
alarm lights
71º F daylight favorites
air
15 ft. supplied Ethernet cable
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
HLEXPAND
OR
HLWLAN
EnGenius
LAN PoE
