Connection Table
The HLEXPAND includes 4 high voltage relays, 4 low voltage/heater relays, 4 valve outputs and 4 temperature sensor inputs. Additional relays and inputs/
outputs can be added using an HLRELAYBANK, HLIOEXPAND or HLRELAY(s) (see Accessories) . When wiring pool equipment to the HLEXPAND, keep a record

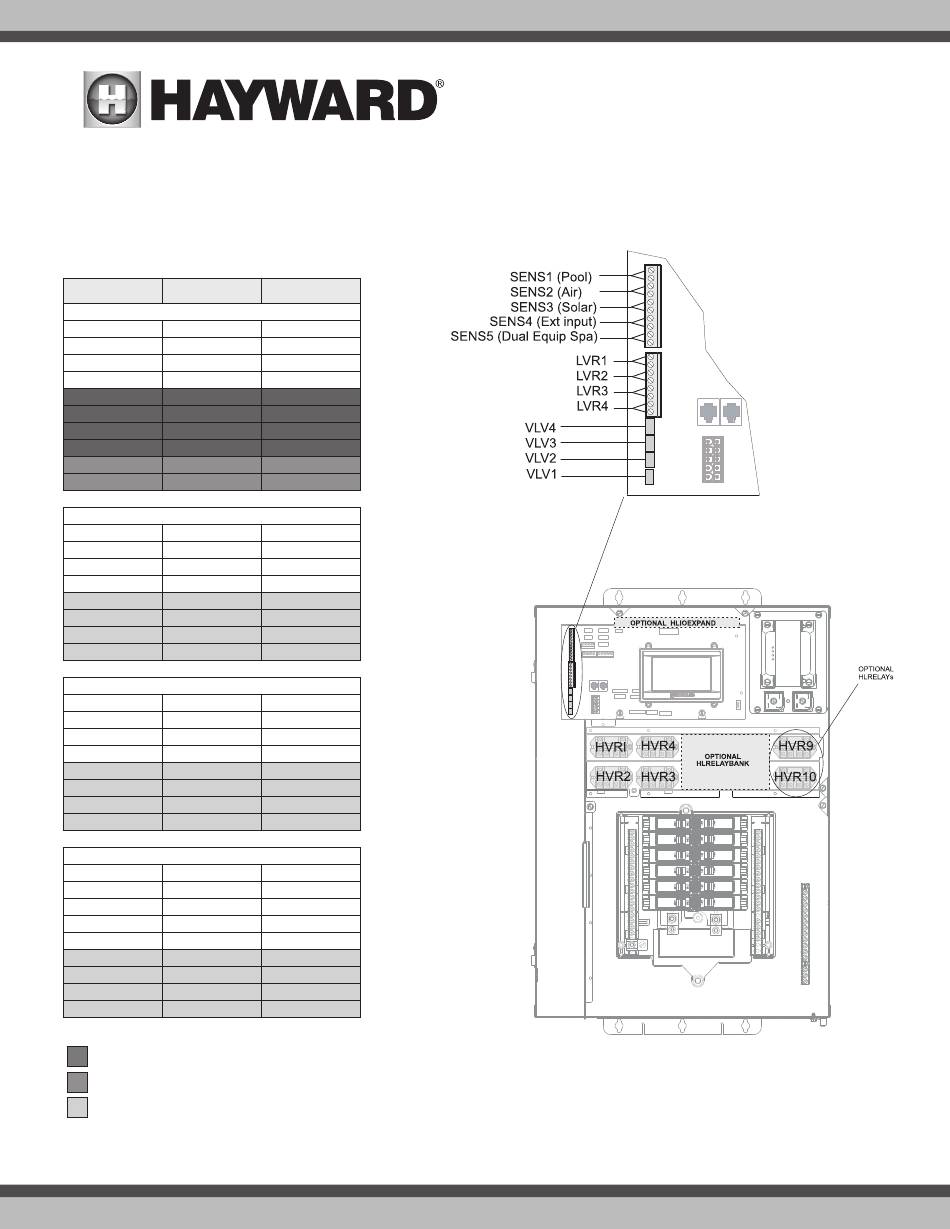

of all connections, just as you did with the HLBASE. To aid in this process, use the table below. To identify the various inputs/outputs, refer to the diagram on
the side of the table. After attaching equipment to the HLEXPAND, fill in the appropriate information in the table.
Connection Table
Connection Pool Equipment
High Voltage Relays
EPG0.MP.HVR1
EPG0.MP.HVR2
EPG0.MP.HVR3
EPG0.MP.HVR4
EPG0.RB.HVR5
EPG0.RB.HVR6
EPG0.RB.HVR7
EPG0.RB.HVR8
EPG0.MP.HVR9
EPG0.MP.HVR10
Low Voltage Relays/Heaters
EPG0.MP.LVR1
EPG0.MP.LVR2
EPG0.MP.LVR3
EPG0.MP.LVR4
EPG0.IO Expander.LVR1
EPG0.IO Expander.LVR2
EPG0.IO Expander.LVR3
EPG0.IO Expander.LVR4
Valve Acutators
EPG0.MP.VLV1
EPG0.MP.VLV2
EPG0.MP.VLV3
EPG0.MP.VLV4
EPG0.IO Expander.VLV1
EPG0.IO Expander.VLV2
EPG0.IO Expander.VLV3
EPG0.IO Expander.VLV4
Temperature Sensors
EPG0.MP.SENS1 POOL
EPG0.MP.SENS2 AIR
EPG0.MP.SENS3 SOLAR
EPG0.MP.SENSE4 EXT
EPG0.MP.SENS5 DE SPA
EPG0.IO Expander.SENS1
EPG0.IO Expander.SENS2
EPG0.IO Expander.SENS3
EPG0.IO Expander.SENS4
When using Optional HLRELAYBANK
When using Optional HLRELAY(s)
When using Optional HLIOEXPAND
8
Description
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
HVR8
HVR5
HVR7
HVR6
