GENERAL INFORMATION
When a pipe cover is installed it will conceal 400mm of pipework. For longer pipe runs, pipe covers can be joined to
one another, with each additional pipe cover extending the amount of concealment by a further 400mm.
The pipe covers in this manual are designed to fit specific Rinnai Continuous Flow Water Heater models. Ensure the
correct pipe cover is being installed by confirming the model number against that found on the appliance data plate.
PC 11 / PC11D
REU-VR2626WG †
Infinity 26
REU-VR2024WG †
Infinity 20
REU-VR1620WG †
Infinity 16
REU-VRM2626WG †
Infinity 26
REU-VRM2024WG †
Infinity 20
REU-VRM1620WG †
Infinity 16
B26
REU-A2626WB & REU-VR2626WB
B20
REU-A2024WB & REU-VR2024WB
B16
REU-A1620WB & REU-VR1620WB
S26
REU-A2626WS & REU-VR2426WS
S20
REU-A1620WS & REU-VR1620WS
*
PC11D = Dune colour, all other water heater models are white.
# Pipe cover is not available in the HD water heater model colour.
NOTE
† Installations may require additional drilling and fixings.
INSTALLATION METHOD
A
B
1. Install water heater and connections, then remove screws (A) from the lower side panels of the water heater.
For models where the casing screws are not fitted, refer to "Installation Method - Installer
Supplied Casing Screws" on page 2.
NOTE
2. With the pipe cover held in the installed position, mark the location of the wall bracket securing holes (B).
3. Secure the wall bracket with suitable fixings at the location marked in step 2.
4. Secure pipe cover to water heater with the screws (A) removed in step 2
5. Secure pipe cover to wall bracket (C) with screws provided, use elongated holes to keep components square.
6. Fit the front panel to complete the installation.
Rinnai

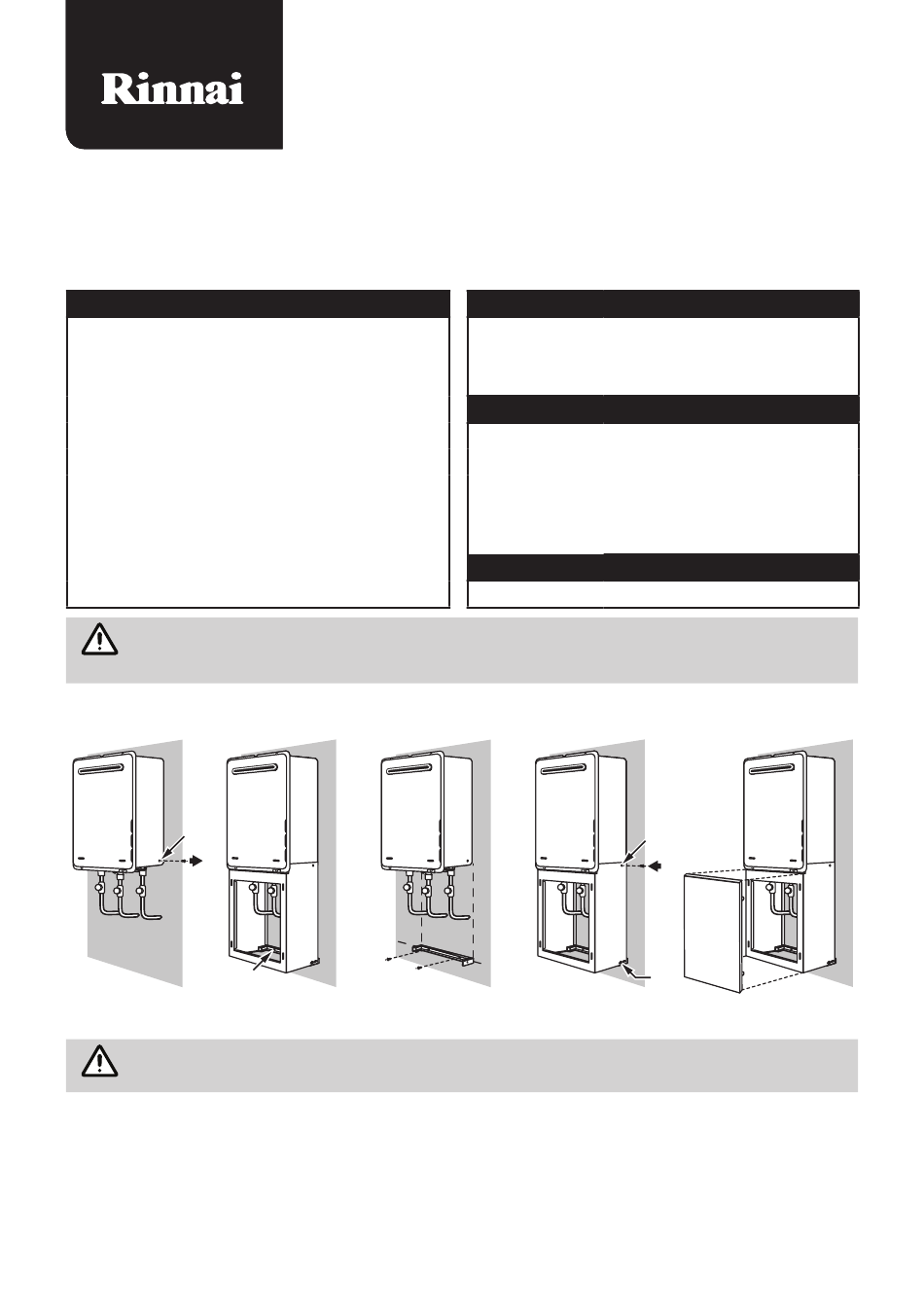

PIPE COVER INSTALLATION MANUAL
*
Infinity 26i
HD 200i
HD200e
Infinity 32
Infinity 32
*
HD 250e
*
Infinity 26 Smartstart
*
Infinity 26 Smartstart
*
*
ENVIROSMART
1
PCV01
REU-VRM2632FFUG
REU-VRM2632FFUC #
REU-VRM2632WC #
PCV02
REU-VR3237WG
REU-VRM3237WG
REU-VRM3237WC #
REU-V2626WGP
REU-VR2626WGP
PCK01
REU-K2430WG
A
C
HW_CF_PC_IM
