2.1 Cable Description
The Device is equipped with a multi-functional combination cable by default, including power cord,
video cable, audio cable, RS-485 control cable, alarm cable, network cable, and optical fiber cable.
The cables of different models vary, and the actual product shall prevail. The manual will introduce
the cables as complete as possible.
No.
1
2
3
2 Cables

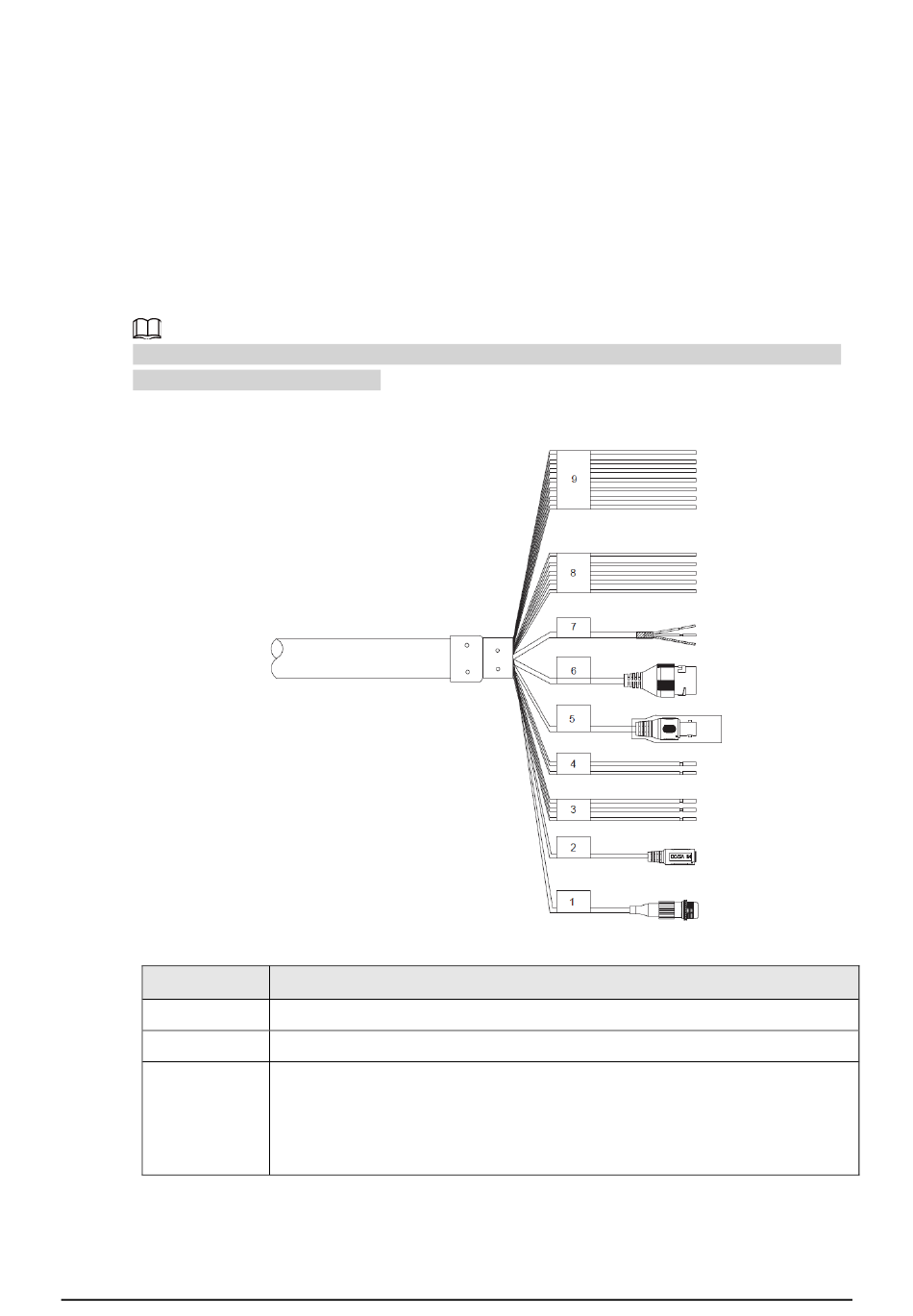

Figure 2-1 Cables
Table 2-1 Cable description
Description
FC connector
DC power input port
24V AC power input
● Red: V+
● Black: V–
● Yellow-green: Grounding cable
4
