5. Once the processor is properly
seated in the socket, turn the lock
mechanism clockwise with the fl at-
head screw driver to lock it.
Repeat the above steps if you wish
to install a secind processor.
Installing the Heatsinks
Installed processor
1. Do not apply any thermal grease to the
heatsink or the CPU die; the if the required
amount has already been applied
.

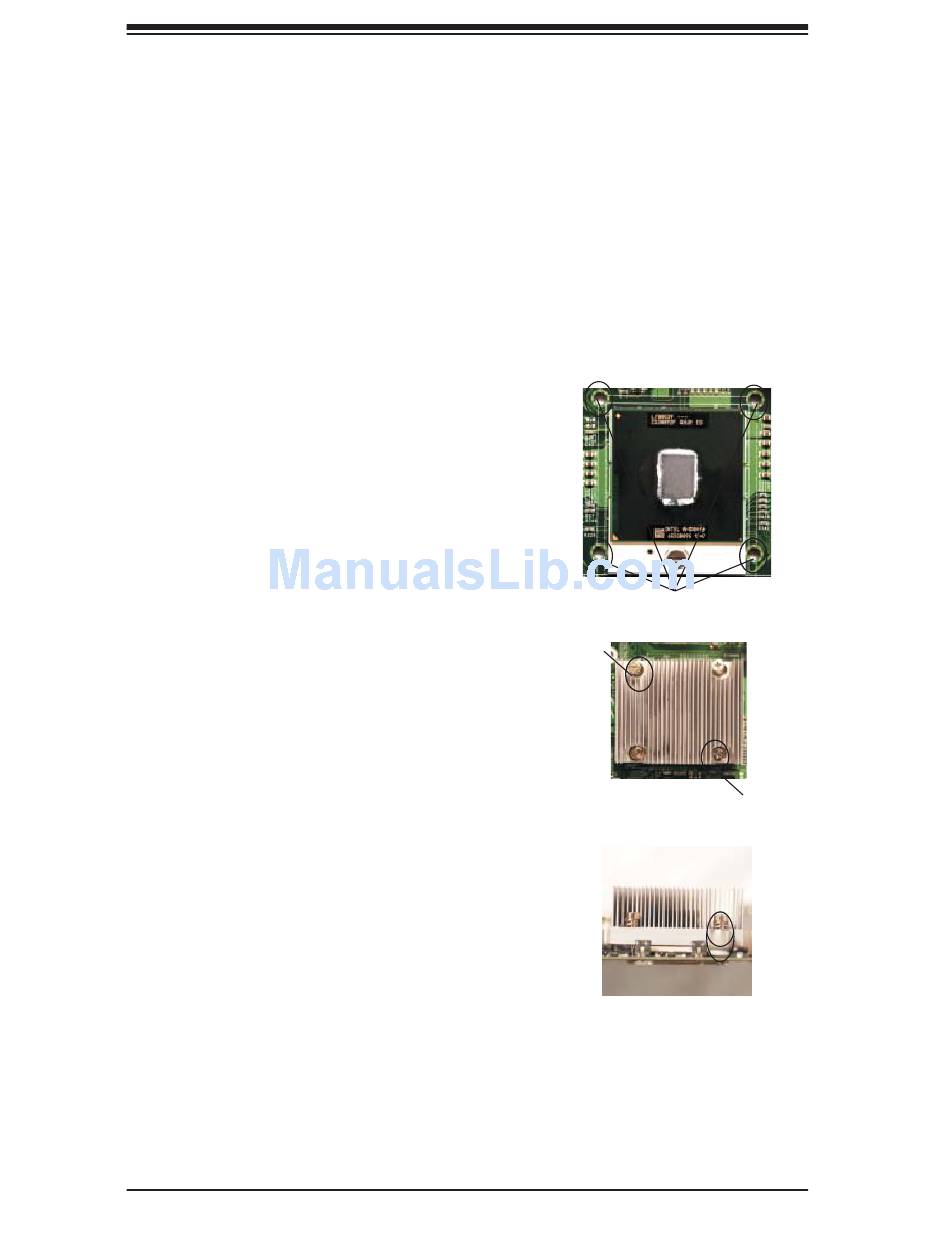

2. Locate the four heatsink mounting holes
on the serverboard.
Heatsink mounting holes
Screw# 1
3. Place the heatsink on top of the processor
and insert the heatsink's four pegs into the
heatsink mounting holes.
Screw# 2
4. Using a Phillips screwdriver, screw in
two diagonal screws (i.e. the #1 and the #2
screws) until just snug (do not fully tighten
the screws, which may damage the proces-
sor.) Repeat the same step to install the
remaining two screws.
Installed heatsink
5. Repeat the steps above to install an-
other heatsink to the secind processor (if
installed).
