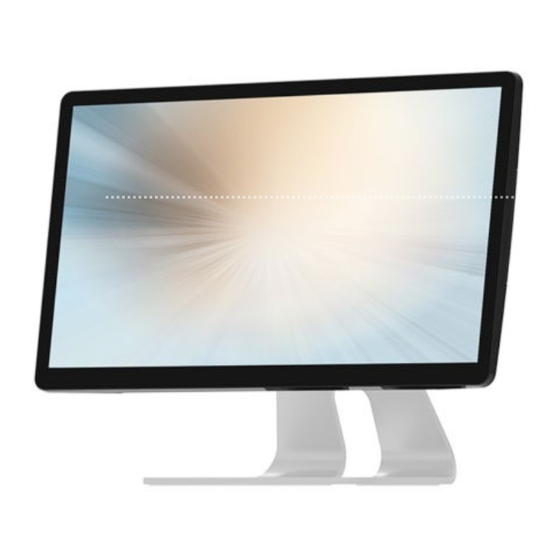

MicroTouch IC-215P-AW3 User Manual

Touch computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
IC-215P-AW3
Touch Computer
Version 1.2
2022/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC-215P-AW3 and is the answer not in the manual?

Questions and answers

Related Manuals for MicroTouch IC-215P-AW3

Summary of Contents for MicroTouch IC-215P-AW3

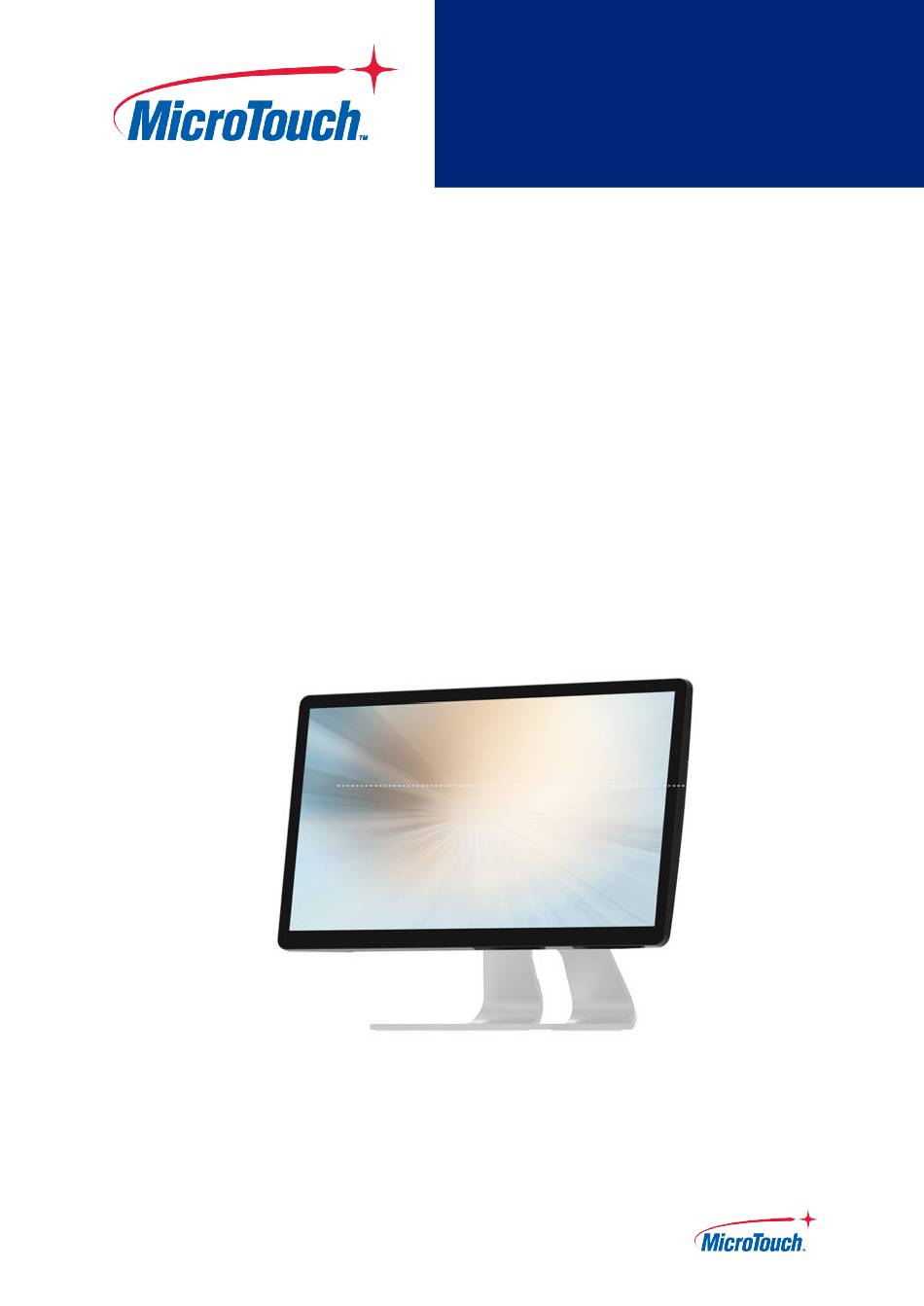

  • Page 1 User Guide IC-215P-AW3 Touch Computer Version 1.2 2022/02...
  • Page 2 MICROTOUCH reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of MICROTOUCH to notify any person of such revisions or changes. Windows is a registered trademark of...
  • Page 3 Compliance Information For FCC (USA) This equipment has been tested and fund to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. There limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Renseignements relatifs à la conformité Pour la FCC (États-Unis). Ce matériel a fait l’objet d’essais qui ont déterminé qu’il respectait les limites d’un appareil de classe A selon la partie 15 des règlements de la FCC. Ces limites sont établies pour assurer une protection raisonnable contre les parasites nuisant à...
  • Page 5 Usage Notice Warning - To prevent the risk of fire or shock hazards, and do not expose the product to moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Warning - Power cord shall be connected to a socket-outlet with earth connection.
  • Page 6 Avis d’utilisation Mise en garde — Pour prévenir les risques d’incendie ou d’électrocution, ne pas exposer le produit à l’humidité. Mise en garde — Prière de ne pas ouvrir ou démonter le produit, car cela pourrait entraîner l’électrocution. Mise en garde – Le cordon d’alimentation doit être branché à une prise pourvue d’une mise à...

  • Page 7: Table Of Contents

    Table of Contents Chapter 1 ........................7 1.1 Overview ........................8 1.2 Feature ........................8 1.3 Specifications ......................8 1.4 Block Diagram......................10 1.5 Interface Connectors ....................11 1.6 Package Overview ....................14 Chapter 2 ........................15 2.1 About VESA Mount ....................16 2.2 Power On / Off Switch ....................

  • Page 8: Chapter 1

    Chapter 1 Product Introduction...

  • Page 9: Overview

    1.1 Overview The IC-215P-AW3 is a thin 21.5” touch computer that offers a unique design with expandability and flexibility, making expansion and accessory installation easy. The versatility of IC-215P-AW3 is an exceptional choice for applications in all business sectors, especially in the retail market.
  • Page 10 2 x USB2.0 Type-A , 2 x USB3.0 Type-A 1 x LAN (Support 10/100/1000Mbps) 1 x DB9 (RS232, pin9 with NA/5V/12V support that select by BIOS) 1 x 24V DC In Internal IO Ports 2 x connector (5V/0.5A) (inside plastic cover) OS Support Windows 10 Operation Temp...

  • Page 11: Block Diagram

    1.4 Block Diagram...

  • Page 12: Interface Connectors

    1.5 Interface Connectors 24V DC In Pin # Signal Name Pin # Signal Name RJ45 for LAN Pin # Signal Name Pin # Signal Name TP1+ TP1- TP2+ TP3- TP3+ TP2- TP4+ TP4- Function Color 1000 Orange LED1 Speed Green LED2 Active Yellow...
  • Page 13 SBU1 VBUS VBUS SSRXn2 SSTXn2 SSRXp2 SSTXp2 Note 1. USB3CM: Support DP ALT mode and 5V@3A / 12V@3A output; 2. USB3CP: Support USB3*2 and 5V@3A output. USB 3.0 Dual x1 Pin # Signal Name Pin # Signal Name USB5V USB5V StdA_SSRX- StdA_SSRX- StdA_SSRX+...
  • Page 14 Mini DP Pin # Signal Name Pin # Signal Name Hot Plug Detect ML_Lane 0 (p) CONFIG1 ML_Lane 0 (n) CONFIG2 ML_Lane 1 (p) ML_Lane 3 (p) ML_Lane 1 (n) ML_Lane 3 (n) ML_Lane 2 (p) AUX_CH (p) ML_Lane 2 (n) AUX_CH (n) DP_PWR RS232 x1...

  • Page 15: Package Overview

    24Vdc, 5A minimum. (complied with LPS or PS2) Tma = 40 degree C minimum, and the altitude of operation = 3048m minimum. If it needs further assistance with purchasing the power source, please contact to MICROTOUCH for further information. Mise en garde! Cet appareil est conçu avec une alimentation de courant CA, d’une tension...

  • Page 16: Chapter 2

    Chapter 2 Product Installation...

  • Page 17: About Vesa Mount

    2.1 About VESA Mount The IC-215P-AW3 conform to the “VESA Flat Display Mounting Interface Standard” which defines a physical mounting interface for touch computer, and corresponding with the standards of touch computer mounting devices, such as wall-mounted. The VESA mount is located on the back of this unit.
  • Page 18 Mise en garde! Sélectionner les vis d’origine de MicroTouch! La distance entre la surface du couvercle arrière et le bas de l’orifice de la vis est de 8 mm. Utiliser quatre vis M4 de 8 mm de diamètre pour le montage de votre moniteur.

  • Page 19: Power On/Off Switch

    2.2 Power On / Off Switch Power On/Off Switch Function Description Power on Press the power button. Sleep With OS settings, sleep or shut down choose one. Power off Force Press the power button 4 sec. power off...

  • Page 20: Dimension

    2.3 Dimension 2.3.1 System Only Front View Side View Rear View Bottom View...

  • Page 21: System With Stand Module

    2.3.2 System with Stand Front View Side View Rear View...

  • Page 22: Optional Accessory Installation

    Bottom View 2.4 Optional Accessory Installation Note: Please install/ dismantle the product when the computer system is in the shutdown state. 2.4.1 Install the Stand Place stand module on back of touch computer and align the screw holes. Install the four M4 screws to fasten the stand.

  • Page 23: Remove The Stand Module

    2.4.2 Remove the Stand Step 1: Loosen the screws Step 2: Pull it to out from touch computer and remove stand module. Step 1 Step 2 2.4.3 Install the Cables 2.4.3.1 Cable Organizer Step 1: Pull down the cable cover for cables installation. Step 2: To fit the plugs Step 2 Step 1...

  • Page 24: Stand Module

    Step 3: To assemble the cable cover. Step 4: Driving a screw to fix cable cover (The cable can be fixed above or below the cable cover) Step 4 Step 3 2.4.3.2 Stand...

  • Page 25: Install The Camera Module

    2.4.4 Install the Camera Module Camera Module max. 19g Step 1: Remove the side cover. Step 2: Connect the camera module cable to the touch computer. Step 3: Install the two M3 screws to fasten the camera module. Step 1 Step 3 Step 2 2.4.5 Remove the Camera Module...

  • Page 26: Install The Msr Module

    2.4.6 Install the MSR Module MSR Module max. 62g. Step 1: Remove the side cover. Step 2: Connect the MSR module cable to the touch computer. Step 1 Step 2 Step 3: The metal bracket hook into the gap between cover glass and bezel.

  • Page 27: Remove The Msr Module

    Step 4: Install the two M3 screws to fasten the MSR module. Step 4 2.4.7 Remove the MSR Module Step 1: Loosen the screws. Step 1...
  • Page 28 Step 2: Remove the MSR module cable from the touch computer. Step 3: To assemble the side cover. Step 3 Step 2...

  • Page 29: Appendix

    Appendix...

  • Page 30: Declaration Of The Presence Condition Of The Restricted Substances Marking

    Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱：觸控電腦 型號（型式）：IC-215P-AW3 Equipment name: Touch Computer Type designation (Type): IC-215P-AW3 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 Unit 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Hexavalent Polybrominated Polybrominated Lead Mercury...
