Summary of Contents for MicroTouch IC-156P-AW2
- Page 1 User Manual User Guide IC-156P-AW2 Touch Computer Version 1.2 2022/02...
- Page 2 MicroTouch reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of MicroTouch to notify any person of such revisions or changes.
- Page 3 Compliance Information For FCC (USA) This equipment has been tested and fund to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. There limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 Renseignements relatifs à la conformité Pour la FCC (États-Unis). Ce matériel a fait l’objet d’essais qui ont déterminé qu’il respectait les limites d’un appareil de classe A selon la partie 15 des règlements de la FCC. Ces limites sont établies pour assurer une protection raisonnable contre les parasites nuisant à...
- Page 5 Usage Notice Warning - To prevent the risk of fire or shock hazards, and do not expose the product to moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Warning - Power cord shall be connected to a socket-outlet with earth connection.
- Page 6 Avis d’utilisation Mise en garde — Pour prévenir les risques d’incendie ou d’électrocution, ne pas exposer le produit à l’humidité. Mise en garde — Prière de ne pas ouvrir ou démonter le produit, car cela pourrait entraîner l’électrocution. Mise en garde – Le cordon d’alimentation doit être branché à une prise pourvue d’une mise à...
-
Page 7: Table Of Contents
Table of Contents Chapter 1 ........................8 1.1 Overview ........................9 1.2 Feature ........................9 1.3 Specifications ......................9 1.4 Block Diagram ......................12 1.5 Interface Connectors ....................13 1.6 Package Overview ....................16 Chapter 2 ........................17 2.1 About VESA Mount ....................18 2.2 Power On / Off Switch .................... -
Page 8: Chapter 1
Chapter 1 Product Introduction P a g e... -
Page 9: Overview

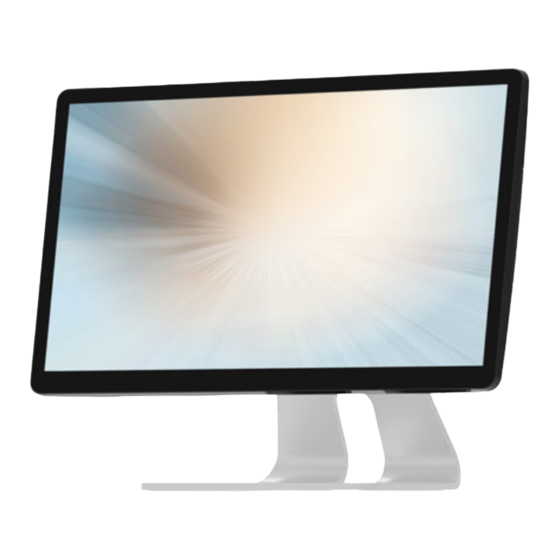

1.1 Overview The IC-156P-AW2 is a thin 15.6” touch computer that offers a unique design with expandability and flexibility, making expansion and accessory installation easy. The versatility of IC-156P-AW2 is an exceptional choice for applications in all business sectors, especially in the retail market. - Page 10 Trusted Platform TPM 2.0 Infineon SLB9665TT2.0 controller onboard Module (TPM) 1 x Power button 2 x USB Type-C (USB3CP: 2x USB 3.1 gen1 with 5V@3A output; USB3CM: 1x USB 3.1 gen1 with Display ALT Mode and PD2.0, support 5V@3A / 12V@2.5A output, Maximum 30W.) External IO Ports 1 x MiniDP (4K@60HZ)
- Page 11 System Only：369.1 mm x 223.7 mm x 35.2 mm Dimension (W x H x D) System with Stand : 369.1 mm x 291.6 mm x 169.4 mm System Only：2.01 Kg Net Weight System with Stand：4.01 Kg System Only：3.01 Kg Gross Weight System with Stand：6.01 Kg P a g e | 11...
-
Page 12: Block Diagram
1.4 Block Diagram P a g e | 12... -
Page 13: Interface Connectors
1.5 Interface Connectors 24V DC In Pin # Signal Name Pin # Signal Name RJ45 for LAN Pin # Signal Name Pin # Signal Name TP1+ TP1- TP2+ TP3- TP3+ TP2- TP4+ TP4- Function Color 1000 Orange LED1 Speed Green LED2 Active Yellow... - Page 14 SBU1 VBUS VBUS SSRXn2 SSTXn2 SSRXp2 SSTXp2 Note 1. USB3CM: Support DP ALT mode and 5V@3A / 12V@3A output; 2. USB3CP: Support USB3*2 and 5V@3A output. USB 3.0 Dual Pin # Signal Name Pin # Signal Name USB5V USB5V StdA_SSRX- StdA_SSRX- StdA_SSRX+ StdA_SSRX+...
- Page 15 Mini DP Pin # Signal Name Pin # Signal Name Hot Plug Detect ML_Lane 0 (p) CONFIG1 ML_Lane 0 (n) CONFIG2 ML_Lane 1 (p) ML_Lane 3 (p) ML_Lane 1 (n) ML_Lane 3 (n) ML_Lane 2 (p) AUX_CH (p) ML_Lane 2 (n) AUX_CH (n) DP_PWR P a g e...
-
Page 16: Package Overview
24Vdc, 5A minimum. (complied with LPS or PS2) Tma = 40 degree C minimum, and the altitude of operation = 3048m minimum. If it needs further assistance with purchasing the power source, please contact to MicroTouch for further information. Mise en garde! Cet appareil est conçu avec une alimentation de courant CA, d’une tension... -
Page 17: Chapter 2
Chapter 2 Product Installation P a g e | 17... -
Page 18: About Vesa Mount
The VESA mount is located on the back of this unit. The IC-156P-AW2 may be wall mounted in the horizontal position (output connector facing down) or vertical position (output connector facing left or right). - Page 19 Mise en garde! Sélectionner les vis d’origine de MicroTouch! La distance entre la surface du couvercle arrière et le bas de l’orifice de la vis est de 8 mm. Utiliser quatre vis M4 de 8 mm de diamètre pour le montage de votre moniteur.
-
Page 20: Power On/Off Switch
2.2 Power On / Off Switch Power On/Off Switch Function Description Power on Press the power button. Sleep With OS settings, sleep or shut down choose one. Power off Force Press the power button 4 sec. power off P a g e | 20... -
Page 21: Dimension
2.3 Dimension 2.3.1 System Only Front View Side View Rear View P a g e | 21... - Page 22 Bottom View 2.3.2 System with Stand Front View Side View P a g e | 22...
-
Page 23: Optional Accessory Installation
Rear View Bottom View 2.4 Optional Accessory Installation Note: Please install the accessories when the touch computer is in a powered off state. 2.4.1 Install the Stand Place stand module on back of touch computer and align the screw holes. Install the four M4 screws to fasten the stand module. -
Page 24: Remove The Stand
2.4.2 Remove the Stand Step 1: Loosen the screws Step 2: Pull it out from touch computer and remove stand module. Step 2 Step 1 2.4.3 Install the Cables P a g e | 24... -
Page 25: Install The Camera Module
2.4.4 Install the Camera Module Camera Module weight 19g. Step 1: Remove the side cover. Step 2: Connect the camera module cable to the touch computer. Step 3: Install the two M3 screws to fasten the camera module. Step 1 Step 3 Step 2 2.4.5 Remove the Camera Module... -
Page 26: Install The Msr Module
2.4.6 Install the MSR Module MSR Module weight 62g. Step 1: Remove the side cover. Step 2: Connect the MSR module cable to the touch computer. Step 1 Step 2 Step 3: The metal bracket hook into the gap between cover glass and bezel. P a g e | 26... -
Page 27: Remove The Msr Module
Step 4: Install the two M3 screws to fasten the MSR module. Step 4 2.4.7 Remove the MSR Module Step 1: Loosen the screws. Step 1 P a g e | 27... - Page 28 Step 2: Remove the MSR module cable from the touch computer. Step 3: To assemble the side cover. Step 3 Step 2 P a g e | 28...
-
Page 29: Appendix
Appendix P a g e | 29... -
Page 30: Declaration Of The Presence Condition Of The Restricted Substances Marking
Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱：觸控電腦 型號（型式）：IC-156P-AW2 Equipment name: Touch Computer Type designation (Type): IC-156P-AW2 限用物質及其化學符號 Restricted substances and its chemical symbols 多溴二苯醚 六價鉻 多溴聯苯 單元Unit 鉛 汞 Polybrominated 鎘Cadmium Hexavalent Polybrominated Lead Mercury diphenyl ethers...
