Summary of Contents for MicroTouch IC-156P-AA2

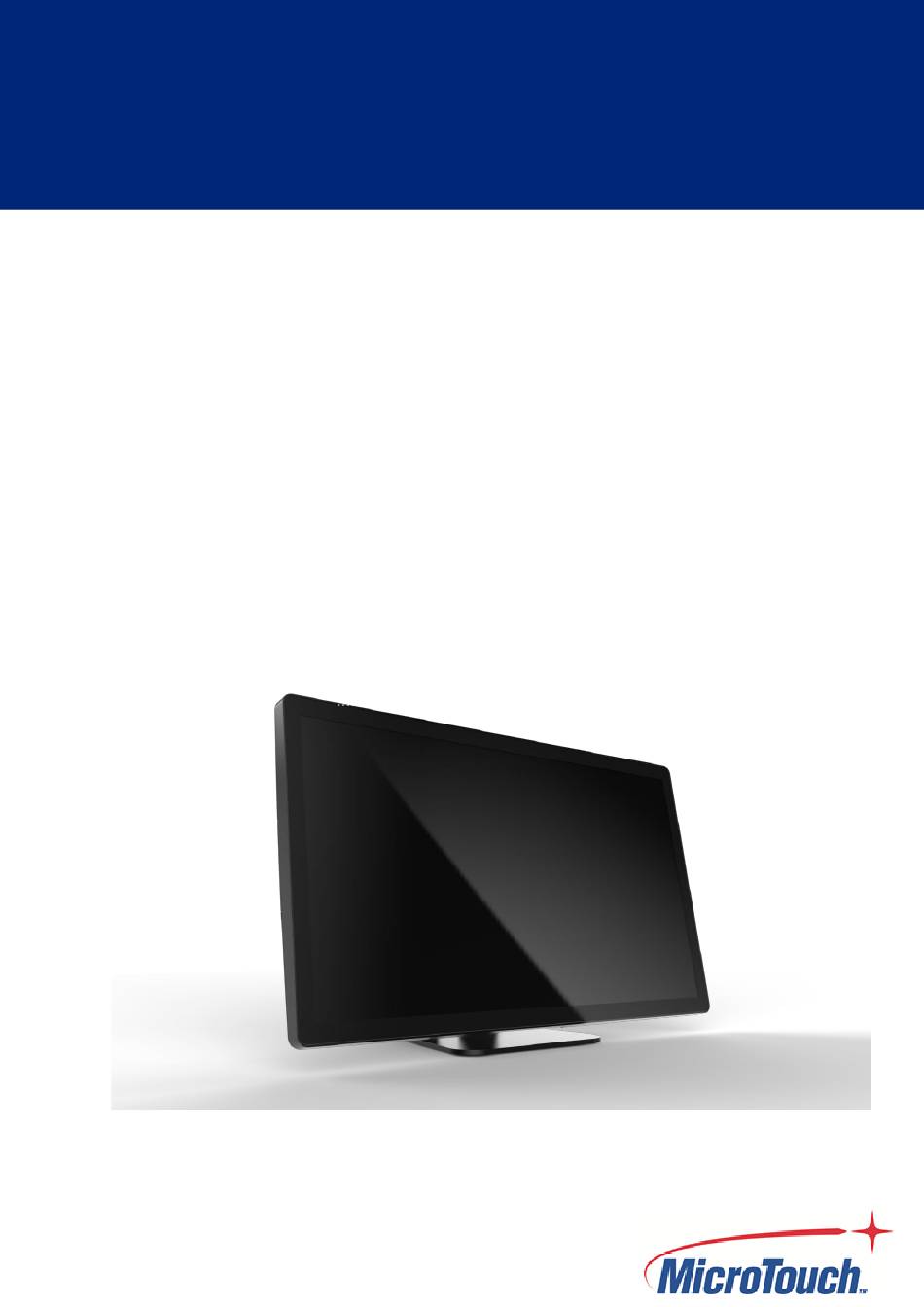

  • Page 1 User Manual IC-156P-AA2 Interactive Computer...
  • Page 2 MicroTouch a TES Company. The information in this document is subject to change without notice. MicroTouch TES Company makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
  • Page 3 Compliance Information For FCC (USA) This equipment has been tested and fund to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. There limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Renseignements relatifs à la conformité Pour la FCC (États-Unis). Ce matériel a fait l’objet d’essais qui ont déterminé qu’il respectait les limites d’un appareil de classe A selon la partie 15 des règlements de la FCC. Ces limites sont établies pour assurer une protection raisonnable contre les parasites nuisant à...
  • Page 5 Usage Notice Warning - To prevent the risk of fire or shock hazards, and do not expose the product to moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Warning - Power cord shall be connected to a socket-outlet with earthing connection.
  • Page 6 Avis d’utilisation Mise en garde — Pour prévenir les risques d’incendie ou d’électrocution, ne pas exposer le produit à l’humidité. Mise en garde — Prière de ne pas ouvrir ou démonter le produit, car cela pourrait entraîner l’électrocution. Mise en garde – Le cordon d’alimentation doit être branché à une prise pourvue d’une mise à...
  • Page 7: Table Of Contents

    2.2 Power On / Off Switch ....................18 2.3 Dimension ........................ 19 2.3.1 IC-156P-AA2 (System Only) ................19 2.3.2 IC-156P-AA2 (System with Stand Module) ............20 2.4 Optional Accessory Installation ................21 2.4.1 Install the Stand Module ................... 21 2.4.2 Dismantle the Stand Module ................21 2.4.3 Install the Cables ....................
  • Page 8: Chapter 1

    Chapter 1 Product Introduction...
  • Page 9: Overview

    1.1 Overview The IC-150P-AA2 series is a thinner 15.6” touch computer that offers a unique screw less design with expandability and flexibility, making expansion and accessory installation much easier. The versatility of IC-150P-AA2 series is an exceptional choice for applications in all business sectors, especially in the retail market. 1.2 Feature ▪...
  • Page 10 Certificate CE、FCC、LVD Mounting VESA 100 mm x 100 mm System Only IC-156P-AA2: 369.1 mm x 223.7 mm x 27.2 mm • Dimension (W x H x D) System with Stand Module IC-156P-AA2: 369.1 mm x 290.5 mm x 169.4 mm •...
  • Page 11 IC-156P-AA2: 2.8 Kg • System with Stand Module • IC-156P-AA2: 5.78 Kg...
  • Page 12: Block Diagram

    1.4 Block Diagram 1.4.1 IC-156P-AA2 1.5 Interface Connectors...
  • Page 13: Ic-150P-Aa2

    1.5.1 IC-156P-AA2 Pin # Signal Name Pin # Signal Name 12V DC in RJ45 for LAN Pin # Signal Name Pin # Signal Name TP1+ TP1- TP2+ TP3- TP3+ TP2- TP4+ TP4- Function Color Left Active Yellow (Blink) Right 10M/100M/1000M Green USB3.0...
  • Page 14 USB-C Pin # Signal Name Pin # Signal Name SSTXp1 SSRXp1 SSTXn1 SSRXn1 VBUS VBUS SBU2 SBU1 VBUS VBUS SSRXn2 SSTXn2 SSRXp2 SSTXp2 HDMI Pin # Signal Name Pin # Signal Name TMDS Data2 TMDS Data2+ Shield TMDS Data2- TMDS Data1+ TMDS Data1 TMDS Data1- Shield...
  • Page 15: Package Overview

    12Vdc, 5A minimum. (complied with LPS or PS2) Tma = 40 degree C minimum, and the altitude of operation = 3048m minimum. If it needs further assistance with purchasing the power source, please contact to MicroTouch for further information. Mise en garde! Cet appareil est conçu avec une alimentation de courant CA, d’une tension...
  • Page 16: Chapter 2

    Chapter 2 Product Installation...
  • Page 17: About Vesa Mount

    VESA Mount Warning! Please select the MicroTouch original screws! The distance between the back cover surface and the bottom of the screw hole is 8 mm. Please use four M4 / 8 mm screws diameter with proper length to mount your monitor.
  • Page 18 Mise en garde! Sélectionner les vis d’origine de MicroTouch! La distance entre la surface du couvercle arrière et le bas de l’orifice de la vis est de 8 mm. Utiliser quatre vis M4 de 8 mm de diamètre pour le montage de votre moniteur.
  • Page 19: Power On / Off Switch

    2.2 Power On / Off Switch Power On/Off Switch IC-156P-AA2 Function Description Power on Press the power button 2 sec Press the power button to enter sleep mode, and press again to Sleep resume from sleep Power off Press the power button 2 sec and click power off.
  • Page 20: Dimension

    2.3 Dimension 2.3.1 IC-156P-AA2 (System Only) Front View Side View Rear View Bottom View...
  • Page 21: Ic-156P-Aa2 (System With Stand Module)

    2.3.2 IC-156P-AA2 (System with Stand Module) Front View Side View Rear View Bottom View...
  • Page 22: Optional Accessory Installation

    2.4 Optional Accessory Installation Note: Please install/ dismantle the product when the computer system is in the shutdown state. 2.4.1 Install the Stand Module Place stand module on back of touch computer and align the screw holes. Install the four M4 screws to fasten the stand module.
  • Page 23: Install The Cables

    2.4.3 Install the Cables 2.4.4 Install the Camera Module Camera Module max. 19g Step 1: Remove the side cover. Step 2: Connect the camera module cable to the touch computer. Step 3: Install the two M3 screws to fasten the camera module. Step 1 Step 3 Step 2...
  • Page 24: Dismantle The Camera Module

    2.4.5 Dismantle the Camera Module Step 1: Loosen the screws. Step 2: Remove the camera module cable from the touch computer. Step 3: To assemble the side cover. Step 3 Step 2 Step 1 2.4.6 Install the MSR Module MSR Module max. 62g. Step 1: Remove the side cover.
  • Page 25 Step 3: The metal bracket hook into the gap between cover glass and bezel. Step 4: Install the two M3 screws to fasten the MSR module. Step 4...
  • Page 26: Dismantle The Msr Module

    2.4.7 Dismantle the MSR Module Step 1: Loosen the screws. Step 1 Step 2: Remove the MSR module cable from the touch computer. Step 3: To assemble the side cover. Step 3 Step 2...
  • Page 27: Appendix

    Appendix...
  • Page 28: Declaration Of The Presence Condition Of The Restricted Substances Marking

    Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱:觸控電腦 型號(型式):IC-150P-AA2 Equipment name: Touch Computer Type designation (Type): IC-150P-AA2 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 Unit 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Cadmium Hexavalent Polybrominated Polybrominated Lead Mercury (Cd) chromium...
