MicroTouch IC-156P-AW1 User Manual

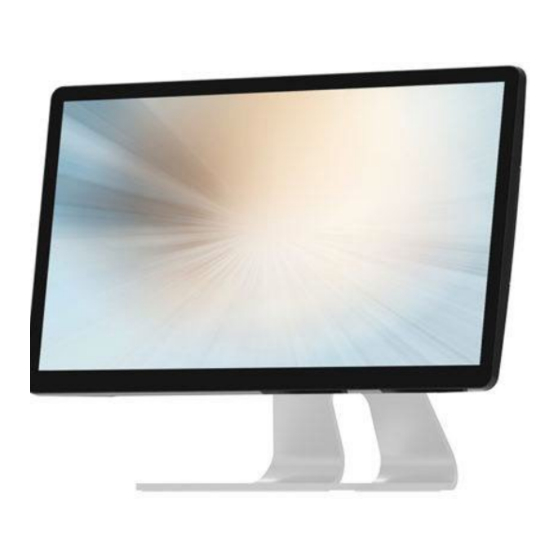

Touch computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
●
User Guide
IC-156P-AW1
Touch Computer
Version 1.2 2022/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC-156P-AW1 and is the answer not in the manual?

Questions and answers

Related Manuals for MicroTouch IC-156P-AW1

Summary of Contents for MicroTouch IC-156P-AW1

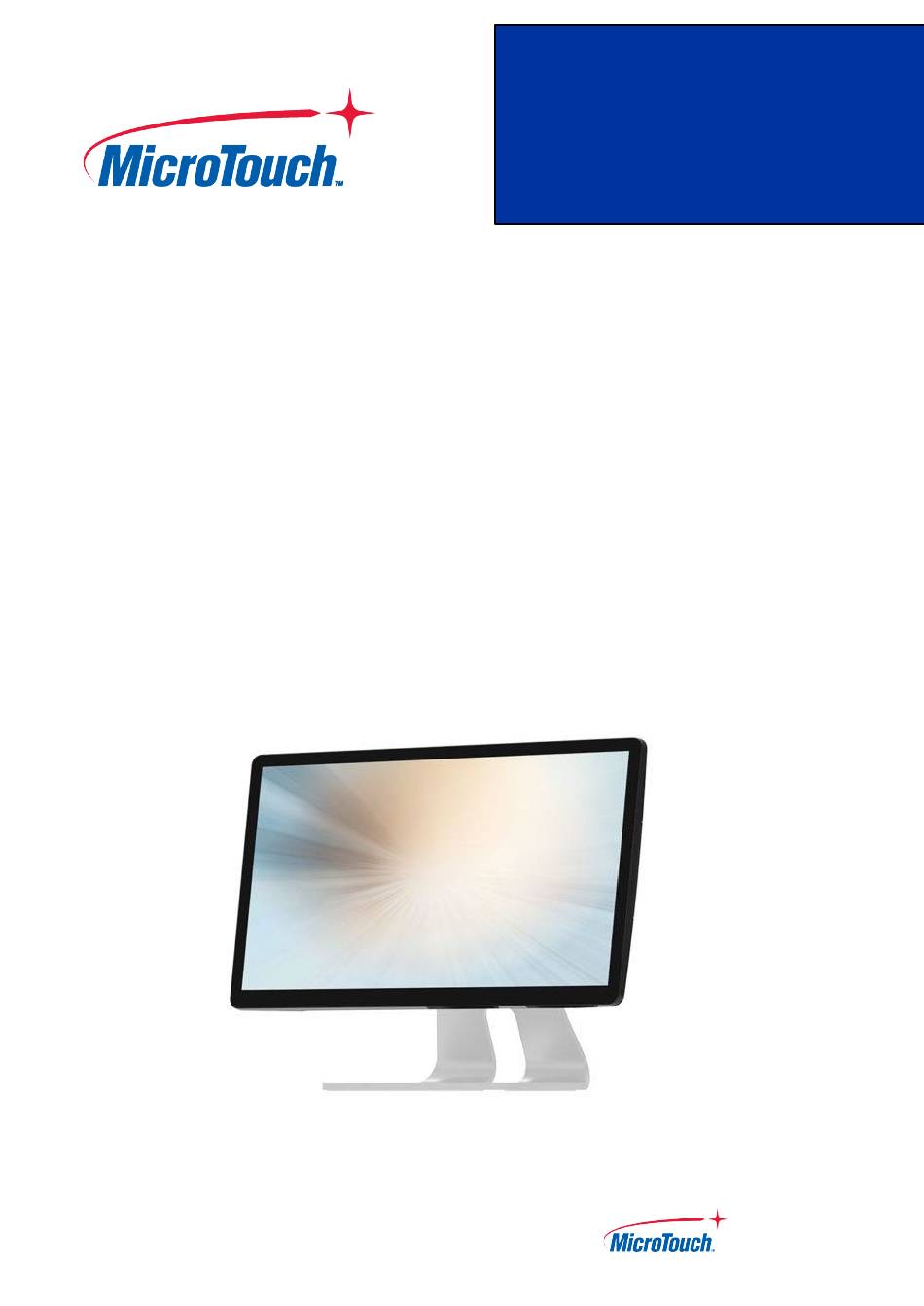

  • Page 1 ● User Guide IC-156P-AW1 Touch Computer Version 1.2 2022/02...
  • Page 2 MicroTouch reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of MicroTouch to notify any person of such revisions or changes.
  • Page 3 Compliance Information For FCC (USA) This equipment has been tested and fund to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. There limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Renseignements relatifs à la conformité Pour la FCC (États-Unis). Ce matériel a fait l’objet d’essais qui ont déterminé qu’il respectait les limites d’un appareil de classe A selon la partie 15 des règlements de la FCC. Ces limites sont établies pour assurer une protection raisonnable contre les parasites nuisant à...
  • Page 5 Usage Notice Warning - To prevent the risk of fire or shock hazards, and do not expose the product to moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Warning - Power cord shall be connected to a socket-outlet with earth connection.
  • Page 6 Avis d’utilisation Mise en garde — Pour prévenir les risques d’incendie ou d’électrocution, ne pas exposer le produit à l’humidité. Mise en garde — Prière de ne pas ouvrir ou démonter le produit, car cela pourrait entraîner l’électrocution. Mise en garde – Le cordon d’alimentation doit être branché à une prise pourvue d’une mise à...

  • Page 7: Table Of Contents

    Table of Contents Chapter 1 ........................7 1.1 Overview ........................8 1.2 Feature ........................8 1.3 Specifications ......................8 1.4 Block Diagram......................10 1.5 Interface Connectors ....................10 1.6 Package Overview ....................13 Chapter 2 ........................15 2.1 About VESA Mount ....................16 2.2 Power On / Off Switch ....................

  • Page 8: Chapter 1

    Chapter 1 Product Introduction...

  • Page 9: Overview

    1.1 Overview The IC-156P-AW1 is a thin 15.6” touch computer that offers a unique design with expandability and flexibility, making expansion and accessory installation easy. The versatility of IC-156P-AW1 is an exceptional choice for applications in all business sectors, especially in the retail market.
  • Page 10 1 x Line out 1 x Power button Internal IO Ports 3 x connector (5V/0.5A) (inside plastic cover) Windows 7 & 10 ( Note: MicroTouch does not supply Windows 7 OS version Operating System Operation temp. 0°C~40°C Storage temp. -20°C to 60°C...

  • Page 11: Block Diagram

    System Only：369.1 mm x 223.7 mm x 35.2 mm Dimension (W x H x D) System with Stand：369.1 mm x 291.6 mm x 169.4 mm System Only：2.01 Kg Net Weight System with Stand：4.01 Kg System Only：3.01 Kg Gross Weight System with Stand：6.01 Kg 1.4 Block Diagram 1.5 Interface Connectors...
  • Page 12 12V DC in Pin # Signal Name Pin # Signal Name 12V DC Out Pin # Signal Name Pin # Signal Name USB2.0 Pin # Signal Name Pin # Signal Name USB5V RJ45 for LAN Pin # Signal Name Pin # Signal Name TP1+ TP1-...
  • Page 13 12V / RI / 5V 12V / RI / 5V Jumper Pin # Signal Name Pin # Signal Name Setting for PWR_COM1/PWR_C Set PWR_COM1/PWR_COM2 as 12V Set PWR_COM1/PWR_COM2 as RI# Set PWR_COM1/PWR_COM2 as 5V PWR_COM1/PWR_COM2 Location D-SUB 15 for VGA Pin # Signal Name Pin #...

  • Page 14: Package Overview

    Line Out Pin # Signal Name Pin # Signal Name Right Link Detect Left 1.6 Package Overview Touch Computer Power Cord DC Power Supply Screw Stand Module (Optional)
  • Page 15 Warning! This product is intended to be supplied by a UL Listed Power Adapter, rated 12Vdc, 5A minimum. (complied with LPS or PS2) Tma = 40 degree C minimum, and the altitude of operation = 3048m minimum. If it needs further assistance with purchasing the power source, please contact to TES for further information.

  • Page 16: Chapter 2

    Chapter 2 Product Installation...

  • Page 17: About Vesa Mount

    The VESA mount is located on the back of this unit. The IC-156P-AW1 may be wall mounted in the horizontal position (output connector facing down) or vertical position (output connector facing left or right).
  • Page 18 Warning! Please use the correct screws! The distance between the back cover surface and the bottom of the screw hole is 8 mm. Please use four M4 / 8 mm screws diameter with proper length to mount your monitor. Mise en garde! Sélectionner les vis d’origine de TES! La distance entre la surface du couvercle arrière et le bas de l’orifice de la vis est de 8 mm.

  • Page 19: Power On/Off Switch

    2.2 Power On / Off Switch Power On/Off Switch Function Description Power on Press the power button. Sleep With OS settings, sleep or shut down choose one. Power off Force Press the power button 4 sec. power off 2.3 Dimension 2.3.1 System Only Front View...
  • Page 20 Side View Rear View Bottom View...
  • Page 21 2.3.2 System with Stand Front View Side View Rear View...

  • Page 22: Optional Accessory Installation

    Bottom View 2.4 Optional Accessory Installation Note: Please install the accessories when the touch computer is in a powered off state. 2.4.1 Install the Stand Place stand module on back of touch computer and align the screw holes. Install the four M4 screws to fasten the stand module.

  • Page 23: Remove The Stand

    2.4.2 Remove the Stand Step 1: Loosen the screws Step 2: Pull it to out from touch computer and remove stand module. Step 2 Step 1 2.4.3 Install the Cables...

  • Page 24: Install The Camera Module

    2.4.4 Install the Camera Module Camera Module weight. 19g Step 1: Remove the side cover. Step 2: Connect the camera module cable to the touch computer. Step 3: Install the two M3 screws to fasten the camera module. Step 1 Step 3 Step 2...

  • Page 25: Remove The Camera Module

    2.4.5 Remove the Camera Module Step 1: Loosen the screws. Step 2: Remove the camera module cable from the touch computer. Step 3: Replace the side cover. Step 3 Step 2 Step 1 2.4.6 Install the MSR Module MSR Module weight. 62g. Step 1: Remove the side cover.
  • Page 26 Step 3: Install the metal bracket hook into the gap between cover glass and bezel. Step 4: Install the two M3 screws to fasten the MSR module. Step 4...

  • Page 27: Remove The Msr Module

    2.4.7 Remove the MSR Module Step 1: Loosen the screws. Step 1 Step 2: Remove the MSR module cable from the touch computer. Step 3: To assemble the side cover. Step 3 Step 2...

  • Page 28: Chapter 3

    Chapter 3 AMI BIOS Setup...

  • Page 29: About Ami Bios Setup

    3.1 About AMI BIOS Setup Use the BIOS Setup to update the BIOS or configure settings. The screens include navigation keys and help to guide you in using the BIOS Setup program. To enter BIOS Setup at startup: Press <Delete> during the power-on self-test (POST). If you do not press <Delete>, POST continues with its routine.

  • Page 30: Advanced Menu

    3.3 Advanced Menu The Advanced menu items allow you to change the settings for the CPU and other system devices. 3.4 Chipset Menu The Chipset menu items allow you to change the settings for the chipset.

  • Page 31: Security Menu

    3.5 Security Menu The Security menu items allow you to change the system security settings. 3.5.1 Administrator Password If you have set an administrator password, we recommend that you use the administrator password for accessing the system. Otherwise, you might only be able to see or change selected fields in the BIOS setup program.

  • Page 32: Boot Menu

    To clear the administrator password: Follow the same steps as in changing an administrator password, but press <Enter> when prompted to create/confirm the password. After you clear the password, the Administrator Password item on top of the screen will show Not Installed.

  • Page 33: Save & Exit

    3.7 Save & Exit Save Changes and Reset Once you are finished your selections, choose this option from the Exit menu to ensure the values you selected are saved. A confirmation window will appear when you select this option. Select Yes to save changes and reboot system.
  • Page 34 Discard Changes and Reset This option allows you to exit the setup program without saving your changes. A confirmation window will appear when you select this option or you press <Esc>. Select Yes to discard changes and reboot system. Restore Defaults Save or restore user defaults to all setup options.

  • Page 35: Appendix

    Appendix...

  • Page 36: Declaration Of The Presence Condition Of The Restricted Substances Marking

    Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱：觸控電腦 型號（型式）：IC-156P-AW1 Equipment name: Touch Computer Type designation (Type): IC-156P-AW1 限用物質及其化學符號 Restricted substances and its chemical symbols 單元Unit 六價鉻 多溴聯苯 多溴二苯醚 Hexavalent Polybrominated 鉛Lead 汞Mercury 鎘Cadmium Polybrominated (Pb) (Hg) (Cd)
