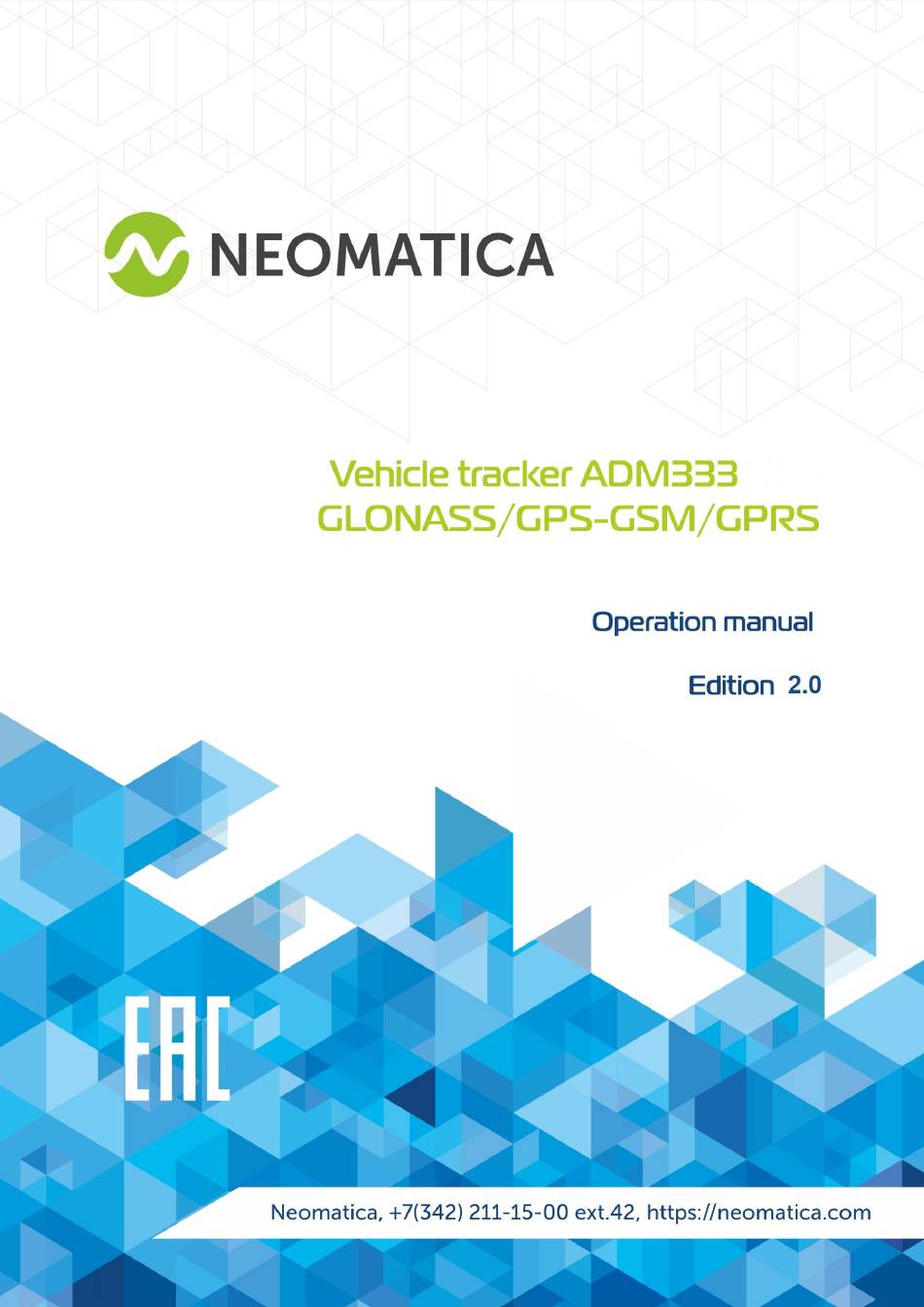

Neomatica ADM333 Operation Manual

Vehicle tracker glonass/gps-gsm/gprs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADM333 and is the answer not in the manual?

Questions and answers

Related Manuals for Neomatica ADM333

Summary of Contents for Neomatica ADM333

  • Page 1 Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 2: Table Of Contents

    6.4.1 Connection of temperature sensors ................24 6.4.2 Connection of iButton ..................... 25 6.5 Connection of devices via Bluetooth Low Energy ..............25 6.5.1 Connection of BLE sensors .................... 26 Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 3 14 Scope of supply ........................48 15 Acceptance certificate ......................48 Appendix A. Description of the bits of the field «STATUS» ............. 49 Appendix B. Description of transmitted parameters in Wialon ..........50 Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 4 This Operation manual relates to the vehicle tracker ADM333 (hereinafter referred to as tracker) and describes the procedure of its installation and connection as well as its function and settings. The Operation manual is designed for professionals who have familiarized themselves with the rules of repair and installation works execution in vehicles and who have special professional knowledge in electronic and electric equipment used on various transport means.

  • Page 5: Purpose And Function

    The vehicle travel route is described in the form of separate points in time. The route point is saved when at least one event occurs, such as: • travel direction changes by an angle which is greater than the pre-set one; Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 6: Technical Specifications

    • data from the sensors connected via radio channel Bluetooth Low Energy; • data from the sensors connected to RS-485 and 1-Wire. 2 Technical specifications • GLONASS/GPS receiver: chipset: МТ3333 (MediaTek); Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 7  Power voltage: +8...+45 V of unregulated direct current.  Current consumption (at the supply voltage 12 V): maximum: 200 mА; average: 30 mА. Dimensions: 55х49х20mm; • weight: not more than 39 g. • Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 8: Design

    The blue LED indicates the status of the GSM/GPRS unit of the combined module: • flashes three times - the GSM/GPRS unit is disabled for re-initialization; • flashes twice - the GSM/GPRS unit is on, but there is no connection to the server; Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 9: Disassembling And Assembling Of The Housing

    1) Make sure the wires of the battery are not squeezed and then install the scheme. 2) Pressing to the scheme alternately from both the sides, clamp the scheme holders 3) Install the upper part of the housing. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 10: Installation

    If there are valid satellite data and an established connection to the server, the tracker will catch the time, coordinates and transmit information packets to the server, which will be marked by a single flashing of the green and blue LEDs. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 11: Tracker Setting

    5 Tracker setting 5.1 Connection to ADM configurator To connect the ADM333 tracker to a personal computer using Bluetooth wireless technology, do the following: 1) Bring the Bluetooth adapter of the PC to the working state; 2) Start the ADM Configurator program of the version 2.5.0 or later (available for loading in website http://neomatica.com);...

  • Page 12: Using Configuration Commands

    If it is not possible to change parameters or parameters are not enough, the tracker will answer with an error message. A command without parameters returns the current settings. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 13: Configuring Sim

    The priority is set in the graphic interface of the ADM Configurator or using SIMPRIORITY command. By default, priority is not set. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 14: Setting Connection To The Server

    Outputs, events in inputs OUTS Analogue inputs IN_A Fuel level sensors FUEL 1-Wire CAN-LOG CANLOG Modbus MODBUS 1024 ADM20/21 ADM20 2048 ADM BLE sensors ADM3X 4096 BLE beacons BEACON 8192 Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 15: Dynamic Black Box

    TRACKSET 1 A good tracking quality. The drawing of slight changes of direction and road turns is simplified (expected points per km are 1.3 times less than in preset 2) Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 16: Expert Setting Of Tracking Parameters

    M=255 – apply same parameters for all the modes M=0 – slow movement M=1 – medium -speed movement M=2 – fast movement A – angle for speed mode with M number. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 17 Response format: TRACK X,Y,Z; (M) A1,B1; (M) A2,B2; (M) A3,B3 X – minimum speed Y - distance (meters) Z - acceleration (km/h per a second) M=0 – slow movement M=1 – medium speed movement Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 18: Alarm Mode Of Data Record

    «1» «INTRUE» and the logical «0» «INFALSE». Then choose the mode of coordinates fixation according to ignition and a number of the input the ignition is Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 19: Coordinates Fixation According To Vibration Level

    • direction change; • regarding the period of movement; • regarding the period of parking; • • at tracker start up; • change of discrete state at input; Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 20: Beacon" Operation Mode

    X1 - the lower limit of the logical "1" voltage range (variable value) Y1 - the upper limit of the logical "1" voltage range (fixed value of 60000 mV). When entering these commands, the voltage must be specified in millivolts. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 21: Discrete Output

    Connection should be done according to the scheme in Figure 8. Figure 8 – Scheme of the connection of charge with the current consumption not more than 100mA. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 22 It is possible to control the output condition with the OUTPUT X command X=1 – switch on (to short output to ground), X=0 – switch off (to put output in a state of breakage). Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 23: Rs-485

    • Connect lines A and B to the tracker connector pins 8 and 4. The connection scheme is given in figure 10. • Activate “FUEL” data block transmission in the graphic interface of the ADM Configurator or use PROTOCOL command. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 24: 1-Wire

    1-Wire receives its sequence number (the sequence number does not correspond to the order of the sensors physical location on the bus); Use PROTOCOL command to activate “1-Wire” data block transmission. • Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 25: Connection Of Ibutton

    6.5 Connection of devices via Bluetooth Low Energy Connection of extra devices to the tracker assumes a set of actions: to configure the device under connection, the tracker and PC at the side of the server. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 26: Connection Of Ble Sensors

    BLEAUTOCATCH – automatic search by default, with the filter as regards the signal level. BLEAUTOCATCH 255,0 – automatic search of all supported sensors without filters. BLEAUTOCATCH 0 – stop the current search Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 27 • Search within 120 seconds, without the filter according to radio signal level minus 60 dBm. BLEAUTOCATCH • Search with the opportunity to choose the sensor type (D), without the filter according to radio signal level, search time of 120 seconds. BLEAUTOCATCH D Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 28: Adding Sensors Adm31, Adm 32 In Manual Mode, Viewing Added Sensors List

    The BLESENSORINFO command allows to request the latest data received by the tracker from the sensor. BLESENSORINFO X – displays the data of the sensor under number X, where X is the number of the device from the BLESENSOR sensors list. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 29 Parameter X – device number (from BLESENSOR sensors list). Parameters A and B – limits of the acceptable temperature range. Parameters A and B can be omitted – current range will be displayed. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 30: Adding Ble Fuel Level Sensor In A Manual Mode, Viewing Added Sensors List

    FUEL X, * - clear cell X; where X = 0..2; FUEL * - clear the entire list of FLS addresses; FUEL - indicate the specified list added to the terminal. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 31 DTC – failure mask. Fields of the mask are described in the sensor protocol LMT - time passed since the last message from the sensor was received R - RSSI Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 32: Data Transmission To The Server From Connected Sensors

    Since “ADM BLE sensors” data block is universal, calculation formulas are not applied to these fields on the servers. To convert values to a readable format, the following calculation formulas described below should be applied to the incoming values. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 33 • Battery voltage Apply formula X*0.1. Acceptable values range after calculations is 0 – 4 25.5 value (after formula calculation) is considered as an error code «no signal from sensor». Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 34: Selecting Data To Be Transmitted To The Server From Adm31/32 Sensors

    In case of necessity to use full range, activate it. Setting is done by LIGHTPROTOCOL X command. LIGHTPROTOCOL X X = 0,1 – transmission format of illumination values 0 – shortened value format: Discreetness: integer value Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 35 65535 value is considered as an error code «no signal from sensor». 1 – full value format Discreetness: two decimal places Values range: 0.00 - 83865.60 42949672.95 value (after formula calculation) is considered as an error code «no signal from sensor». Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 36: Commands Description

    Bluetooth and GPRS) Example: Y=0…3 – number of the to manage the tracker via SMS. Example: PHOES (0)= (1)= memory cell to store the ADD ME +7xxxxxxxxxx,1 +7xxxxxxxxxx (2)= (3)= number Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 37 SatCnt=5 Stat=0x0000 Time - current time and date according to Greenwich Mean Time, Nav- validity coordinates, Lat - latitude, Lon - longitude, Speed-speed, SatCnt - number of satellites, Stat - status. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 38 Set the priority of SIM card. Example: Example: X=1 – priority of SIM0. SIMPRIORITY 0 SIMPRIORITY 0 X=2 – priority of SIM1. ICCID ICCID Command without Request of ICCID of installed SIM cards. parameters Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 39 Example: Example: server, server to which the terminal connects to DN0 www.test.ru:1000 HOST0= www.test.ru:1000 Y - server port. transmit information. A command without parameters returns current server address and port. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 40 X=30. A command without parameters returns Y – the recording period current settings. during parking in seconds, by default Y=300.The value of X must be less than Y. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 41 X=0 – input number (always Request information about the input settings. Example: 8000..15000, InFalse InInfo 0 0..3000 INPUT INPUT0 = 12000 Command without Request current measured voltage level in parameters the analog input (mV). Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 42 Example: OUTPUT 0 Example: OUTPUT 0 X=0 – disabled output. settings. RESET reset… Command without Restart of the unit. parameters UPDATE start update… Command without Run the firmware update process. parameters Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 43 A и B –range limits of acceptable temperature. LIGHTRANGE X,A,B X – sensor number from Set acceptable range for illumination sensor. BLESENSOR list A and B – range limits of acceptable illumination. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 44 FUELINFO X X – cell number of the FUEL Data request from bound fuel level sensors sensors list (detailed description in clause 6.5.4.1 Data receiving from connected fuel level sensors). Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 45 ADM31/32). LIGHTPROTOCOL X X=0 – shortened Select the transmission format of the X=1 – full illumination level (detailed description in clause 7.3 Selecting the transmission format of the illumination level). Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 46: Updating Tracker Software

    2) click «Update» in the pop-up window; 3) drag the firmware file to the appropriate field in the ADM Configurator window; 4) after updating the firmware, the tracker will reboot and become available for operation. Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 47: Updating The Tracker Software Via Gprs

    When there are signs of oxidation or other proofs of liquid penetration in the device housing; • a tracker without housing; • a tracker with signs of repair performed beyond the manufacturer's service center; Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 48: Marking And Packaging

    SHAIF.464512.001 ТУ and are valid for use. Manufacture date: Manufacturer: «Neomatica» LLC 24a Malkova Str., office 6, 614087, Perm, Russia Tel: +7 (342) 2-111-500. E-mail: sales@neomatica.com neomatica.com/en website: Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 49: Appendix A. Description Of The Bits Of The Field "Status

    Coordinates are fixed at the absence of movement External power supply of the tracker is switched off Sign of GNSS jamming GNSS jamming 1024 2048 4096 8192 Time is synchronized via the GSM 16384 32768 Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...

  • Page 50: Appendix B. Description Of Transmitted Parameters In Wialon

    Discrete state on input AIN1 Sign of tracker restart in10 Number of active SIM card (0 – SIM0, 1 – SIM1) in11 No connection with server in12 in13 Sign of low battery voltage Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
  • Page 51 CAN-LOG Data can43-can62 BLE tags (parallel transmission of several numbers) can59 ADM20: ADM21 tags can60 ADM20: RFID cards can62 BLE tags (transfer of all numbers in one field) can63 iButton Neomatica LLC. Vehicle tracker ADM333 GLONASS/GPS. Ver. 2.0 dd 01.02.2021...
