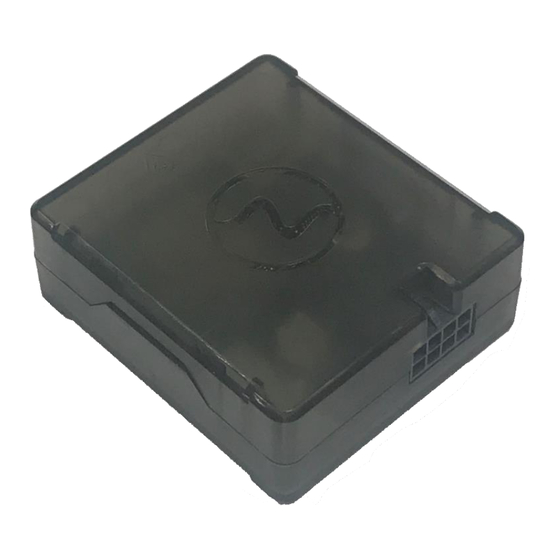

Neomatica ADM333 BLE Operation Manual

Vehicle gps tracker
Hide thumbs Also See for ADM333 BLE:
Table of Contents

Advertisement

Quick Links

Download this manual
«Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADM333 BLE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Neomatica ADM333 BLE

Summary of Contents for Neomatica ADM333 BLE

  • Page 1 «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 2: Table Of Contents

    13 Scope of supply ................................ 36 14 Acceptance certificate ............................. 36 Appendix A. Description of the bits of the field «STATUS» ..................37 Appendix B. Description of transmitted parameters in Wialon ................38 «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...
  • Page 3 GLONASS and GPS global navigation satellite systems functioning, GSM network, issues related to data transmission by means of short message service (SMS), GPRS and Internet. «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 4: Purpose And Function

    ⎯ travel direction changes by an angle which is greater than the pre-set one; ⎯ the straight-ahead travel is performed at a distance, which is longer than the pre-set one; «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 5: E Chn Ic A L Sp Ec If I C A T Ion S

    ⎯ device status; ⎯ data from the sensors connected to RS-485 and 1-Wire. 2 Technical specifications ⎯ GLONASS/GPS receiver: chipset: МТ3333 (MediaTek); frequency bands: GLONASS – L1 (СT-code), GPS - L1 (С/А code); «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...
  • Page 6 ⎯ Power voltage: +8...+45 V of unregulated direct current ⎯ Current consumption (at the supply voltage 12 V): ⎯ maximum: 200 mА ⎯ average: 30 mА ⎯ Dimensions: 55х49х20mm; ⎯ weight: not more than 39 g «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 7: Design

    ⎯ flashes twice - the GSM/GPRS unit is on, but there is no connection to the server; ⎯ flashes once - the tracker has established connection to the server and successfully transmits the information packets; «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 8: Disassembling And Assembling Of The Housing

    1. Make sure the wires of the battery are not squeezed and then install the scheme 2. Pressing to the scheme alternately from both the sides clamp the scheme holders 3. Install the upper part of the housing. «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 9: Installation

    If there are valid satellite data and an established connection to the server, the tracker will catch the time, coordinates and transmit information packets to the server, which will be marked by a single flashing of the green and blue LEDs. «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 10: Tracker Setting

    Figure 5 – ADM Configurator waiting for device connection 6) After a few seconds the connection between the tracker and the ADM Configurator program will be installed and the settings window will be displayed; «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 11: Configuration Using Commands

    SIM card installed in the tracker, where 0 (zero) is the default password (if the password has been changed, you should enter it instead of 0). The phone number from which this «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...
  • Page 12 • Sending commands using TCP connection To configure via GPRS, authorization is not required. The tracker receives the commands from the server via TCP-connection that is used for data transmission. «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 13: Configuring Sim

    5.4 Setting connection to the server Configure the IP address and port of the server (host) using «SETHOST0» or "DN0" command. Change of these parameters is possible in the graphical interface of the program "ADM Configurator". «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 14: Setting Data Transmission

    The more detailed route is the more route points will be transmitted to the server, this increases the traffic consumption. Less detailed route reduces traffic consumption. • TRACKSET command discription: TRACKSET X X –number of route drawing preset X = 0..4 «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 15: Expert Setting Of Tracking Parameters

    • Setting using TRACK command To set all the parameters send TRACK command twice. The degree of road turns detalization is set by sending TRACK command with three parameters. Command format: TRACK M,A,B «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...
  • Page 16 If the set threshold values are exceeded, a route point will be recorded. TRACK 255, X,Y,Z – First parameter should always be equal to 255. For all speed modes these parameters are the same. X – minimum speed «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 17: Setting The Fixation (Freezing) Of Coordinates During The Parking

    In this way, when the ignition is off, an event will be formed at the input and the coordinates fixation will be initiated. • Examples of using INSTATIC command: Coordinates fixation at 0 on input AIN0 INSTATIC 0,0 «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 18: Coordinates Fixation According To Vibration Level

    10 seconds (by default) the coordinates are fixed. The function is enabled by ACCELSTATIC 10 command. The function is disabled by ACCELSTATIC 255 command. «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 19: Operation Mode

    The routes record is done only using the following criteria: ⎯ at tracker start up; ⎯ change of discrete state at input; ⎯ regarding the parking period; ⎯ regarding alarming period; ⎯ at change of device status «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 20: Connection Of Extra Devices

    The measured voltage levels are registered by the tracker and transmitted to the server. When changing the discrete state, an extraordinary packet is sent. «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 21: Discrete Output

    It is allowed to connect devices with the maximum current consumption not exceeding 100mA, otherwise there is a risk to damage the tracker. When a more powerful load commutation is needed, it is necessary to use a relay. «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 22: Rs-485

    6.3.1 Connection of digital fuel level sensor Up to three fuel level sensors can be connected simultaneously. The tracker alternately interrogates the sensors and transmits the values of fuel levels and temperature in the data packet "FUEL". «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...
  • Page 23 The addresses sequence corresponds to the sequence of the FUEL fields transmitted to the server. Use FUEL command to request the last data received by the tracker from fuel level sensor «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 24: 1-Wire

    To see the data from any sensor connected to 1-Wire CAN use OWTEMP X command, where X- sensor sequence number (0…7). 6.4.2 Connection of iButton Connection and setting order: ⎯ connect the reader of iButton DS1990 to the CAN of 1-wire; «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...
  • Page 25 The previous clause in such a case can be ignored, since this command activates the reader request and activates discrete output) ⎯ use PROTOCOL command to activate “CAN” data packet transmission. «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 26: Commands Description

    Adding a phone number from which you Bluetooth and GPRS) Example: Y=0…3 – number plan to manage the tracker via SMS. Example: PHOES (0)= (1)= memory location for storing the ADD ME +7xxxxxxxxxx,1 +7xxxxxxxxxx (2)= (3)= number «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...
  • Page 27 Time - current time and date according to Greenwich Mean Time, Nav – coordinates validity, Lat - latitude, Lon - longitude, Speed - speed, SatCnt - number of satellites, Stat - status. «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...
  • Page 28 Set the priority of SIM cards. Example: Example: X=1 – priority SIM0. X=2 – priority SIM1. SIMPRIORITY 0 SIMPRIORITY 0 ICCID ICCID Command without parameters. Request of ICCID of installed SIM cards. «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...
  • Page 29 X – number determining the PROTOCOL X PROTOCOL X Setting the data to be transmitted to the data set to be transmitted server (detailed description see in 5.4) «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...
  • Page 30 X= 0…4 TRACKSET X The response displays a detailed Set the quality of routes drawing configuration More details in clause 5.6.1 Selecting presets of route drawing quality parameters of the route drawing. «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...
  • Page 31 A command INSTATIC 1,0 INSTATIC 1,0 without parameters returns current one. X=255 –disabled function; setting. By default, no one input is set to enable the coordinates fixation mode. «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...
  • Page 32 Addresses 0,1,2 are set by default. Example: LLS485 3,20,55 Example: LLS485 3,20,55 interface. FUEL FUEL Command without parameters Shows current readings of fuel level F0=1457,T0=27; F1=0,T1= sensors, connected RS-485 0; F2=0,T2=0 interface. «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...
  • Page 33 Viewing current data of the temperature sensor connected to 1-Wire. IBUTTON X,Y X=0..1–disabling/enabling of Disabling/enabling iButton readings. iButton readings Activation/disabling of the output to detect iButton. Y=0..1– Activation/disabling of the output to detect iButton. «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 34: Updating Tracker Software

    ATTENTION! Do not switch off the tracker during the firmware upgrade until the tracker is detected by the setup program. Otherwise, it is possible to damage the software, which must be restored in the service center of the manufacturer «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 35: Updating The Tracker Software Via Gprs

    ⎯ a tracker with signs of electrical and/or other damages caused as a result of unacceptable changes in external power network parameters or improper use of the tracker; ⎯ a tracker disabled because of an unauthorized software upgrade. «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 36: Marking And Packaging

    Trackers ADM333 GLONASS/GPS-GSM/GPRS SHAIF.464512.001-10 in quantity of _____ pcs. correspond to SHAIF.464512.001 TC and are valid for use. Manufacture date: Manufacturer: «Neomatica»LLC 24a Malkova Str., office 6, 614087, Perm, Russia Tel: +7 (342) 2-111-500. E-mail: sale@neomatica.ru website: http://neomatica.ru «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 37: Appendix A. Description Of The Bits Of The Field "Status

    Coordinates are fixed at the absence of movement External power supply of the tracker is switched off Sign of GNSS jamming GNSS jamming 1024 2048 4096 8192 Time is synchronized according to GSM 16384 32768 «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...

  • Page 38: Appendix B. Description Of Transmitted Parameters In Wialon

    Discrete state on input AIN1 Sign of tracker restart Number of active SIM card (0 – SIM0, 1 – SIM1) in10 in11 No connection to server in12 in13 Sign of low voltage in in-built battery «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...
  • Page 39 Values of temperature sensor connected via 1-wire Can55 Values of temperature sensor connected via 1-wire Can56 Values of temperature sensor connected via 1-wire Can57 Values of temperature sensor connected via 1-wire Can63 Number of IBUTTON «Neomatica» Ltd. Vehicle tracker ADM333 GLONASS/GPS. Ver.1.2 dd 13.09.2019...
