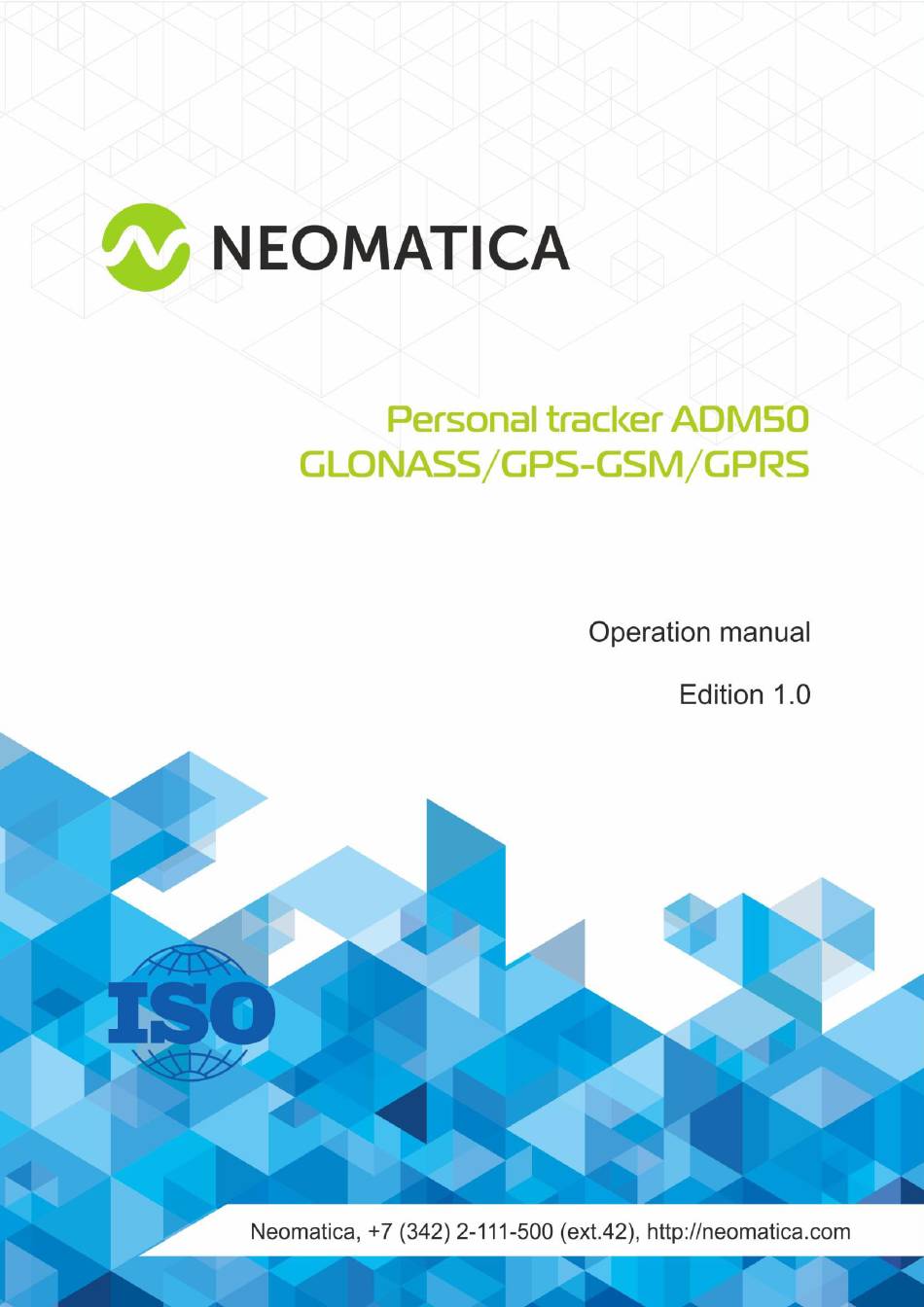

  • Page 1 Neomatica. LLC. Tracker ADM50 GLONASS / GPS. Rev.1.2 dated 03.10.2018...
  • Page 2 This Guide extends to the telematic terminal ADM50 (hereinafter referred as terminal or tracker), determines the order of its operation, and also contains a description of the tracker functioning and its management. Installation and configuration of the tracker should be carried out by qualified specialists to ensure its proper functioning.

  • Page 3: Table Of Contents

    8.3 Updating the terminal software via USB using the firmware file..........12 9 Storage and transportation requirements ..............13 Warranty ......................... 13 Marking and packaging ..................... 13 Disposal ........................14 Neomatica. LLC. Tracker ADM50 GLONASS / GPS. Rev.1.2 dated 03.10.2018...

  • Page 4: Purpose And Function

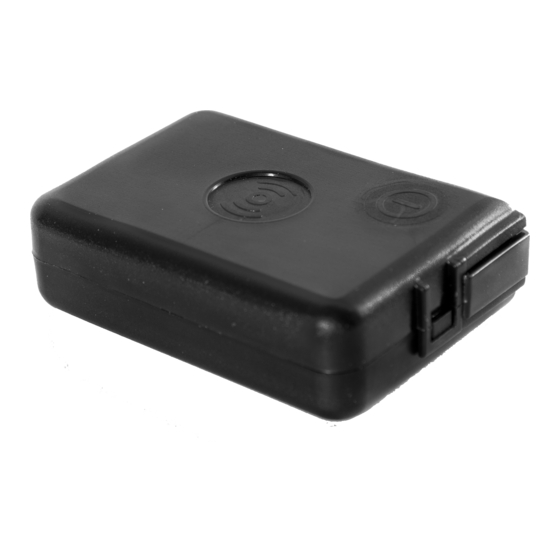

    1 Purpose and Function The ADM50 terminal consists of a microcontroller, non-volatile memory, a GLONASS/GPS module, a GSM / GPRS module, an accelerometer, an alarm button. Picture 1 — General view of the ADM50 GLONASS/GPS module is for receiving signals from GLONASS/GPS satellites and determining the geographical coordinates of the location (latitude, longitude and altitude), as well as the exact time (GMT), speed and moving direction.

  • Page 5: Technical Specifications

    To turn off the tracker, press and hold the Power button in the pressed state. When the button is pressed, the three LEDs will light up, and after 3 seconds the LEDs will turn off. Release the button. Tracker switched off. Neomatica. LLC. Tracker ADM50 GLONASS / GPS. Rev.1.2 dated 03.10.2018...

  • Page 6: Automatic Switching-On By The Charger Connection

    - there is data from the GLONASS/GPS module and the data is valid; • no flashes - GLONASS / GPS module is turned off or the ADM50 is in a sleeping state. In the beacon mode, the LED does not light regardless of the GLONASS/GPS module state during sleep.

  • Page 7: Blue Led - Gsm Module Status

    The ADM50 terminal can be in one of two modes: Beacon or Tracker. The operating mode of the ADM50 can be selected locally by using the configurator via the USB interface or remotely by sending commands via GPRS or SMS.

  • Page 8: Beacon Mode

    ADM50 activity; • sleep time after error — the time for which the ADM50 will be in sleep state, if during the activity were not executed all the tasks or errors occurred, for example, it was not possible to establish connection to the server.

  • Page 9: Tracker Mode

    SMS message containing a hyperlink with the last valid coordinates. 5.2 Tracker Mode In Tracker mode, the ADM50 determines the coordinates every two seconds, filters the resulting coordinates with a series of filters and if the coordinates satisfy all conditions, generates data packets and sends them to the server.

  • Page 10: Functioning Of The Sos Button

    PERIOD and TRACK commands (see the Appendix A). In the absence of communication with the server, the tracker writes information packets to the "black box" and, upon communication with the server, carries out their unloading. In Tracker mode, the ADM50 never goes into sleep states, but has some energy-saving features.

  • Page 11: Low Battery Warning

    8.1 Updating the terminal software via USB Configuration program checks the valid firmware version in the upgrade server, and if necessary downloads the firmware file. To upgrade firmware, do the following: Neomatica. LLC. Tracker ADM50 GLONASS / GPS. Rev.1.2 dated 03.10.2018...

  • Page 12: Updating The Terminal Software Via Gprs

    “Settings” section in the “Device” tab, press “Flash the file”; press “Yes” in the popup; drag the firmware file in the respective field in the configurator window; Neomatica. LLC. Tracker ADM50 GLONASS / GPS. Rev.1.2 dated 03.10.2018...

  • Page 13: Storage And Transportation Requirements

    11 Marking and packaging Marking is placed on the terminal housing. The terminals are packed in individual boxes, which protect them during transportation and storage. Multipack is possible. Neomatica. LLC. Tracker ADM50 GLONASS / GPS. Rev.1.2 dated 03.10.2018...

  • Page 14: Disposal

    13 Scope of supply Name Quantity Terminal ADM50 Power Supply - Charger Datasheet Manufacturer: Neomatica LLC 24а Malkova, office 7, Perm 614087, Russia Phone: +7 (342) 2-111-500 (ext. 42). E-mail: sales@neomatica.com Web-site: http://neomatica.com Neomatica. LLC. Tracker ADM50 GLONASS / GPS. Rev.1.2 dated 03.10.2018...
  • Page 15 Lon=56.2593 Speed=0.0 GPS – the current number of the information SatCnt=5 Stat=0x0000 packet, Time – current time and date according to Greenwich Mean Time, Nav – coordinates validity, Lat – latitude, Neomatica. LLC. Tracker ADM50 GLONASS / GPS. Rev.1.2 dated 03.10.2018...
  • Page 16 X=internet.beeline.ru Y – current settings GPRS. Example: Example: login, by default Y=beeline GPRS0: APN= SETGPRS0 Z – password, by default internet.beeline.ru,user= internet.beeline.ru beeline,pass= beeline Z=beeline beeline,beeline Neomatica. LLC. Tracker ADM50 GLONASS / GPS. Rev.1.2 dated 03.10.2018...
  • Page 17 SETHOST0 HOST0= www.test.ru:1000 www.test.ru:1000 X=0 – Beacon mode DMODE X DMODE=X Selecting current mode of the tracker. X=1 – Tracker mode Example: Example: DMODE 1 DMODE=1 Neomatica. LLC. Tracker ADM50 GLONASS / GPS. Rev.1.2 dated 03.10.2018...
  • Page 18 Setting the recording period in the memory of movement in seconds information packets during the movement and in the "Statics" modes. Example: PERIOD Example: PERIOD Y – recording period in modes 60,300 min=60 max=300 "Statics" in seconds. Neomatica. LLC. Tracker ADM50 GLONASS / GPS. Rev.1.2 dated 03.10.2018...
  • Page 19 SOSPOL 0 X=0 – Power button POFF X POFF=X Setting the prohibition of disabling the tracker using unlocked. the Power button. X=1 – Power button Example: POFF 0 Example: POFF=0 locked. Neomatica. LLC. Tracker ADM50 GLONASS / GPS. Rev.1.2 dated 03.10.2018...
  • Page 20 Request a list of phone numbers for sending alarm (1)=79876543211 SMS. (2)=79876543212 (3)= UPDATE Start update Firmware update via GPRS channel. ERASE EEPROM Reset to default settings. ERASE FLASH Cleaning the "black box". Neomatica. LLC. Tracker ADM50 GLONASS / GPS. Rev.1.2 dated 03.10.2018...
  • Page 21 Note: it is necessary to enter space between the command name and its parameter (or the command name and its parameters). Parameters of commands are separated by comma without spaces, except for the DN0 X:Y command, where between the parameters X and Y it is necessary to enter a colon. Neomatica. LLC. Tracker ADM50 GLONASS / GPS. Rev.1.2 dated 03.10.2018...
  • Page 22 Coordinates were fixed within absence of movement External power of the terminal is disconnected Button "SOS" is pressed 1024 2048 4096 8192 Coordinates are determined using GSM base stations 16384 32768 Neomatica. LLC. Tracker ADM50 GLONASS / GPS. Rev.1.2 dated 03.10.2018...
