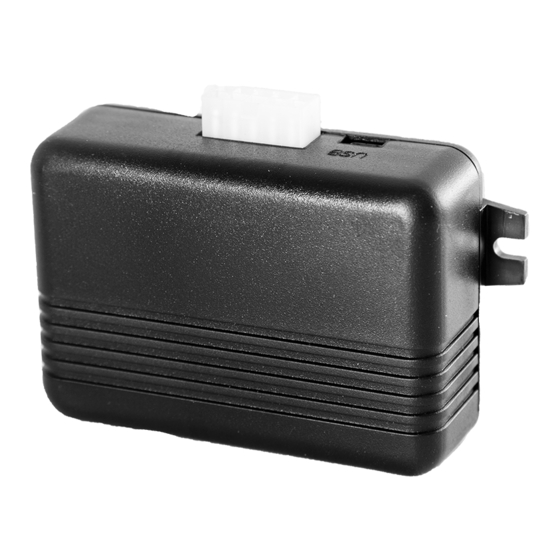

Neomatica ADM100 Operation Manual

Telematic terminal glonass/gps-gsm/gprs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADM100 and is the answer not in the manual?

Questions and answers

Related Manuals for Neomatica ADM100

Summary of Contents for Neomatica ADM100

  • Page 2: Table Of Contents

    9.1 Tracker software upgrading via USB ..............46 9.2 Terminal's software upgrading via USB with a firmware file ....... 46 9.3 Tracker software upgrade via GPRS ..............47 10 Storage and transportation requirements ................47 Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 3 13 Disposal ..........................48 14 Scope of supply ......................... 48 Appendix B. WIALON system parameters description ..............50 Appendix C. CAN-LOG parameters desc ription .............. 52 Appendix D. ISO 9001:2015 ......................53 Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 4 This Operation manual relates to the tracker ADM100 (hereinafter referred as terminal) and describes the procedure of its installation and connection as well as its function and settings. The Operation manual is designed for professionals who have familiarized themselves with the rules of repair and installation works execution in vehicles and who have special professional knowledge in electronic and electric equipment used on various transport means.

  • Page 5: Application And Operation Principles

    Data transmission is possible only if there is a mobile connection signal of the GSM 850/900/1800/1900 standard supporting the batch data transmission (GPRS). Picture1 — General view of the terminal Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 6 • values from pulse inputs; • data about events occurred; • data from fuel level sensors connected to the RS-485 interface; • discrete outputs condition; • device condition (Appendix A). Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 7: Technical Features

    • Weight: not more than 125 g 3 Design The tracker consists of a microcontroller, energy-independent memory, GLONASS/GPS- module, a GSM-module, a digital interface RS-485, analogue (discrete) inputs, pulse (discrete) inputs, a discrete output. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 8: Installation Procedure

    The internal GLONASS/GPS and GSM antennas are used in the tracker this allows its installation almost in any place of the vehicle. However, it is not recommended to install it in the Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 9 Install the melting fuse as close as possible to the vehicle network entry because this is very important when connecting to the tracker battery. P ic t ur e 2 — C on t ac ts ar r an g em ent Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 10: Setting Of The Tracker

    10V to 40V of the direct current and at least the 1A current. 5 Setting of the tracker The tracker is controlled by sets of commands sent via SMS, GPRS or USB. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 11: Server Connection Settings

    Navigation data and the data collected from different sensors, which are sent from the tracker to the server, are divided into blocks. Depending on the functions used the set of transmitted data is defined by the «PROTOCOL» command. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 12: Setting Of Coordinates Freezing During A Parking

    Switching coordinates freezing on and off during short-term stops is performed by the «PSTATIC» command. This method does not require extra signal connection to the tracker, but does not exclude a slight coordinates dispersion in adverse conditions of receiving signals from satellites. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 13: Additional Equipment Connection

    INTRUE IN,X1,Y1 IN – number of the analogue input (0 or 1) X1 – the lower limit of the logical “1” range Y1 – the upper limit of the logical “1” range Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 14: Discrete (Pulse) Inputs

    (pulse) inputs to the server it is necessary to activate the «IN_D» data block with the «PROTOCOL» command. Depending on the operation mode selected, the response to the «INPUT» command will contain frequency, flowmeter accumulated values or current state of the discrete input Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 15: Frequency Meter" Mode

    Picture 5 — Connection of fuel level sensor with frequency output 6.2.2 «Flowmeter» mode «Flowmeter» mode allows counting pulses and, in the meantime, saving data in the energy- independent memory. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 16: Differential Flowmeter" Mode

    – to the input DIN1. Calculation is made according to the formula DIN0 = DIN0 - DIN1 (the difference is transmitted to the server instead of DIN0). DIN1 is transmitted without a change. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 17: Discrete Input

    “1” is transmitted during the open circuit state (in a disconnected condition), the logical “0” - during the close to ground state (vehicle network minus). Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 18: Discrete Output

    Discrete output (OUT) allows handling extra equipment. When switched on, the output is connected to the minus of the tracker external power supply, and the connection should be performed according to the picture 9. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 19 It is allowed to connect devices with the maximum current consumption not exceeding 100mA, otherwise there is a risk to damage the tracker. When a more powerful load commutation is needed, it is necessary to use a relay. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 20 With the «SPEEDALARM» command set the speed value, whose violation should be notified to the driver. With the «ACCELALARM» command set the acceleration and braking values, whose violation should be notified to the driver Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 21: Rs-485 Interface

    6.4.2 Working with a CAN-LOG controller To connect the universal CAN-LOG CAN-bus controller a RS-232/RS-485 converter is used. Connect according to the layout (see picture 12). With the «CANLOG 1» command set the Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 22 CAN-LOG. With the «PROTOCOL» command activate the CAN data block transmission. Picture 12 –CAN-LOG connection layout using a universal interfaces converter Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 23: Work With Sensor Eurosens Delta Rs

    The repeated command rewrites the preset parameters. Command parameters format: EUROSENSENABLED X0,Y0,X1,Y1,X2,Y2…. X — requested data code Y — field number Y=3 – two fields simultaneous transmission Example: EUROSENSENABLED 0x00,1,0x10,2,0x14,2,0x15,3 Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 24 0.01 l chamber in nominal mode, 0.01 l 0x16 Accumulated fuel amount in backward Accumulated fuel amount in backward chamber in “overload” mode, 0.01 l chamber in “cheat” mode, 0.01 l Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 25: Tachograph Connection

    КThe ODM command displays the current value of the active odometer, meters. To transmit the driver card number instead of data from analogue inputs AIN4 and AIN5, insert the «TACHOTRCARDNUMBER X» command. X=0 — transmission disabled, X=1 — transmission enabled. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 26: Working With Rfid-Reader Adm20

    Connect RFID-reader ADM20 to the tracker's RS-485 bus. Coordinate the work of the tracker and RFID-reader ADM20 (setting procedure is described in the p. 5 of the Operation Manual “Receiver/transmitter combination ADM20”) Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 27: Extra Functions Setting

    (AIN0 and AIN1). To transmit the mobile signal level, it is recommended to use AIN2…AIN5. The «GSMSIGNAL X» command allows selecting the analogue input number. When using the «PROTOCOL», it is necessary to activate IN_A data block transmission (analogue inputs). Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 28: Saving Battery Charge When Parking

    «EVENTLISTSHOW», «EVENTLISTCLEAR» commands. Phone numbers of the EVENTLIST might be duplicated in the list of numbers authorized by the ADD ME command, but the SMS messages are sent only to the numbers from the EVENTLIST. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 29 “1” range. To exit the arming mode the voltage value in this input should be within the logical “0”. Deactivation of such an arming mode is performed by the «INGUARDMODECLEAR» command. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 30: Commands Description

    PHOES (0)= (1)= +7xxxxxxxxxx (2)= (3)= X – password by default “0” PHONES X PHOES (0)= (1)= (2)= (3)= Authorized phone numbers request. example PHONES 1234 example PHONES (0)= (1)= +7xxxxxxxxxx (2)= (3)= Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 31 X=internet.beeline.ru; command without parameters restores to the SETGPRS0 internet.mts.ru, example: Y - login by default current settings GPRS for SIM-chip. mts,mts GPRS: APN=internet.mts.ru, Y=beeline; Z – password by default user=mts, pass=mts Z=beeline. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 32 After this command execution the current data packet number is reset to zero and the tracker is rebooted. ERASE EEPROM ERASE EEPROM Command without parameters Restoring to factory settings and tracker rebooting. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 33 Hz, reader value, logical level «0 example: example: INPUT 1 INPUT1 = 2374 » «1 FUEL FUEL F0=234, T0=21; Current readings request from a fuel level sensor F1=871, T1=20; F2=0, T2=0; connected based on RS-485 interface. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 34 Not more than 4 phone numbers are stored. EventListAdd 7xxxxxxxxxx example: Number was added to event list EventListClear Event list was cleared Removing all numbers from the list of phone numbers for SMS sending Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 35 Ymax =[0..36300]. X=0..1 – input number InTrueSmsText X,Y Input X TrueSms=Y Setting SMS text sent when the voltage falls Y – text message no longer within the logical “1” range. than 10 characters Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 36 Clearing input number for the activated guard mode. X=0..5 – input number InInfo X example: Information request about input settings Input 2: InTrue 8000..15000, example: InFalse 0..3000, InGuardMode InInfo 2 0, InTrueSms 2, SmsTxt ‘ALARM‘ Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 37 Y=0..25 – maximum HDOP. SATHDOP 3,5.5 MinSat=3 MaxHDOP=5.5 with HDOP being bigger than Y, and when the By default X=6, Y=2. number of satellites is fewer than X, will be transmitted as invalid. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 38 ODOMETR = 128 (odometer value), X – phone number in NUMBER X IDN 1234 IMEI IMEI and device number request «7xxxxxxxxxx» format 354123456789012 The answer is sent via SMS to the indicated number Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 39 X in By default order to avoid too many points at low speeds. X=3, Y=10, Z=500, A=25 The change of this parameter may cause improper function of the tracker. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 40 X – access password for the USB X PASS OK Entering temporary access password tracker set by the “PASS” example: USB 1234 example: PASS OK configurator. Access is authorized before reboot. command Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 41 Setting the procedure for data downloading from “black box” to the server. example: example: server in a timely manner X=0 – sending data to the SERIAL 1 SERIAL 1 server according to their relevance - default value Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 42 Put the mobile operator in the white list (for SIM- Y – mobile operator code example: example: card). Boxes should be filled in order. Command Y=0 – remove entry OPSWHITELIST0 0,25099 OPSWHITELIST0 0,25099 without parameters displays the current list. Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 43 X=0..4 – reader number; ADM20 X,Y,Z ADM20[X] Y,Z ready Setting the reader sequence number and – example: example: address can-bus choosing the operation mode. ADM20 2,1,6 ADM20[2] 1,6 ready RS485; Z – operation mode Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 44 TACHOGETDDD connection monitoring system TACHOGETDDD 1 start upload X – TACHOGETCARDNUMBE TACHOGETCARDNUMBE Driver's card number request driver's card slot number R X: …. example: example: TACHOGETCARDNUMBE R 1: …. TACHOGETCARDNUMBE Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 45 EUROSENSE DELTA RS sensor address X=255 – function disabled. example: example: installation or sensor scanning disabling EUROSENSADDRESS 3 EUROSENSADDRESS 3 EUROSENSVALUES Request for current values of EUROSENSE DELTA RS sensor pre-set parameters Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 46: Tracker Software Upgrading

    • after having connected the tracker to the program, open the “Settings” section in the “Device” tab, press “Flash the file”; • press “Yes” in the popup; • drag the firmware file in the respective field in the configurator window; Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 47: Tracker Software Upgrade Via Gprs

    • a tracker with mechanical damages and defects (cracks and chips, dents, signs of impacts, etc.) caused by consumer as a result of handling, storage and transportation rules violation. When there are signs of oxidation or other proofs of liquid penetration in the device housing; Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 48: Marking And Packaging

    Datasheet Fuse holder Fuse for 2A current Producer: «NEOMATICA» LLC 614087, Russia, Perm, 24A Malkova Str., office 6. Contact phone +7 (342) 2-111-500 (ext.42) E-mail: sales@neomatica.com web site: http://neomatica.com Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 49 Terminal external power supply off Alarm went off 1024 Battery high voltage indicator 2048 Sign of using microSD card as “black box” 4096 Case opening detected 8192 Coordinates are defined by GSM base stations 16384 32768 Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 50: Appendix B. Wialon System Parameters Description

    Condition of discrete sensor set for D_IN0 input Condition of discrete sensor set for D_IN1 input Terminal reboot indicator in10 Active SIM card number in11 No connection to the server in12 Guard mode enabled Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
  • Page 51 High power supply voltage indicator in21 in22 Case opened in23 Coordinates are defined by GSM base stations in24 Headset button is pressed out1 Terminal output OUT0 activated out2 out3 out4 Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...

  • Page 52: Appendix C. Can-Log Parameters Description

    Appendix C. CAN-LOG parameters description Table C.1. Description of parameters transmitted in the Wialon system when connecting CAN-LOG to ADM100 Parameter Name Unit of measurement can0 E_cons total fuel consumption liter can1 H_RPM Engine rmp 50/min can2 I_temp Engine temperature...

  • Page 53: Appendix D. Iso 9001:2015

    Appendix D. ISO 9001:2015 Neomatica, LLC. Tracker ADM100 GLONASS/GPS. Ed.1.5. dd 07.11.2018...
