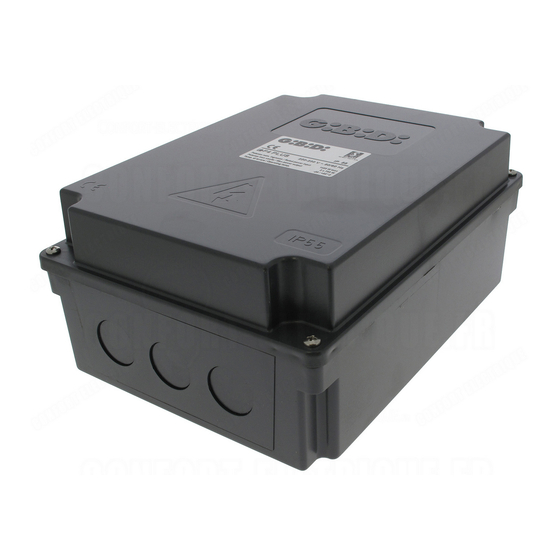

BA24
BA24 - (AS06300)
Apparecchiatura elettronica
ISTRUZIONI PER L'INSTALLAZIONE
Electronic control unit
INSTRUCTIONS FOR INSTALLATION
IT
UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS06300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GiBiDi AS06300

  • Page 1 BA24 BA24 - (AS06300) Apparecchiatura elettronica ISTRUZIONI PER L’INSTALLAZIONE Electronic control unit INSTRUCTIONS FOR INSTALLATION...
  • Page 2 BA24 SCHEMA ELETTRICO / ELECTRICAL CONNECTION 24Vac ~230Vac 24Vac LCD1 BA24 18 19 20 21 22 23 24 25 26 27 28 29 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 LED STATUS...
  • Page 3 BA24 INSTALLAZIONE / INSTALLATION FOTO TEST / PHOTO TEST 16 17 16 17 3 4 5...
  • Page 4 BA24 FOTO TEST / PHOTO TEST 16 17 16 17 3 4 5 3 4 5...
  • Page 5 BA24 LUCE DI CORTESIA / COURTESY LIGHT ELECTRICAL BOX NA NC 230Vac OROLOGIO ESTERNO / EXTERNAL CLOCK OROLOGIO ESTERNO EXTERNAL CLOCK NA NC...
  • Page 6 BA24 Apparecchiatura BA24 / AS06300 Apparecchiatura elettronica per l'automazione Tipo di uno o due motori per cancelli a battente, cancelli scorrevoli, porte basculanti e barriere a 24Vdc Alimentazione 230Vac monofase 50/60 Hz N° motori 1 o 2 Alimentazione motore 24 Vdc...
  • Page 7 BA24 • Scelta del dispositivo di sicurezza con contatto N.C. o resistivo 8K2. • Abilitazione antischiacciamento (inversione del moto per 2 secondi e blocco) o rilevamento amperometrico per fine corsa. • Programmazione di: chiusura automatica, chiusura rapida, prelampeggio, colpo d'ariete, colpo finale in apertura e chiusura, luce di cortesia, tempi aggiuntivi a fine manovra, lampeggiatore fisso o intermittente, gestione dell'orologio esterno con 3 modalità...
  • Page 8 BA24 AVVERTENZE PER L’UTENTE In caso di guasto o anomalie di funzionamento staccare l'alimentazione a monte dell'apparecchiatura e chiamare l'assistenza tecnica. Verificare periodicamente il funzionamento delle sicurezze. Le eventuali riparazioni devono essere eseguite da personale specializzato usando materiali originali e certificati. Il prodotto non deve essere usato da bambini o persone con ridotte capacità...
  • Page 9 BA24 START Ingresso START (NA) Ingresso PEDONALE (NA) Ingresso STOP (NC) STOP Se non utilizzato ponticellare con morsetto n° 29 Ingresso FINECORSA APRE MOTORE 1 (NC) FCAM1 Se non utilizzato escludere in fase di programmazione Ingresso FINECORSA CHIUDE MOTORE 1 (NC) FCCM1 Se non utilizzato escludere in fase di programmazione Ingresso FINECORSA APRE MOTORE 2 (NC)
  • Page 10 BA24 LED DI SEGNALAZIONE Posizione Colore Segnale Descrizione Si accende quando viene attivato il comando START e si spegne subito dopo VERDE START Si accende quando viene attivato il comando PEDONALE e si spegne subito dopo VERDE PEDONALE Sempre acceso. Si spegne quando viene attivato il comando STOP ROSSO STOP Sempre acceso.
  • Page 11 BA24 VERIFICA INGRESSI ABILITATI Durante la fase di riposo (cancello chiuso) la centrale effettua un test per verificare la congruenza tra l'abilitazione di un ingresso a menu e lo stato del relativo contatto. Segnale Contatto Aperto Contatto Chiuso FOTOCELLULA 1 F F C L S _ F C L S FOTOCELLULA 2...
  • Page 12 BA24 Modalità AVANZATA Quando viene richiesta la password digitare quella di default 1234. In questo modo sarà possibile accedere a tutti i menu. ATTENZIONE: Se si modifica la password nel menu E92, cioè se si cambia la password di default 1234 con altra password, poi non sarà...
  • Page 13 BA24 Lampeggia la terza cifra. Se si desidera accedere alla programmazione AVANZATA, con i tasti + o - digitare la terza cifra del codice installatore impostato nel menu E92. 0 0 0 0 Una volta arrivati alla cifra voluta confermare con il tasto OK e passare al punto successivo.
  • Page 14 BA24 MENU A: SELEZIONE CONFIGURAZIONI DI IMPIANTO E LOGICHE DI FUNZIONAMENTO Esempio Programmazione MENU A Quando compaiono sul display i 5 menu principali (lettere A C F H E oppure solo alcune a seconda di quale password è stata utilizzata A C F H E per accedere alla programmazione) fare lampeggiare la lettera A muovendosi con i tasti + o –...
  • Page 15 BA24 Abilita la Logica PASSO-PASSO CON STOP. Funzionamento: START apre ® START successivo stop ® START successivo ® chiude LOGICA START successivo apre ® PASSO – PASSO CON STOP Se è attivata la chiusura automatica (menu A5) e la fase apre è arrivata a fine ciclo, trascorso il tempo di pausa (menu H9) la centrale chiude automaticamente.
  • Page 16 BA24 Disabilita la chiusura automatica. Se attiva l'apertura pedonale il pulsante PEDONALE determinerà la chiusura. Se attiva l'apertura totale, lo START determinerà la chiusura e il pulsante PEDONALE sarà ininfluente. Abilitata la chiusura automatica totale H9. Abilitata la chiusura automatica pedonale H11. CHIUSURA AUTOMATICA Pulsante PEDONALE in pausa ininfluente.
  • Page 17 BA24 Descrizione MENU C Menu Funzione Stato Descrizione Disabilita la funzione chiusura rapida. Abilita la funzione chiusura rapida. CHIUSURA RAPIDA Funzionamento: Attiva solo su fotocellula 1. Riduce il tempo pausa a 3 s in seguito all'intercettamento e alla successiva liberazione delle fotocellule. Uscita lampeggiatore lampeggiante.
  • Page 18 BA24 Abilita la funzione colpo d'ariete sia in apertura che in chiusura per favorire lo sgancio dell'elettroserratura. Funzionamento: al comando di START, si avrà in sequenza: - attivazione dell'elettroserratura; COLPO D’ARIETE - impulso in chiusura / apertura di 1 s; - apertura / chiusura;...
  • Page 19 BA24 Disabilita la funzione “Mantenimento blocco oleodinamico”. Abilita la funzione “Mantenimento blocco oleodinamico” SOLO PER OPERATORI OLEODINAMICI. Funzionamento: MANTENIMENTO BLOCCO Se nelle ultime 5 ore il cancello non ha effettuato manovre viene dato OLEODINAMICO un impulso in chiusura di 2 s. L'attivazione del pulsante STOP in qualsiasi situazione disabilita la funzione.
  • Page 20 BA24 Lampeggia la cifra successiva (destra). 0 0 0 5 Con i tasti + e – si modifica il valore di tale cifra. Il pulsante ESC consente di spostare la cifra lampeggiante verso sinistra fino alla prima cifra utile. Con il tasto OK si conferma e si passa al punto successivo. Ricompare l'indicazione del menu F2.
  • Page 21 BA24 MENU H: REGOLAZIONE TEMPI Esempio Programmazione MENU H Quando compaiono sul display i 5 menu principali (lettere A C F H E oppure solo alcune a seconda di quale password è stata utilizzata A C F H E per accedere alla programmazione) fare lampeggiare la lettera H muovendosi con i tasti + o –...
  • Page 22: Table Of Contents

    BA24 Ricompare l'indicazione del menu H1. Ora con il tasto ESC si torna al livello superiore (menu A, C, F, H, E). Tutti i tempi possono essere impostati a intervalli di 1 s Descrizione MENU H Menu Funzione Descrizione Tempo di apertura anta 1. TEMPO APERTURA MOTORE 1 Tmax 300 s.
  • Page 23 BA24 MENU E: ATTIVAZIONI ED ESCLUSIONI Nel menu E sono presenti sottomenu che hanno modalità differenti di programmazione. I menu da E1 fino a E89 hanno la stessa modalità di programmazione del menu C; i menu identificati da E90 in poi hanno la stessa modalità...
  • Page 24: Menu Funzione

    BA24 Le cifre sul lcd sono ancora fisse ad indicare che non è possibile alcuna modifica. 0 0 0 5 I tasti + o – sono ininfluenti. Con il tasto ESC si torna al livello superiore. Con il tasto OK si entra nel il menu selezionato e le cifre cominciano a lampeggiare.
  • Page 25 BA24 Disabilita il test dei dispositivi di sicurezza. Abilita il test dei dispositivi di sicurezza. Funzionamento: FASE 1: al comando di START o PEDONALE viene testato il circuito amperometrico. Se viene rilevata una anomalia verrà segnalata con 4 lampeggi lenti (2 s) del lampeggiatore. FASE 2: se abilitata la costa con contatto NC (menu C9-3), al comando di START o PEDONALE viene tolta alimentazione ai TEST DISPOSITIVI...
  • Page 26 BA24 OROLOGIO ESTERNO – COMANDO DI APERTURA E CHIUSURA AUTOMATICO Abilita l'ingresso RISERVA per il collegamento di un orologio esterno. Funzionamento: Con il contatto sull'ingresso RISERVA chiuso si attiverà un comando OROLOGIO ESTERNO di apertura automatico (senza necessità di un comando di START). La porta aprirà...
  • Page 27 BA24 TEMPO AGGIUNTIVO T3 Tempo aggiuntivo alla fine del tempo lavoro che consente di continuare la manovra con velocità rallentata per permettere l'accostamento dell'anta anche in presenza di vento. La funzione T3 non è attiva con la configurazione scorrevole. FUNZIONAMENTO FINECORSA E AMPEROMETRICA Nel caso di abilitazione della funzione rallentamento, i fine corsa segnano l'inizio del periodo di rallentamento.
  • Page 28 BA24 • con tensione intorno ai 16V la batteria è prossima all'esaurimento quindi non viene consentito alcun movimento. In seguito ad un comando viene segnalata l'anomalia “batteria scarica” con 4 s di lampeggio veloce in riposo e lento in pausa. In questo caso la tensione delle batterie potrebbe non essere sufficiente ad illuminare il lampeggiatore e la spia.
  • Page 29: H1 Tempo Apertura Motore

    BA24 CONFIGURAZIONI DI DEFAULT • Parametri tipo A • A1 ® TIPO BATTENTE/BASCULANTE/BARRIERA • A2 2 MOTORI ® • A3 LOGICA PASSO PASSO CON STOP ® • A5 CHIUSURA AUTOMATICA ABILITATA (GENERALE E PEDONALE) ® • Parametri tipo C • C1 CHIUSURA RAPIDA DISABILITATA ®...
  • Page 30: In Chiusura

    BA24 • Parametri tipo E • E1 TEST FOTOCELLULA 1 DISABILITATO ® • TEST DISPOSITIVI DI SICUREZZA DISABILITATO ® • IN CHIUSURA PEDONALE ATTIVA LA RIAPERTURA TOTALE ® • LUCE DI CORTESIA CON 2 MOTORI DISABILITATA ® • CONTATTO OROLOGIO ESTERNO DISABILITATO ®...
  • Page 31 BA24 Dichiarazione di conformità CE Il fabbricante: GI.BI.DI. S.r.l. Via Abetone Brennero, 177/B, 46025 Poggio Rusco (MN) ITALY dichiara che i prodotti: APPARECCHIATURA ELETTRONICA BA24 sono conformi alle seguenti Direttive CEE: Direttiva LVD 2006/95/CE e successive modifiche; • • Direttiva EMC 2004/108/CE e successive modifiche; e che sono state applicate le seguenti norme armonizzate: EN60335-1,EN60335-2-103, EN50366 •...
  • Page 32 BA24 Control unit BA24 / AS06300 Electronic control unit for the automation of one Type or two motors – 24V dc – for swinging and sliding gates, overhead garage doors and barriers Power supply 230Vac monophase 50/60 Hz N° motors...
  • Page 33 BA24 • Possibility to program: automatic closing, fast closing, pre-flashing, hammer stroke, final closing and opening stroke, courtesy light, ending movement additional time, flashing light (both flashing and fixed), external watch management with three different modalities, number of cycles for scheduled maintenance, installer code and number of performed cycles and power supply days.
  • Page 34 BA24 WARNINGS FOR THE USER In the event of an operating fault or failure, cut the power upstream of the control unit and call Technical Service. Periodically check functioning of the safety devices. Any repairs must be carried out by specialised personnel using original and certified materials.
  • Page 35 BA24 START START input (N.O.) PEDESTRIAN input (N.O.) STOP input (N.C.). STOP If not used, jumper with terminal n° 29 Opening limit switch input - motor 1 (N.C.) FCAM1 If not used, disable during programming Closing limit switch input - motor 1 (N.C.) FCCM1 If not used, disable during programming Opening limit switch input - motor 2 (N.C.)
  • Page 36 BA24 SIGNALLING LED Position Colour Signal Description Lights when the START command is activated and turns off immediately after GREEN START Lights when the PEDESTRIAN command is activated and turns off immediately after GREEN PEDESTRIAN Always on. It turns off when the STOP command is activated STOP Always on.
  • Page 37 BA24 CHECK ENABLED INPUT During stand by (closed barrier) the control unit perform a test to verify the consistency between the enabling of an input by the menu and the status of the relevant contact Signal Open contact Closed contact PHOTOCELL 1 F F C L S _ F C L S...
  • Page 38 BA24 ADVANCED MODE When prompted for the password enter the default one 1234 . In such a way you enter all the menus. WARNING: If you change the password in the menu E92, that is if you change the default password 1234 with another one, then you can no more access the system by entering 0000.
  • Page 39 BA24 The third digit blinks. If you want to enter the ADVANCED programming, by means of + or – keys type the third digit of the installer code set in the menu E92. 0 0 0 0 Once you get to the desired digit confirm with the OK button and go to the next step.
  • Page 40 BA24 MENU A: SYSTEM CONFIGURATION AND OPERATING LOGIC SELECTION Example Programming MENU A When the display shows the main menus (letters A C F H E or just some of them depending on which password has been used to access A C F H E programming) let the letter A blink by moving to the right or to the left with the buttons + or –...
  • Page 41 BA24 It enables the STEP BY STEP WITH STOP logic Operation: START open ® Next START stop ® Next START ® close STEP BY STEP WITH STOP Next START open ® LOGIC If automatic closing has been activated (menu A5) and the opening phase is at the end of the cycle, when the pause time has elapsed (menu H9), the control unit automatically closes the gate.
  • Page 42 BA24 Disables the automatic closing If the pedestrian opening is activated, the PEDESTRIAN key will cause the closing. If the total opening is activated, the START will cause the closing and the PEDESTRIAN key will be uninfluential. Enables total automatic closing H9 Enables pedestrian automatic closing H11 AUTOMATIC CLOSING PEDESTRIAN key uninfluential when in pause...
  • Page 43 BA24 Description MENU C Menu Function Status Description It disables the fast closing function Enables fast closing function. FAST CLOSING Operation: Active only on photocell 1. Reduces the stand-by time to 3 seconds following interception and subsequent freeing of the photocells Blinking flashing light output FLASHING LIGHT Fixed flashing light output...
  • Page 44 BA24 Enables the hammer stroke function both in opening and closing to allow the electric lock release. Operation: When the START command is given, the sequence is: - electric lock activation HAMMER STROKE - pulse in closing / opening of 1 s - opening / closing - after 2 s electric lock release Not active with sliding configuration...
  • Page 45 BA24 Disables the “Hydraulic locking maintenance” function Enables the “Hydraulic locking maintenance” function ONLY FOR HYDRAULIC OPERATORS Operation: HYDRAULIC LOCKING If in last 5 hours the gate has not done any manoeuvre, a pulse in MAINTENANCE closing of 2 s. is given The activation of the key STOP in any situation disables the function.
  • Page 46 BA24 The next digit starts blinking 0 0 0 5 With + and – buttons you can modify the value of the blinking digit. The ESC button moves the blinking digit to the left untill the first digit you can modify. With OK you confirm and go to the next step.
  • Page 47 BA24 MENU H: TIME SETTINGS Example Programming MENU H When the display shows the main menus (letters A C F H E or just some of them depending on which password has been used to access A C F H E programming) let the letter H blink by moving to the right or to the left with the buttons + or –...
  • Page 48 BA24 Appears again menu H1. With ESC return to the upper level (menu A, C, F, H, E) All the times can be set in steps of 1 s Description MENU H Menu Function Description Leaf 1 opening time. MOTOR 1 OPENING TIME Tmax 300 s.
  • Page 49 BA24 MENU E: ENABLING AND DISABLING The menu E contains submenus with different programming mode. Menus from E1 to E89 have the same programming mode as menu C; menus identified by E90 onwards have the same programming mode of menu F. Example Programming MENU E from E1 to E89 When the display shows the main menus (letters A C F H E or just...
  • Page 50 BA24 The digits on the lcd are still fixed to show that is not possible any modification. 0 0 0 5 The buttons + and – are irrelevant The ESC button return to the upper level With OK button you enter the selected menu and the digits begin blinking.
  • Page 51 BA24 Disables the safety devices test Enables the safety devices test. Operation: PHASE 1: when the START or the Pedestrian command is given, the amperometric circuit is tested. If an anomaly is detected, it will be indicated by 4 slow blinks (2 sec.) of the flashing light. PHASE 2: If the edge with N.C.
  • Page 52 BA24 EXTERNAL CLOCK - AUTOMATIC OPENING AND CLOSING COMMAND Enables the RESERVE input for the connection of an external clock Operation: With the closed contact on the RESERVE input, an automatic opening EXTERNAL CLOCK command will activate (with no need of a START command). The door will open, but it will not close automatically.
  • Page 53 BA24 T3 ADDITIONAL TIME Additional time at the end of the working time (with full force or during deceleration phase according to the settings) that allows to continue the movement to close the leaf even if there is wind. The T3 function is not active with the sliding configuration. LIMIT SWITCHES AND AMPEROMETRIC OPERATION If you enable the deceleration function, the limit switches mark the beginning of the deceleration.
  • Page 54 BA24 • with voltage around 16V, the battery is exhausted, no movement is allowed. Following a command, the fault “exhausted battery is signalled with 4 s blinks (fast in opening, slow in stand-by). In this case, the battery voltage could be insufficient for both the flashing light and the warning light RESET Press and hold simultaneously ESC and OK keys for 3 s until the writing “PASS”...
  • Page 55 BA24 DEFAULT SETTINGS • Parameters type A • A1 ® SWING GATE/OVERHEAD DOOR/BARRIER TYPE • A2 2 MOTORS ® • A3 STEP STEP WITH STOP LOGIC ® • A5 AUTOMATIC CLOSING ENABLED (GENERAL AND PEDESTRIAN) ® • Parameters type C •...
  • Page 56 BA24 • Parameters type E • E1 PHOTO 1 TEST DISABLED ® • SAFETY DEVICES TEST DISABLED ® • IN “PEDESTRIAN CLOSING”, ACTIVATES COMPLETE OPENING ® • COURTESY LIGHT WITH 2 MOTORS DISABLED ® • EXTERNAL CLOCK CONTACT DISABLED ® •...
  • Page 57 BA24 CE Declaration of conformity The manufacturer: GI.BI.DI. S.r.l. Via Abetone Brennero, 177/B, 46025 Poggio Rusco (MN) ITALY Declares that the products: ELECTRONIC CONTROL UNIT BA24 are in conformity with the following EEC Directives: LVD Directive 2006/95/CE and subsequent amendments; •...
  • Page 58 BA24 NOTE / NOTES...
  • Page 59 BA24 NOTE / NOTES...
  • Page 60 GI.BI.DI. S.r.l. Via Abetone Brennero, 177/B 46025 Poggio Rusco (MN) - ITALY Tel. +39.0386.52.20.11 Fax +39.0386.52.20.31 E-mail: info@gibidi.com Numero Verde: 800.290156 w w w . g i b i d i . c o m...
