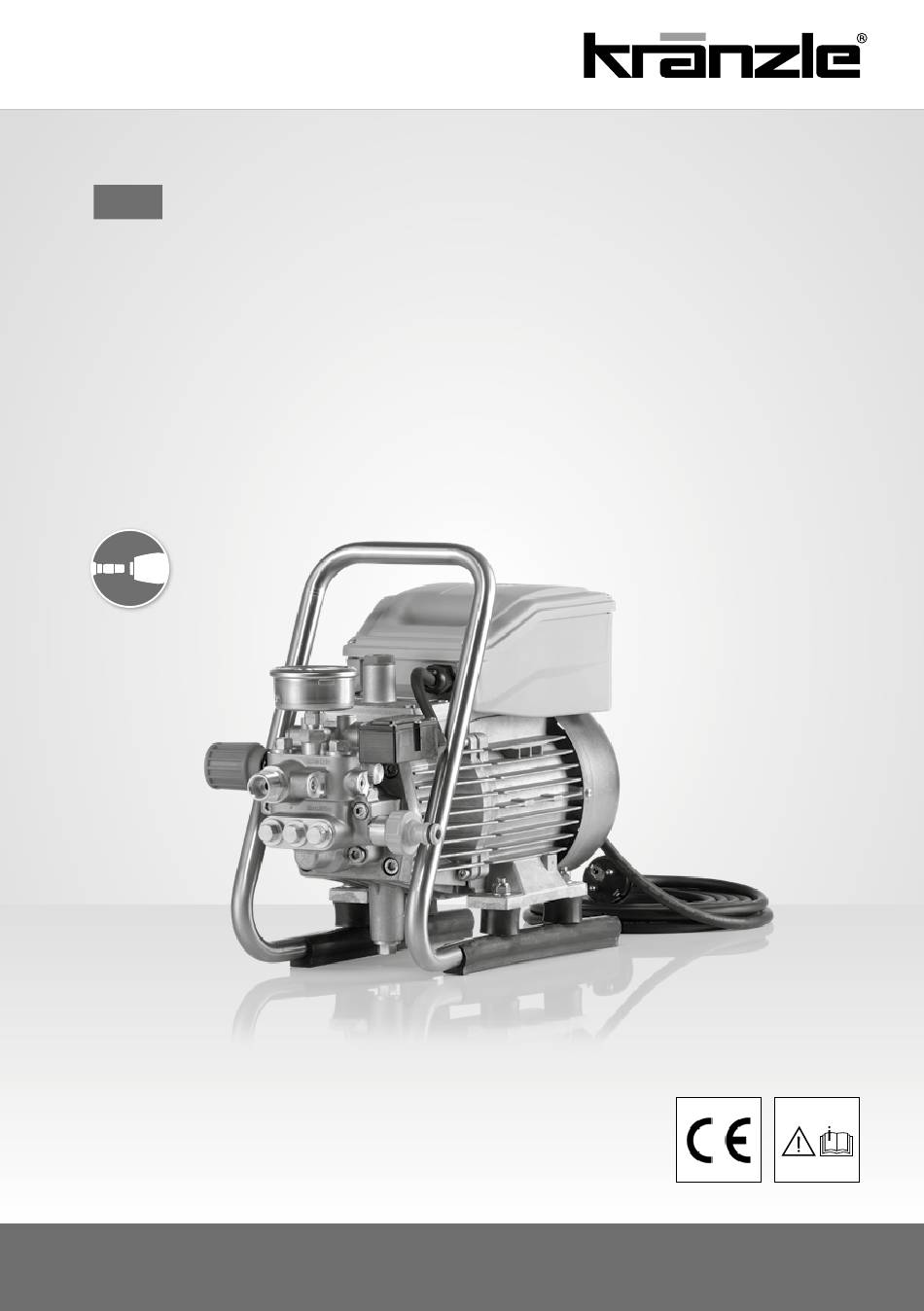

- Page 1 Operating manual High-pressure cleaner HD 7/122 HD 7/122 TS HD 10/122 HD 10/122 TS www.kraenzle.com...
- Page 2 Operating manual High-pressure cleaner HD 7/122 HD 7/122 TS HD 10/122 HD 10/122 TS Operating manual! This manual is a translation of the original manual. Read and conform safety instructions before use! Technical data will be found in the Spare parts list.
-
Page 3: Table Of Contents
Kränzle high-pressure cleaners are characterized by their convenient breakdown of the HD 7/122, HD 7/122 TS, HD 10/122 and and compact design as well as their high suitability for everyday use. -
Page 4: Safety Notes
Safety notes Safety notes - This is prohibited! User operating the high-pressure cleaner should wear the necessary protective Replacement of the power supply cables is only permitted by use of an original clothing, i.e. waterproof clothing, rubber boots, safety goggles, ear protection power supply cable of the manufacturer and must be performed by a qualified headwear etc. - Page 5 Safety notes - This is prohibited! Safety notes - This is prohibited! Never direct the high-pressure jet at the high- Never direct the high-pressure jet at people or pressure cleaner itself! The high-pressure cleaner animals! Never direct the high-pressure jet at may not be placed within reach of the high- yourself or other persons, not even to clean pressure jet spray mist!
-
Page 6: Description Of High-Pressure Cleaner
Description of high-pressure cleaner Design: This is what you have purchased: The HD 7/122, HD 7/122 TS, HD 10/122 and the HD 10/122 TS are portable type high-pressure cleaners. Please see construction scheme for more details. 1. Shaped handle 1. Kränzle high-pressure cleaner... -
Page 7: General Rules
General rules General rules Intended use Oil change This high-pressure cleaner is to be used solely for high-pressure water jet cleaning applications without detergents or low-pressure cleaning work with detergents The first oil change should be carried out (e.g. with a foam injector or washing brush). after approximately 50 operating hours, then every year or after 250 operating Environmental, refuse disposal and water protection regulations... -
Page 8: Functional Details
Functional details Functional details Please note: Lack of water Insufficient quantity of electricity Lack of water occurs more often than you If there are too many collectors in your probably believe. The more powerful a high- proximity connected to the network at the pressure cleaner is the greater is the danger same time, the available voltage and the that a lack of water occurs. - Page 9 The high-pressure cleaner can only be operated when the trigger of the safety The HD 7/122 TS and the HD 10/122 TS features a totalstop system. If the main deactivation trigger gun‘s trigger is actuated. When the trigger is pulled, the switch is switched on, the motor is started via a pressure switch when opening safety trigger gun opens.
-
Page 10: Putting Into Operation
Unwind high-pressure hose straight and without nooses. The high-pressure hose and spray device which are part of the HD 7/122, HD 7/122 TS, The high-pressure hose may leave signs HD 10/122 and the HD 10/122 TS equipment, are made of high quality material and of abrasion on some floors. - Page 11 (1-10 bar pre-pressure) with either cold or hot water (up to 60 °C). The HD 7/122 and the HD 7/122 TS provides the opportunity of sucking in water out Fig. TS of a container (see direct suction).
-
Page 12: Taking Out Of Operation
Taking out of operation Switch off the high-pressure cleaner Direct water extraction with HD 7/122 and HD 7/122 TS Due to the suction capacity of its high-pressure pump (up to 1 m suction height, 2. Cut off the water supply max. -
Page 13: Small Repairs - Do It Yourself
Small repairs - do it yourself Small repairs - do it yourself Problem Problem No water from nozzle although the high-pressure cleaner is running. Irregular jet from nozzle. The stainless steel pressure gauge shows full pressure. The stainless steel pressure gauge shows low pressure. Cause Cause Most likely the nozzle is blocked. - Page 14 Small repairs - do it yourself Small repairs - do it yourself HD 7/122, HD 10/122 HD 7/122, HD 10/122 Problem Problem After closing the safety trigger gun, the pressure control valve-safety valve keeps After closing the safety trigger gun, the pressure control valve-safety valve keeps switching.
- Page 15 Small repairs - do it yourself Small repairs - do it yourself HD 7/122 TS, HD 10/122 TS HD 7/122 TS, HD 10/122 TS Problem Problem After closing the safety trigger gun the high-pressure cleaner keeps switching on After closing the safety trigger gun the high-pressure cleaner keeps switching on and off.
-
Page 16: Kränzle Accessories
Splash guard With wheels L: 280 mm x W: 190 mm With plug-in nipple For all washing lances * Not suited for HD 7/122 and for HD 7/122 TS Ord. no.: 132600 Ord. no.: 41881 Pipe cleaning hose with nozzle... -
Page 17: Eu Declaration Of Conformity
– may result in damage occurring Noise pressure level, typical: HD 7/122, HD 7/122 TS: 81.7 dB (A) to the product. Such damage is not deemed to constitute any material defect. HD 10/122, HD 10/122 TS: 88.1 dB (A) -
Page 18: Inspection Reports
Inspection reports Inspection reports High-pressure cleaners for industrial use have to be checked by an expert every High-pressure cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. - Page 19 Josef Kränzle GmbH & Co. KG Rudolf-Diesel-Straße 20 89257 Illertissen (Germany) sales @ kraenzle.com Made Germany www.kraenzle.com...
