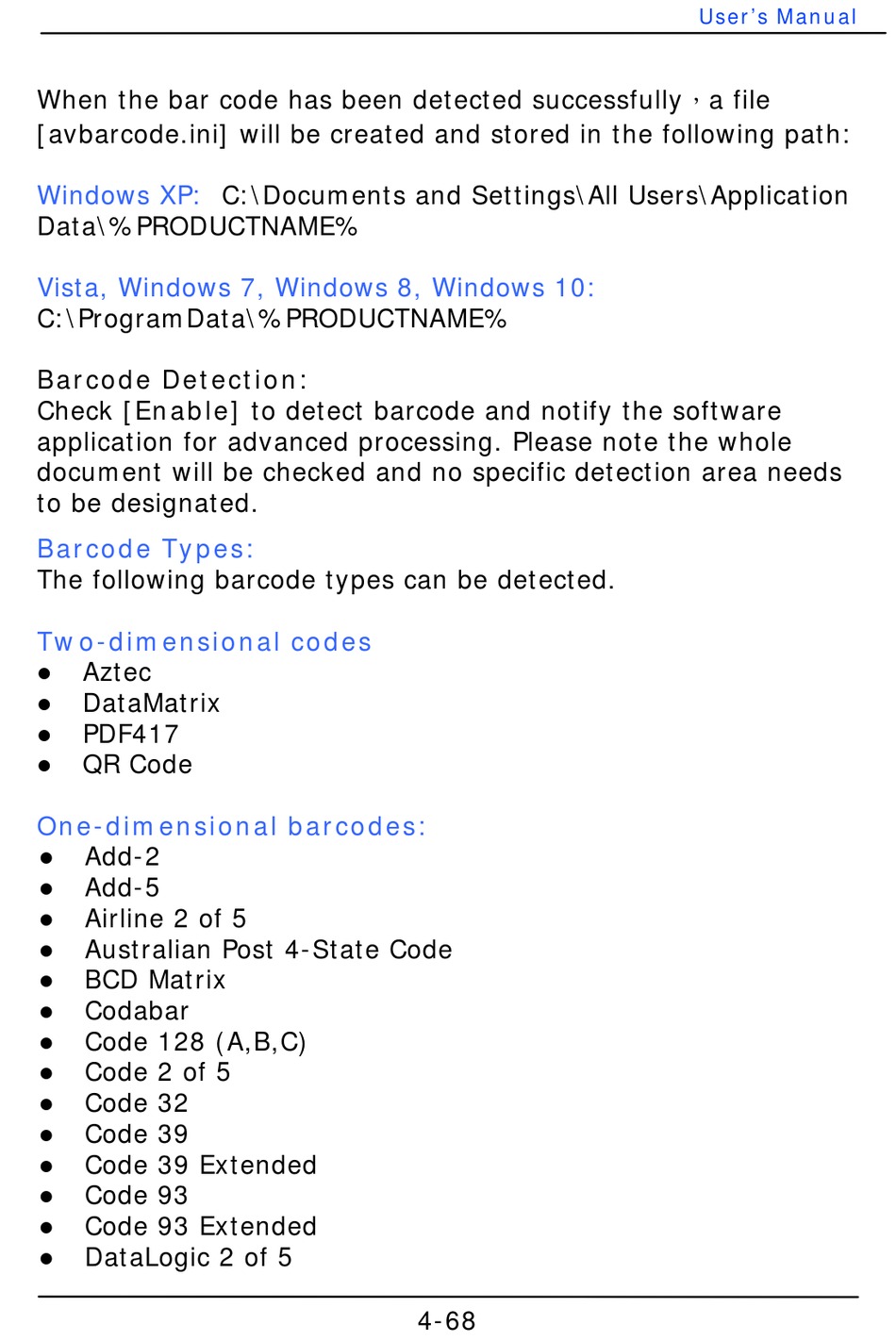

Avision FL-1602B User Manual page 100

When the bar code has been detected successfully，a file
[avbarcode.ini] will be created and stored in the following path:
Windows XP:
Data\%PRODUCTNAME%
Vista, Windows 7, Windows 8, Windows 10:
C:\ProgramData\%PRODUCTNAME%
Barcode Detection:
Check [Enable] to detect barcode and notify the software
application for advanced processing. Please note the whole
document will be checked and no specific detection area needs
to be designated.
Barcode Types:
The following barcode types can be detected.
Two-dimensional codes
Aztec

DataMatrix

PDF417

QR Code

One-dimensional barcodes:
Add-2

Add-5

Airline 2 of 5

Australian Post 4-State Code

BCD Matrix

Codabar

Code 128 (A,B,C)

Code 2 of 5

Code 32

Code 39

Code 39 Extended

Code 93

Code 93 Extended

DataLogic 2 of 5

C:\Documents and Settings\All Users\Application
4-68
User's Manual
