Kolver EDU 1BR Operator's Handbook

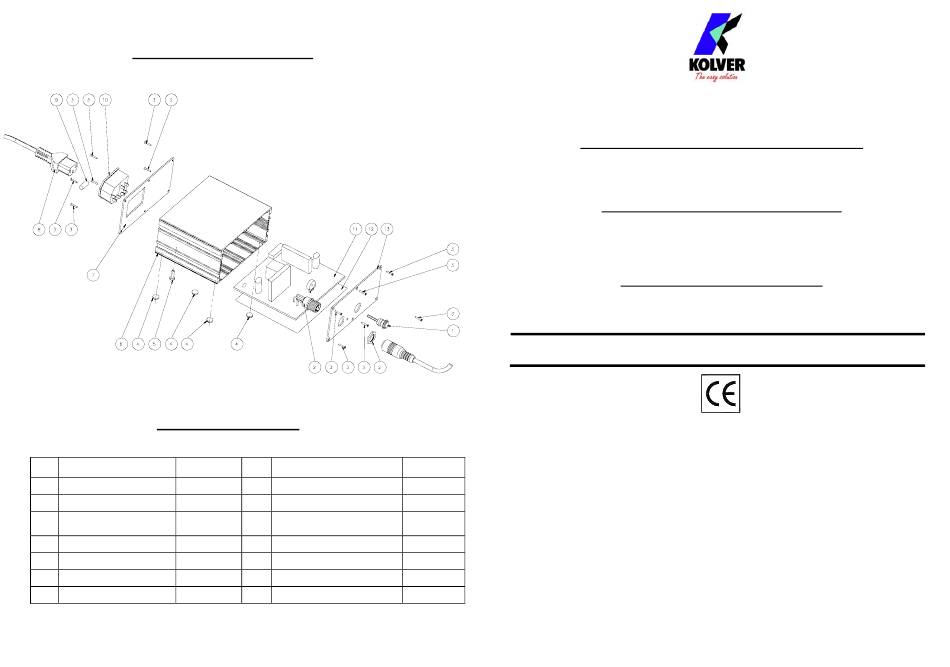

EDU 1BR EXPLODED VIEW
EDU 1BR PARTS LIST
RIF DESCRIPTION CODE
1
Plastic KNOB 800640
2
Connector 8 PIN M12 M 201766/C
Self tapping screw
3
800605
2,6 x 9,5 mm (12pcs)
4
Plastic support (4pcs)
800016
5
Screw M4 x 4 mm
806635
6
Aluminium box 811010/L/VB
7
Back panel 831717/SG
RIF DESCRIPTION CODE
8
Power supply cable 800020
9
Fuse 3,15 A 800619
90/260VAC socket with
10
800618
on/off switch and fuseholder
11
PCB EDU 1BR/SG
856706/B
12
Isolating sheet
800654
13
Front panel 821704
Operator's Handbook
IDENTIFICATION DATA OF THE MANUFACTURER
KOLVER S.r.l.
VIA MARCO CORNER, 19/21 - 36016 THIENE (VI) - ITALY
IDENTIFICATION DATA OF THE PRODUCT
POWER SUPPLY AND CONTROL UNIT MODEL: EDU 1BR
CODE: 001000
TECNICAL DATA OF THE PRODUCT
INPUT 90/260VAC 50/60Hz
OUTPUT 24/30V DC 120W FUSE: 3,15 A
DIMENSIONS: 138x180x67 mm WEIGHT: 950 g
DECLARATION OF CONFORMITY
KOLVER S.r.l.
Via M. CORNER, 19/21 - 36016 THIENE (VI) - ITALY
Declares that the new tool here described:
Control unit Model EDU 1BR
Is in conformity with the following standards and other normative Documents:
98/37/CE, 89/336/CE and 2006/95/CE,
EN50144-1 and EN60204-1.
It is also in conformity with RoHS normative.
Name: Giovanni Colasante
Position: Managing Director
Giovanni Colasante
KOLVER S.r.l.
