MT9M001C12STMH-GEVB
MT9M001 Evaluation Board
User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to clock, I/Os and other
miscellaneous signals.

Features

Clock Input
Default − 12 MHz crystal oscillator
Optional Demo 2X controlled MClk
Two Wire Serial Interface
Selectable base address
Parallel Interface
ROHS Compliant

Block Diagram

© Semiconductor Components Industries, LLC, 2016
June, 2016 − Rev. 0

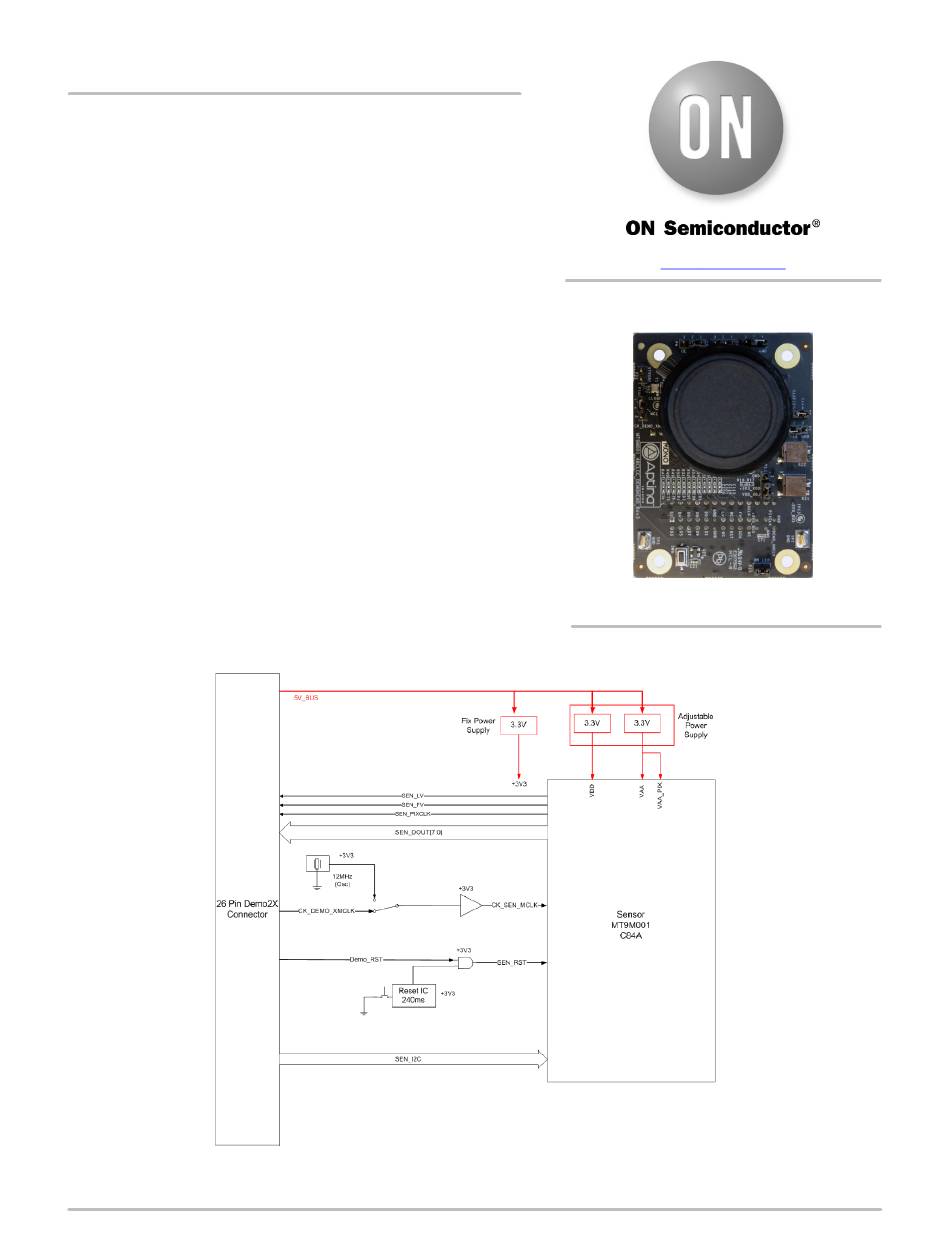

Figure 2. Block Diagram of MT9M001C12STMH−GEVB
EVAL BOARD USER'S MANUAL
Figure 1. MT9M001 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2422/D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT9M001C12STMH-GEVB and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor MT9M001C12STMH-GEVB

  • Page 1 Evaluation Board Overview The evaluation boards are designed to demonstrate the features of www.onsemi.com ON Semiconductor’s image sensors products. This headboard is intended to plug directly into the Demo 2X system. Test points and EVAL BOARD USER’S MANUAL jumpers on the board provide access to clock, I/Os and other miscellaneous signals.
  • Page 2 MT9M001C12STMH−GEVB Top View OE P6 STANDBY P9 TRIGGER P8 STROBE P26 MCLK_IN P10 +3V3_VAAPIX P5 +3V3_VAA P7 +3V3_VDD P11 RESET Switch SW8 ON_LED P25 Figure 3. Top View of Evaluation Board − Default Jumpers Bottom View Baseboard Connector J4 Baseboard Connector P18 Figure 4.
  • Page 3 MT9M001C12STMH−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pins 1 and 2 Pins 1 and 2...
  • Page 4 Interfacing to ON Semiconductor Demo 2X Baseboard and J4 of the headboard. The four mounting holes secure the The ON Semiconductor Demo 2X baseboard has a similar baseboard and the headboard with spacers and screws. 26-pin connector and 13-pin connector which mate with P18...
  • Page 5 onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf.
