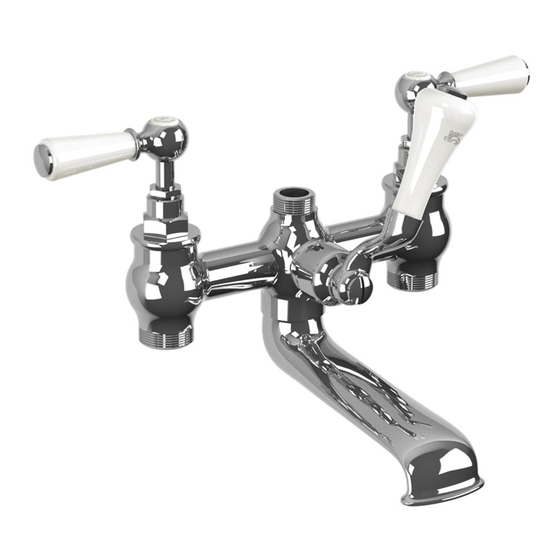

White lever bath shower mixer

Advertisement

INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS
CW-2651 (WL 1100)
WHITE LEVER BATH SHOWER MIXER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CW-2651 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lefroy Brooks CW-2651

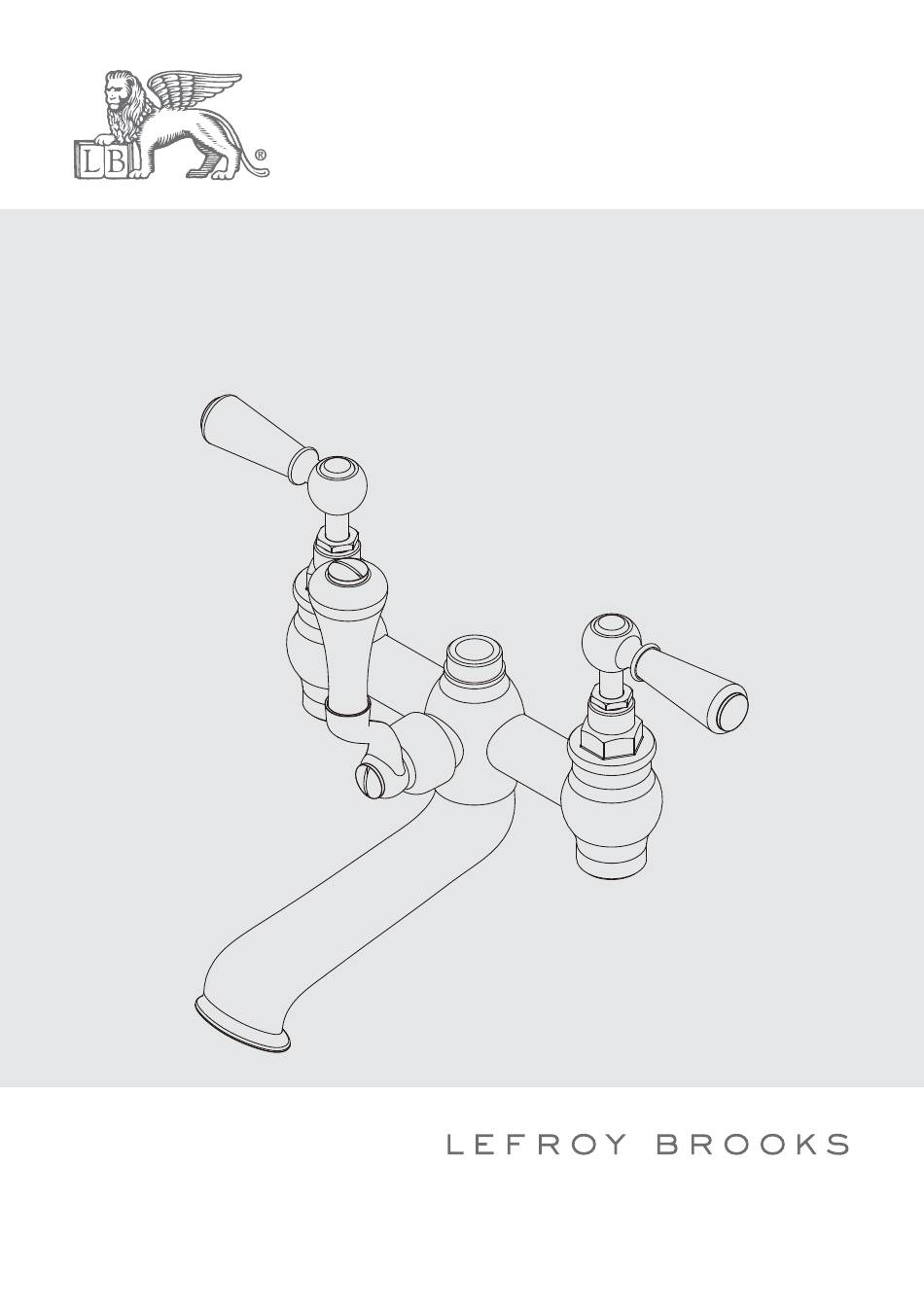

  • Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS CW-2651 (WL 1100) WHITE LEVER BATH SHOWER MIXER...
  • Page 2: Table Of Contents

    Contents Dimensions Instal ation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee...
  • Page 3: Dimensions

    Dimensions in Inches (& Millimetres) 13 13/16" (351mm) 7 3/16" (183mm) 3 5/16" (84.4mm) 3/4-14NPSM-2A 2-3 5/16" (2-84mm) 2-1 5/16-16UN-2A 6 1/16" (154.5mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
  • Page 4: Instal Ation Procedure

    Installation Procedure Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Product shown as example only Product shown as example only Install the riser or cradle of choice (model shown is for example only) onto the faucet.
  • Page 5 Installation Procedure Step 3 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. After installing faucet, open the hot and cold supplies to check for leaks. Turn on faucet handle for one minute to flush debris from faucet. Turn off the handle.
  • Page 6: Parts List

    Parts List Exploded view Lever cap (109380) Adaptor (077257) Stem extension (110461) Diverter lever (108210) Clip (012060) Screw (008486) Screw (017206) Stem extension (110478) Cartridge (C) (507456) O-ring (072068N) O-ring (004021N Grub screw (065154) Diverter seat (069036) Lever adaptor (205144) O-ring (004090) Screw (008267) Ceramic cap (C) (129313C)
  • Page 7: Fault Finder

    Fault Finder Fault Cause Rectification Leaks around handle. Cartridge has come loose or Tighten/reinstall the cartridge or damaged. replacement the cartridge if it is damaged. Leaks around the connection Gasket is misfitted or damaged. Check for gasket placement. between legs and faucet.
  • Page 8: Safety Tips, Care And Maintenance

    Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation.
  • Page 9: Guarantee

    Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges.
  • Page 10 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.

This manual is also suitable for:

Wl 1100
