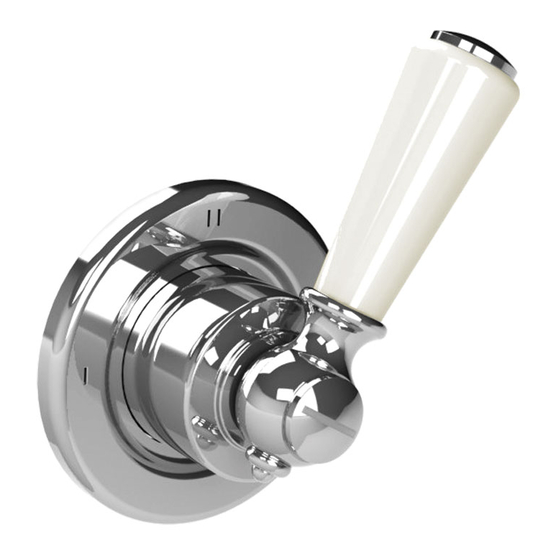

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS CW-1011 (LB 1722) WHITE LEVER CONCEALED THREE-WAY WALL DIVERTER TRIM ONLY, TO SUIT R1-4001 ROUGH...
-
Page 2: Table Of Contents
Contents Dimensions Instal ation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee... -
Page 3: Dimensions
Dimensions in Inches (& Millimetres) 1/4" (7mm) 2 13/16" (71.5mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process. -
Page 4: Instal Ation Procedure
Installation Procedure Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Throw away the protective cap only when the building construction is completed and you are ready to fit the trim kit. -
Page 5: Parts List
Parts List Exploded view Handle-end cap (109376) Handle adaptor (109377) Screw (008486) Handle sleeve (108924) Canopy (018331) O-ring (004044) Handle stem (017094) Clip (012242) Escutcheon (071279-55) Handle head (205002) Adaptor (057507) Screw head (008291) Adaptor (039706) -
Page 6: Fault Finder
Fault Finder Fault Cause Rectification Wobbling of canopy. The canopy comes loose. Check and tighten the canopy. -
Page 7: Safety Tips, Care And Maintenance
Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. -
Page 8: Guarantee
Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 9 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
