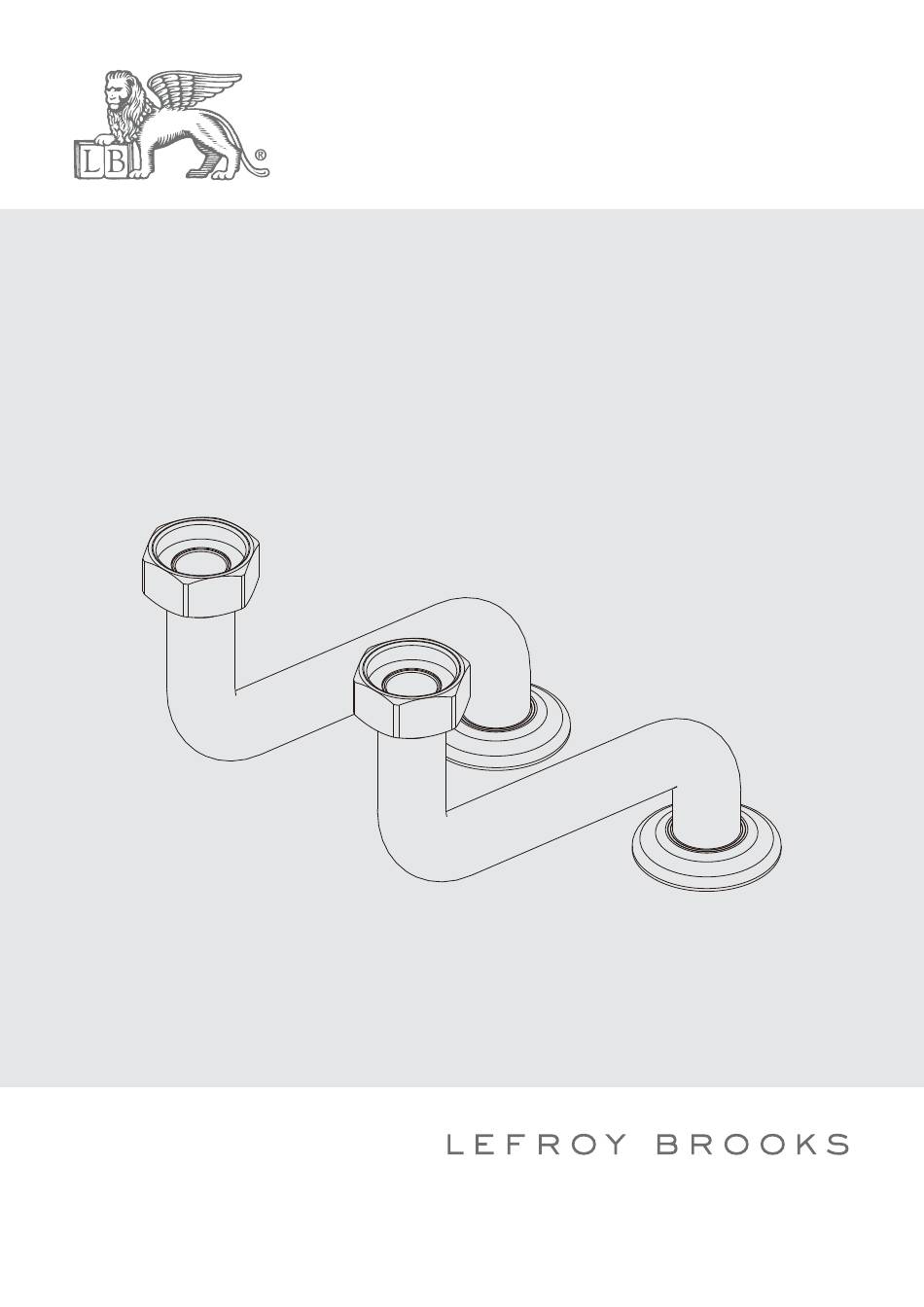

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS C1-2665 EXTENDED LEGS FOR BATH SHOWER MIXER (1 PAIR)
-
Page 2: Table Of Contents
Contents Dimensions Instalation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee... -
Page 3: Dimensions
Dimensions in Inches (& Millimetres) 5 1/2" (140mm) 2-1 5/16-16UN-2B 2-Ø1 15/16" (2-Ø50mm) 2-3/4-14NPSM-2A Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process. -
Page 4: Instalation Procedure
Installation Procedure Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Ø 1 1/16”-1 3/16” Ø 27mm-Ø 30mm 1 1/6”- 2” (1mm - 51mm) 6 5/16”- 7 7/8”... - Page 5 Installation Procedure Steps 3-4 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Product shown as example only Fix the legs with nuts. Install the faucet of choice (model shown is for example only) onto the legs.
-
Page 6: Parts List
Parts List Exploded view Oil seal (068025) Escutcheon (071457) Nut (009342) O-ring (072057N) Leg (020205) Oil seal (010017) O-ring (004010N) Nut (054037) Shank (014648) -
Page 7: Fault Finder
Fault Finder Fault Cause Rectification Leaks around the connection Gasket is misfitted or damaged. Check for gasket placement. between legs and faucet. -
Page 8: Safety Tips, Care And Maintenance
Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. -
Page 9: Guarantee
Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 10 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
