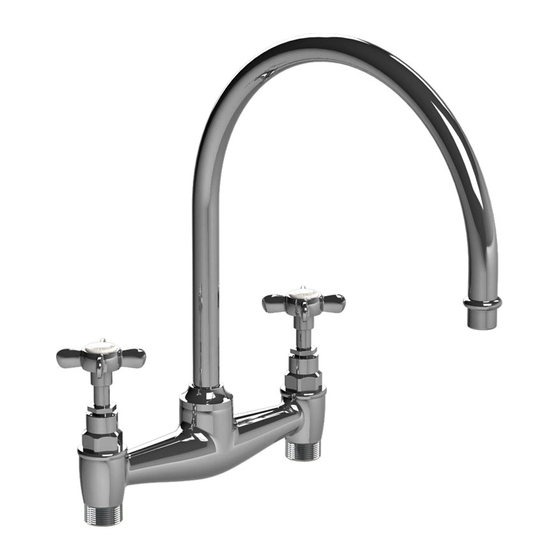

- Page 1 INSTALLATION INSTRUCTIONS C1-4715 CROSS HANDLE KITCHEN BRIDGE MIXER CW-4716 WHITE LEVER KITCHEN BRIDGE MIXER CB-4716 BLACK LEVER KITCHEN CW-4716 BRIDGE MIXER C1-4715 CB-4716...
- Page 2 Dimensions in Inches (& Millimetres) C1-4715 (LB1517) 9 5/8" (244.9mm) 7 7/8" (200mm) 3/4" (Ø19mm) Ø1" (Ø25mm) 10" (254mm) Ø1 1/2" Ø7/16" (Ø38.3mm) (Ø11mm) 2-3/4-14NPSM-2A Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
- Page 3 Dimensions in Inches (& Millimetres) CW-4716 (WL1517) 14 1/2" (368mm) 7 7/8" (200mm) 3/4" (Ø19mm) Ø1" (Ø25mm) 10" (254mm) Ø7/16" Ø1 1/2" (Ø11mm) (Ø38.3mm) 2-3/4-14NPSM-2A Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
- Page 4 Dimensions in Inches (& Millimetres) CB-4716 (BL1517) 14 1/2" (368mm) 7 7/8" (200mm) 3/4" (Ø19mm) Ø1" (Ø25mm) 10" (254mm) Ø7/16" Ø1 1/2" (Ø11mm) (Ø38.3mm) 2-3/4-14NPSM-2A Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
-
Page 5: What You Need To Know
What you need to know Tools: Maintenance Adjustable Wrench Your new bathroom faucet is designed for years Groove Joint Pliers of trouble-free performance. Hacksaw Keep it looking new by cleaning it periodically with Phillips Screwdriver a soft cloth. Avoid abrasive cleaners, wire wool and Pipe Tape harsh chemicals as these will dull the finish and Spatula... -
Page 6: Installation Procedure
Steps 1-2 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. 90° Take out product from the box. Turn the Install the faucet onto either the return bends spout to the right front position as the or the cranked legs as chosen. - Page 7 Steps 3-4 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Attach escutcheons to the legs, then install After placing the legs in the right position, fix the legs to the deck.
- Page 8 Steps 5 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. After installing faucet, remove aerator and open the hot and cold supplies. Check for leaks. Turn on faucet handle for one minute to flush debris from faucet.
-
Page 9: Exploded View
Exploded View Parts List C1-4715 (LB1517) 129312C (Ceramic indices ( C )) 008670 (Screw) 012112N (Clip) 029721-T (Handle) 507907W (Cartridge) 008252 (Screw) 048085N (O-ring) 002678W (Body) 010519N (Oil-seal) 018220 (Canopy) 139889W (Spout assembly) 553661N (Aerator insert) 013224 (Washer) 063066N (O-ring) - Page 10 Exploded View Parts List CW-4716 (WL1517) 129313C (Ceramic indices ( C )) 110461 (Stem extension) 018227 (Adaptor) 205144 (Adaptor) 013570 (Washer) 063066N (O-ring) 017094 (Handle stem) 008670 (Screw) 139889W (Spout assembly) 108924 (Handle sleeve) 507176W (Cartridge ( C )) 010519N (Oil-seal) 109376 (Handle-end cap) 002678W (Body) 553661N (Aerator insert)
- Page 11 Exploded View Parts List CB-4716 (BL1517) 205143C (Adaptor ( C )) 013570 (Washer) 063066N (O-ring) 017094 (Handle stem) 008744 (Screw) 139889W (Spout assembly) 108924 (Handle sleeve) 507176W (Cartridge ( C )) 010519N (Oil-seal) 109376 (Handle-end cap) 002678W () 553661N (Aerator insert) 048085N (O-ring) 008252 (Screw) 305849N-54 (Aerator housing)
- Page 12 The right to modify designs and dimensions is reserved. Christo Lefroy Brooks is a member of ACID (Anti Copying in Design).
