Lefroy Brooks C1-1000 Installation, Operating, & Maintenance Instructions

Under basin stopcock kit 1 pair
Hide thumbs

Advertisement

Table of Contents

INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS
C1-1000
UNDER BASIN STOPCOCK KIT (1 PAIR)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C1-1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lefroy Brooks C1-1000

Summary of Contents for Lefroy Brooks C1-1000

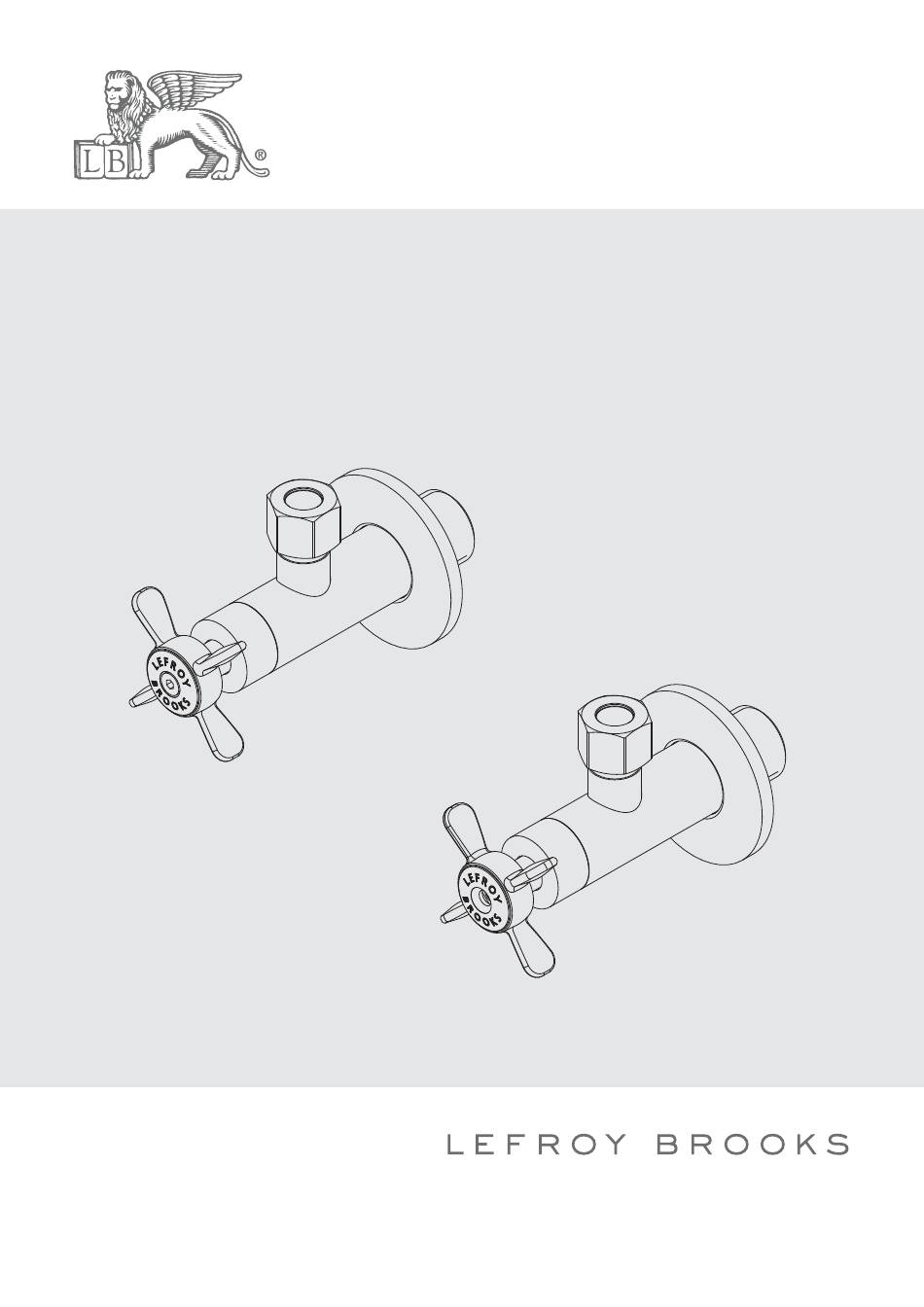

  • Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS C1-1000 UNDER BASIN STOPCOCK KIT (1 PAIR)

  • Page 2: Table Of Contents

    Contents Dimensions Instalation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee...

  • Page 3: Dimensions

    Dimensions in Inches (& Millimetres) 2 1/8" (54mm) Ø3/8 (Ø9.8mm) 3/16" 5/16"~9/16" (5mm) (8~14mm) Ø9/16" (Ø14mm) 2 15/16" (74mm) 3 3/8" (86mm) 4" (102.7) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.

  • Page 4: Instalation Procedure

    Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Install the stopcock kits to water supply.

  • Page 5: Parts List

    Parts List Exploded view Screw (008232) Body (061989W) Cross handle (069922) O-ring (063072N) Cartridge (024515W) Escutcheon (019320) Sealing washer (101160N) Allen key (031000) Screw (008774) Sealing washer (101157W) O-ring (004019N) Nut (009294) Washer (013089W)

  • Page 6: Fault Finder

    Fault Finder Fault Cause Rectification Leaks around the connection The body is misfitted. Reinstall the body to the water pipe. between the body and water pipe.

  • Page 7: Safety Tips, Care And Maintenance

    Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation.

  • Page 8: Guarantee

    Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges.
  • Page 9 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
