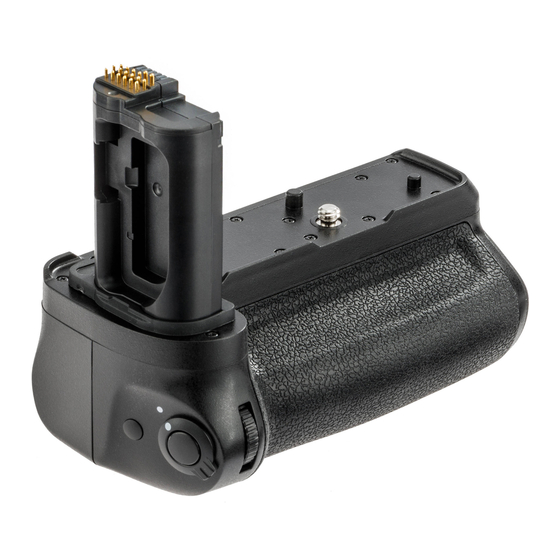

- Page 1 BG-N22 BATTERY GRIP Designed for the Nikon Z 6II and Z 7II Mirrorless Cameras...
- Page 2 Thank you for choosing Vello The Vello BG-N22 battery grip offers extended shooting time and comfort when shooting in a vertical (portrait) orientation. The grip is compatible with the Nikon Z 6II and Z 7II mirrorless cameras, and it accepts up to two Nikon EN-EL15c/EN-EL15b rechargeable batteries.
- Page 3 Precautions The BG-N22 should be used only with the compatible Remove batteries from the grip when not in use. devices specified in this manual. Do not attempt to disassemble. Use only with the batteries and battery holders Avoid exposing this product to water or extreme recommended in this manual.
- Page 4 Overview...
- Page 5 Nonslip grip Battery tray release AF-ON Mounting screw USB-C™ port (charging only) Power contacts Camera battery door holder Door release button Contact cover Fn button Battery compartment door Battery tray Shutter release button Battery status LEDs Battery A release Control lock Rear thumbwheel Battery A compartment Sub-command dial...
- Page 6 Re m ove t h e c a m e r a’s Slide the chamber door power is turned off, and battery chamber door. Pull into the BG-N22’s camera the grip’s control lock is in gently at a 45° angle until the battery door holder for the locked position.
- Page 7 Insert the battery grip’s power contacts into the Rotate the rear thumbwheel counterclockwise camera’s battery chamber. until the grip is secured to the camera.
-
Page 8: Inserting The Batteries
Inserting the Batteries Turn off the c amer a’s Press the bat ter y door Press the bat ter y tray power, and make sure the release button and slide release, and slide out the grip’s control lock switch is the battery compartment battery tray. - Page 9 Insert a battery into compartment A until it clicks Insert the battery tray with compartment B first. in place. Insert a battery into compartment B, pushing inward and down into the compartment.
- Page 10 Close the compar tment Turn on the camera power, Note: When removing the grip, door, and slide it to the front and make sure the grip’s turn off the camera’s power, lock of the grip until it clicks. control lock switch is in the the grip’s control lock switch, and unlocked position.
-
Page 11: Removing The Batteries
Removing the Batteries Turn off the camera’s power, and make sure the Press the battery door release button and slide grip’s control lock switch is in the locked position. the battery compartment door open. - Page 12 Press the battery tray release, and slide out the Press battery compartment A’s release and slide battery tray. the battery out. For battery B, press the battery in and lift it out of the compartment.
- Page 13 Hot Swapping Battery A If both batteries are installed in the grip, you swap out battery A without turning off the camera. Press the door release button on the battery Press battery compartment A’s release and compartment and slide the door to the rear slide the battery out of the tray.
-
Page 14: Specifications
In-Grip Battery Charging You can charge the batteries without removing them from the grip, using the grip’s USB Type-C port (cable not included) and a USB power source. Make sure you turn off the camera to begin charging. If there are two batteries in the grip, the one in compartment B will charge first. - Page 15 ONE-YEAR LIMITED WARRANTY This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later.
