Summary of Contents for Vello BG-N15-2

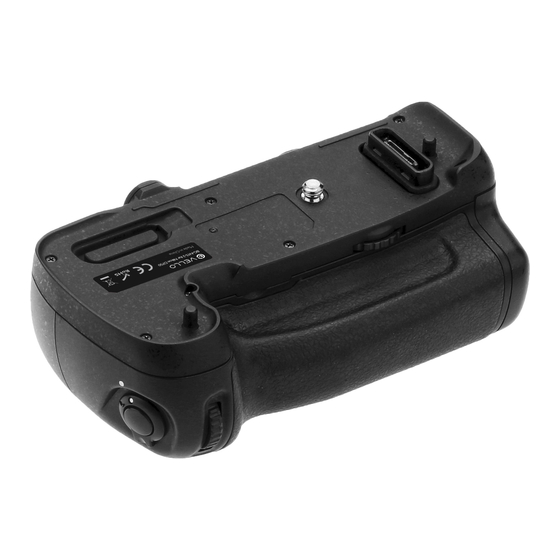

- Page 1 BG-N15-2 BATTERY GRIP Designed for the Nikon D750 DSLR Camera...
- Page 2 Thank you for choosing Vello The Vello BG-N15-2 battery grip offers extended shooting time and comfort when shooting in a vertical (portrait) orientation. The grip is compatible with the Nikon D750 DSLR camera and accepts one Nikon EN- EL15 rechargeable battery, providing you with an extra battery option together with the one in your camera.
- Page 3 Keep out of reach of children. Remove the batteries, and take the device to a Vello authorized reseller. All images are for illustrative purposes only.
- Page 4 Overview...
- Page 5 Sub-command dial Power-contact cap Battery tray compartment Nonslip grip Camera contact-cap holder Battery slot lock tab Tripod socket AE-L/AF-L button Battery slot Shutter release button Main command dial Battery slot contacts Control lock switch Multi selector 6-bay AA battery tray Power contacts Thumbwheel lock Mounting screw...
- Page 6 Attaching the Battery Grip Ensure that the camera is Re m ove t h e c a m e r a’s Remove the grip’s power- turned off. contact cap, and store it contact cap. in the grip’s contact-cap holder.
- Page 7 Line up the battery grip’s power contacts and Rotate the thumbwheel counterclockwise until camera mount, and attach the grip to the camera. the grip is secured.
-
Page 8: Inserting The Battery
Inserting the Battery Turn off the camera, and Twist the battery tray lock, Nikon EN -EL15: Inser t make sure the grip’s control and remove the battery tray the battery into the slot as lock switch is in the L from the grip. - Page 9 A A Batteries: Place six Insert and lock the battery Turn on the camera, and identical AA batteries into tray inside the battery grip. make sure the grip’s control the A A bat tery tray as lock switch is in the • indicated.
-
Page 10: Removing The Battery
Removing the Battery Turn off the camera, and Twist the battery tray lock, Push down on the battery make sure the grip’s control and remove the battery tray slot lock tab, and slide the lock switch is in the L from the grip. -
Page 11: Battery Info
Battery Info The camera displays the following battery levels. Nikon EN-EL15 Battery: AA Batteries: LCD/Control Viewfinder Description LCD/Control Viewfinder Description Panel Panel Battery fully Batteries fully charged. charged. Low battery power. Prepare Battery partially spare batteries. discharged. Batteries exhausted. Shutter release is (blinking) (blinking) Low battery. - Page 12 Battery Order Set the order in which Battery Type Menu Option to Select the internal camera and BG-N15-2 batteries are AA alkaline (LR6) LR6 (AA alkaline) used via the Custom Settings AA NiMH (HR6) HR6 (AA Ni-MH) menu (Group d). To view...
-
Page 13: Specifications
Specifications Nikon EN-EL15 type rechargeable Li-ion battery Power source 6 × AA batteries Operating temperature 32°F to 104°F (0°C to 40°C) Dimensions (H × W × D) 2 × 5.5 × 3 in. (5 × 14 × 7.6 cm) Weight 7.25 oz. -
Page 14: One-Year Limited Warranty
One-Year Limited Warranty This Vello product is warranted to the original purchaser This warranty does not cover damage or defect to be free from defects in materials and workmanship caused by misuse, neglect, accident, alteration, abuse, under normal consumer use for a period of one (1) improper installation or maintenance. - Page 15 Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective www.gradusgroup.com product to Vello along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
- Page 16 www.vellogear.com...
