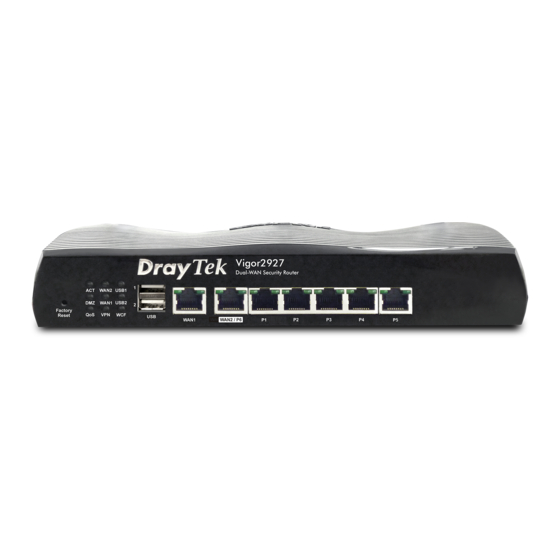

Draytek Vigor 2927Lax-5G Quick Start Manual

Draytek Vigor 2927Lax-5G Quick Start Manual

Dual-wan security router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Vigor2927 Series
Dual-WAN Security Router
Quick Start Guide
(for RF Model)
Version: 2.01
Firmware Version: V4.4.5
(For future update, please visit DrayTek web site)
Date: May 17, 2024
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vigor 2927Lax-5G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draytek Vigor 2927Lax-5G

Summary of Contents for Draytek Vigor 2927Lax-5G

  • Page 1 Vigor2927 Series Dual-WAN Security Router Quick Start Guide (for RF Model) Version: 2.01 Firmware Version: V4.4.5 (For future update, please visit DrayTek web site) Date: May 17, 2024...
  • Page 2 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks ...
  • Page 3 Declaration of Conformity Hereby, DrayTek Corporation declares that the equipment type Vigor2927 is in compliance with the Radio Equipment Directive 2014/53/EU, Low Voltage Directive 2014/35/EU and RoHS 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: https://fw.draytek.com.tw/Vigor2927/Document/CE/...
  • Page 4 Declaration of Conformity Hereby, DrayTek Corporation declares that the equipment type Vigor2927 is in compliance with the Radio Equipment Regulations 2017 (SI 2017 No.1206, The Electrical Equipment (Safety) Regulations 2016 (SI 2016 No.1101), and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012 No.
  • Page 5 Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Table Of Contents

    1. Package Content ....................1 2. Panel Explanation....................2 2.1 Vigor2927L ..........................2 2.2 Vigor2927ac / Vigor2927ax / Vigor2927Lac ..................4 2.3 Vigor2927Vac ..........................8 2.4 Vigor2927L-5G / Vigor2927Lax-5G ....................11 3. Hardware Installation ..................15 3.1 Network Connection ......................... 15 3.2 Wall-Mounted Installation ......................

  • Page 7: Package Content

    Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or the dealer immediately. Besides, the content is subject to the real package. Vigor router 2 sets (Antenna + Extension Base) for Vigor2927L, Vigor2927Lac models...

  • Page 8: Panel Explanation

    Status Explanation The router is powered off. Blinking The router is powered on and running normally. Internet connection is ready. WAN2/WAN1 Internet connection is not ready. Blinking The data is transmitting. LTE device is connected and ready for use. LTE device is not detected, or has serious problem (e.g., no SIM card, SIM pin error, SIM deactivated, and etc.).
  • Page 9 LAN P1-P5 The port is connected. Left LED The port is disconnected. Blinking The data is transmitting. The port is connected with 1000Mbps. Right LED The port is connected with 10/100Mbps Interface Description Restore the default settings. Usage: Turn on the router (ACT LED is blinking).

  • Page 10: Vigor2927Ac / Vigor2927Ax / Vigor2927Lac

    Status Explanation The router is powered off. Blinking The router is powered on and running normally. Internet connection is ready. WAN2/WAN1 Internet connection is not ready. Blinking The data is transmitting. USB device is connected and ready for use. No USB device is connected. USB1/USB2 Blinking The data is transmitting.
  • Page 11 WLAN: Wireless access point is ready. Wireless function is disabled. It will blink slowly while wireless traffic goes through. ACT and WLAN LEDs blink quickly and Blinking simultaneously when WPS is working, and will return to normal condition after two minutes. (You need to setup WPS within 2 minutes.) WAN1,WAN2 / P6 The port is connected.
  • Page 12 Interface Description Wireless band will be switched /changed according to the button pressed and released. For example,  2.4G (On) and 5G (On) – in default.  2.4G (Off) and 5G (On) – pressed and released the button once. Wireless LAN ...
  • Page 13 Internet. It is a switchable port. It can be used for LAN connection or WAN connection according to the settings configured in WUI. LAN P1-P5 Connecters for local network devices. Connecter for installing WLAN antennas. (For WiFi model) Connecter for a power adapter. ON/OFF Power Switch.

  • Page 14: Vigor2927Vac

    Status Explanation The router is powered off. The router is powered on and running Blinking normally. Internet connection is ready. WAN2/WAN1 Internet connection is not ready. Blinking The data is transmitting. The QoS function is active. The QoS function is inactive. USB device is connected and ready for use.
  • Page 15 LAN P1-P5 The port is connected. Left LED The port is disconnected. Blinking The data is transmitting. The port is connected with 1000Mbps. Right LED The port is connected with 10/100Mbps Interface Description Wireless band will be switched /changed according to the button pressed and released.
  • Page 16 LAN P1-P5 Connecters for local network devices. Connecter for installing WLAN antennas. (For WiFi model) Connecter for a power adapter. ON/OFF Power Switch.

  • Page 17: Vigor2927L-5G / Vigor2927Lax-5G

    Status Explanation The router is powered off. Blinking The router is powered on and running normally. WAN2~WAN1 Internet connection is ready. Internet connection is not ready. Blinking The data is transmitting. 5G-NR device is connected and ready for use. 5G-NR device is not detected, or has serious problem (e.g., no SIM card, SIM pin error, SIM 5G-NR deactivated, and etc.).
  • Page 18 ACT and WLAN LEDs blink quickly and simultaneously when WPS is working, a nd will return to normal condition after two minutes. (You need to setup WPS within 2 minutes.) WAN1,WAN2 / P6 The port is connected. The port is disconnected. Left LED Blink The data is transmitting.
  • Page 19 Interface Description Wireless LAN Wireless band will be switched /changed according to the ON/OFF/WPS button pressed and released. For example,  2.4G (On) and 5G (On) – in default.  2.4G (Off) and 5G (On) – pressed and released the button once.
  • Page 20 (For ac/ax model). Connecter for a power adapter. ON/OFF Power Switch. Connecter for installing LTE antennas. Slots for installing SIM card(s). SIM Card (For L model).

  • Page 21: Hardware Installation

    This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router, you have to connect your devices correctly. (For the hardware connection, we take “ac” model as an example.) Connect the cable Modem/DSL Modem/Media Converter to any WAN port of router with Ethernet cable (RJ-45).

  • Page 22: Wall-Mounted Installation

    Vigor router has keyhole type mounting slots on the underside. Drill two holes on the wall. The distance between the holes shall be 168mm. Fit screws into the wall using the appropriate type of wall plug. Note The recommended drill diameter shall be 6.5mm (1/4”). When you finished about procedure, the router has been mounted on the wall firmly.

  • Page 23: Antenna Installation (For "L" Model)

    “ “ ” ” “ “ ” ” Antenna must be installed on the extension base before connecting to Vigor Antenna must be installed on the extension base before connecting to Vigor router. router. Extension Base The number of antenna used for LTE and 5G-NR models are different. LTE Model 5G-NR Model 2 sets (Antenna + Extension Base)

  • Page 24: Warning

    For installing the SIM card into the card slot, here, we take Vigor2927Lac as an example. (1) Assemble the extension base with the antenna. (2) While installing the SIM card into the card slot, note that the back plate of the SIM card slot must be removed first.

  • Page 25: Software Configuration

    To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web User Interface.
  • Page 26 Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the router you have. Here we take Vigor2927Lax-5G as an example. If your router can be under an environment with high speed NAT, the configuration provide here can help you to deploy and use the router quickly.
  • Page 27 On the next page as shown below, please select the WAN interface that you use. If Ethernet interface is used, please choose WAN1 or WAN2; if wireless 2.4G/5G connection is used, please choose WAN3 or WAN4; if 3G USB modem/LTE module is used, please choose WAN5/LTE or WAN6.
  • Page 28 Choose WAN1 as WAN Interface and click the Next button; you will get the following page. Select PPPoE and click Next to get the following page.
  • Page 29 Enter the Username/Password provided by your ISP. Then click Next for viewing the summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.
  • Page 30 Choose WAN1 as WAN Interface and click the Next button; you will get the following page. Select DHCP and click Next to get the following page.
  • Page 31 Enter the hostname and / or MAC address provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.

  • Page 32: Customer Service

    Web registration is preferred. You can register your Vigor router via https://myvigor.draytek.com. & & Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. https://www.draytek.com...
