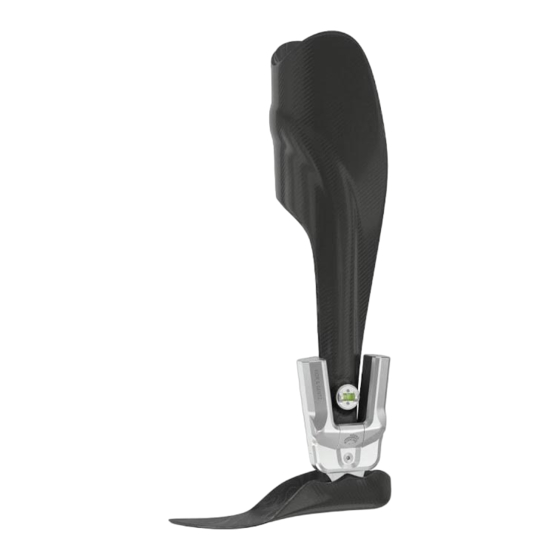

Assembly of the Spirit Level of the NEURO HiSWING
This online tutorial describes the assembly of the spirit level of the NEURO HiSWING system ankle joint.
The spirit level is part of the system joint and is used to adjust the NEURO HiSWING on slopes or inclines
according to the basic alignment set by the orthotist.
You can find further information on the system ankle joint in the
instructions for use
of the NEURO
HiSWING.
Assembly of the Spirit Level of the NEURO
Last Update: 8 August 2022
1/17
HiSWING
Advertisement
Related Manuals for FIOR & GENTZ NEURO HiSWING
Summary of Contents for FIOR & GENTZ NEURO HiSWING
- Page 1 This online tutorial describes the assembly of the spirit level of the NEURO HiSWING system ankle joint. The spirit level is part of the system joint and is used to adjust the NEURO HiSWING on slopes or inclines according to the basic alignment set by the orthotist.
- Page 2 Reinforcing Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 2/17 HiSWING...
- Page 3 Step 1/5 Reinforce as usual until only the final layer of carbon fibre fabric is missing. Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 3/17 HiSWING...
- Page 4 Step 2/5 Mount the assembly/lamination dummy for the spirit level to the system string close to the joint using spray adhesive. Maintain a distance of 4 cm to the axle screw of the system joint to ensure the movability of the lever. Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 4/17...
- Page 5 Step 3/5 Cover all dummies with a final layer of carbon fibre fabric. Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 5/17 HiSWING...
- Page 6 Step 4/5 Laminate as usual. Make sure that the fibres are soaked thoroughly. Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 6/17 HiSWING...
- Page 7 Step 5/5 Place the shaping dummy of the system joint and secure it with adhesive tape. Press out the foot piece in order to receive the highest possible fibre volume ratio. Continue as usual. Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 7/17 HiSWING...
- Page 8 Cutting the Orthosis Out Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 8/17 HiSWING...
- Page 9 Step 1/4 Let the resin harden. Remove the shaping dummy. Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 9/17 HiSWING...
- Page 10 Step 2/4 Use a sharp knife or a file to remove the laminate above the dummies. Ensure clean edges for the spirit level. Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 10/17 HiSWING...
- Page 11 Step 3/4 Remove the assembly/lamination dummy for the spirit level with a screw. Screw it into the thread until the dummy has lifted up on the thread and it can be removed. This ensures that the laminate edges do not get damaged. Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 11/17...
- Page 12 Step 4/4 Continue as usual. Cut the orthosis from the model and temper and grind it. Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 12/17 HiSWING...
- Page 13 Mounting Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 13/17 HiSWING...
- Page 14 Step 1/3 ® Clean the surfaces to be adhered. Use a small amount of AGOMET F330 to adhere the spirit level to the cavity shaped by the dummy. Note: mind the when using AGOMET ® F330. safety data sheet Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 14/17 HiSWING...
- Page 15 Step 2/3 Mount the system joint according to the assembly instruction in the instructions for use and use the online tutorial. Note: the can also be found online in the download section. instructions for use Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 15/17 HiSWING...
- Page 16 Step 3/3 The alignment of the orthosis is based on the individual, gait-related normal posture of the patient. This ensures the most physiological gait possible in mid stance. Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 16/17 HiSWING...
- Page 17 Last Update: 8 August 2022 Assembly of the Spirit Level of the NEURO Last Update: 8 August 2022 17/17 HiSWING...
