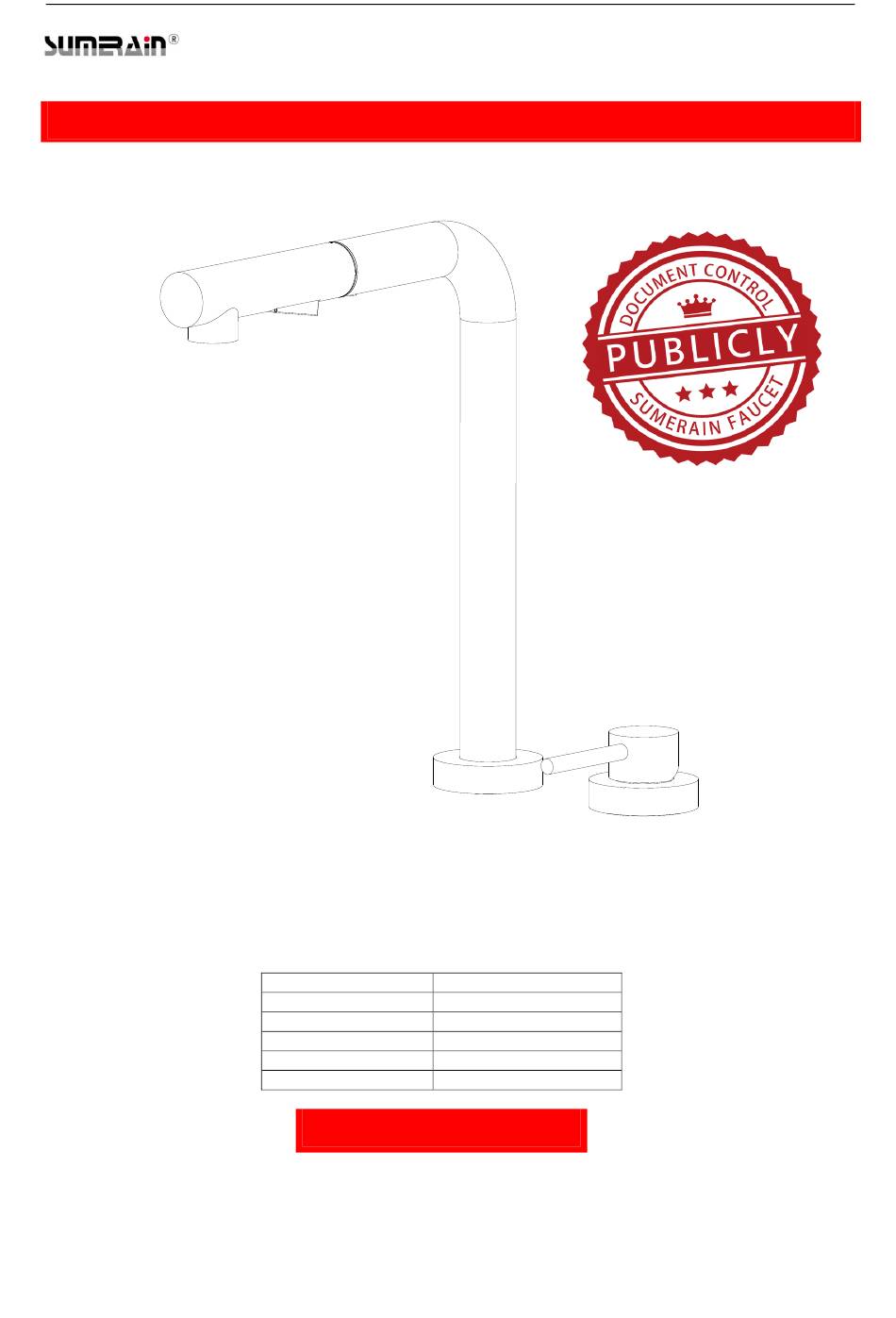

- Page 1 MODEL: S6127PR-XX Version: 1.0 INSTALLATION GUIDE PULL-OUT KITCHEN FAUCET WITH LIFTABLE SPOUT MODEL FINISH S6127PR-CH CHROME S6127PR-BN BRUSHED NICKEL S6127PR-BG BRUSHED GOLD S6127PR-MB MATTE BLACK S6127PR-MG BLACK&BRUSHED GOLD HOT LINE: +1-866-203-0866...
-
Page 2: Before Proceeding
THANK YOU Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions. -
Page 3: Limited Lifetime Consumer Warranty
If a defect is found in normal residential use, SUMERAIN will, at its election, repair, provide a replacement part or product, or make appropriate adjustment. - Page 4 FUNCTIONS AND SPECIFICATION Faucet Type Kitchen Faucet Style Contemporary Finish Chrome/Brushed Nickel/Matte Black/Brushed Gold/ Black&Brushed Gold Installation type Deck Mount Installation Holes Two Holes Number of Handles Faucet Total Height 11-7/16 Inch [296mm] Spout Reach 8-7/16 Inch [215mm] Spout Width 1-1/8 Inch [28mm] Spout Height Min 1-1/8”~Max 10”...
- Page 5 DEMENSION FRONT VIEW LEFT VIEW...
-
Page 6: Installation Steps
ASSEMBLE PFH00005XX Shank SUS304 PNT61272XX Cold supply line[Blue] ASSEMBLE PFH00002XX Heavy ball ASSEMBLE PSA61190XX Hot supply line[Red] ASSEMBLE PFH00001XX Sprayer supply hose ASSEMBLE PFH00011XX If any of these items are missing, please contact SUMERAIN consumer service by email to: supports@sumerain.com... -
Page 7: Installation
4. INSTALLATION HOLES INSPECTION Verify that the hole sizes is correct, please ensure the diameter of mounting hole is between 1-7/16” to 1-9/16” (⌀36mm to ⌀40mm) recommend using a 1-1/2" in. (⌀40mm) hole saws bits for drilling the mounting hole and the max deck thickness is 1-3/16”(30mm) 5. - Page 8 5.2 Remove the mounting hardware from the mounting shank 5.3 Connect hot and cold water supply lines provided, to their respective threaded connectors at the bottom of the faucet, Hot: left, cold: Right. Tighten both supply lines by hand, and then with a wrench or grips, but be careful not to over tighten or you may strip or crack the threaded connectors.
- Page 9 5.4 Put the rubber o-ring into the bottom gap of faucets then insert faucet into faucet mounting hole and slide rubber washer and mounting bracket onto the thread shank from below the sink.
- Page 10 Secure the faucet valve to the mounting deck with screws by Philips screwdriver. 5.6 Thread the pull-out kitchen sprayer hose through the faucet's spout tube.
- Page 11 Connect the sprayer hose to the mixer outlet hose connector, and then attach the heavy ball to sprayer hose. 5.8 Connect the hot and cold water hose from the faucet to each of the hot and cold supply valve; tighten the mounting nut by wrench.
- Page 12 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG Factory Address: Floor 3th,No.2 ZhongXing Road,ShuiNuan City Industrial Zone,Shuikou town, Kaiping City,...
