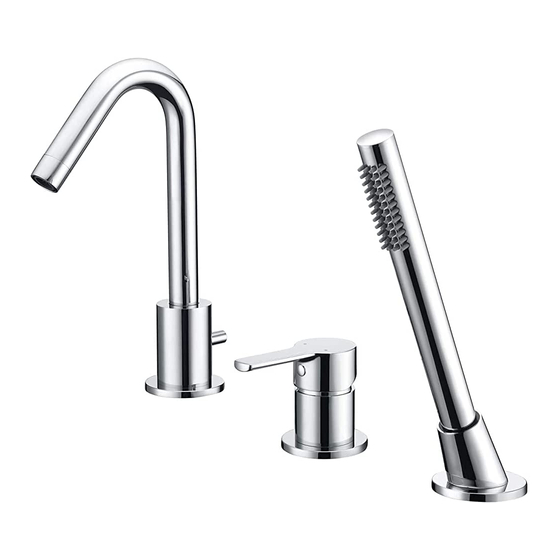

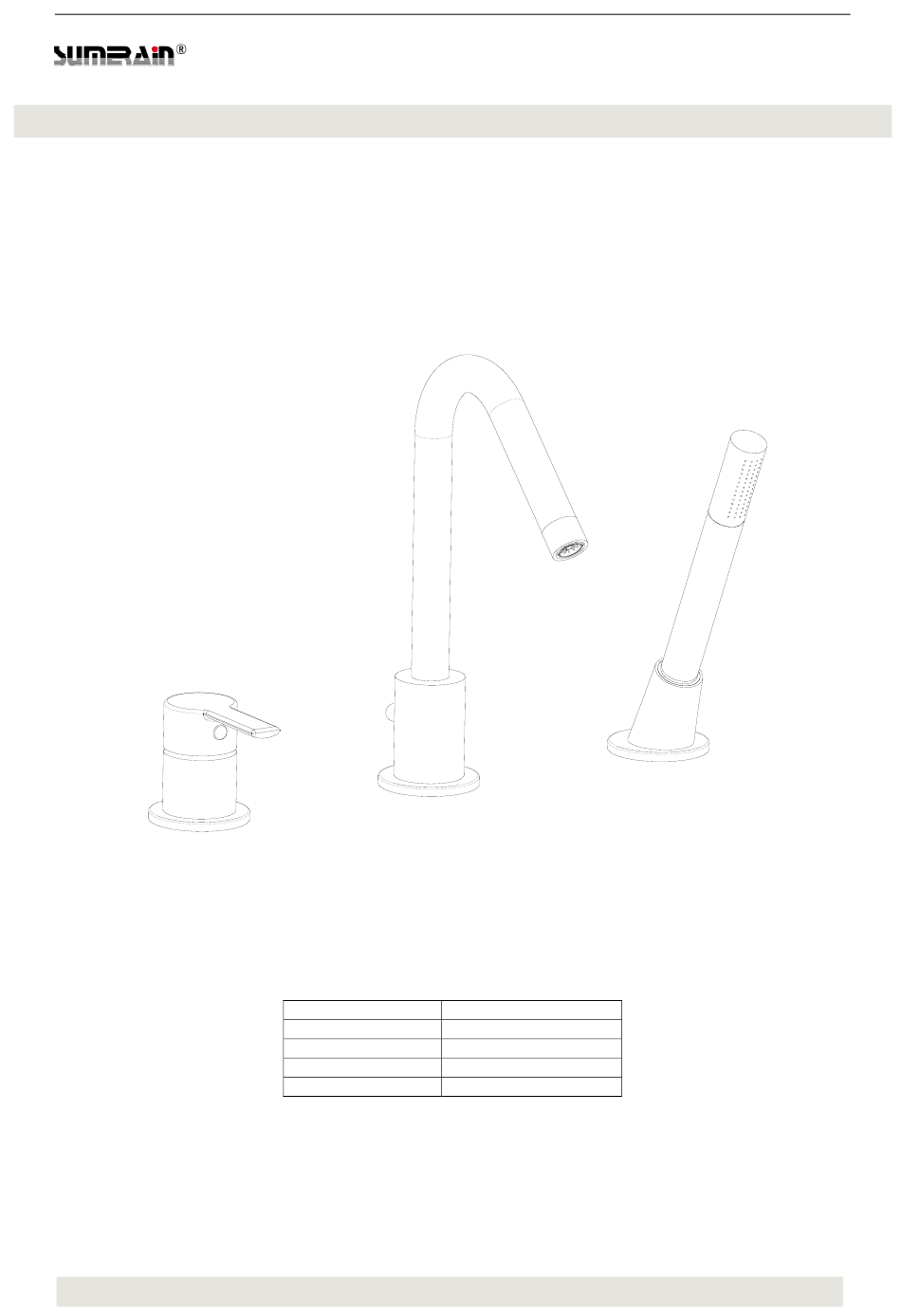

- Page 1 MODEL: S2137XS Version: 3.0 INSTALLATION GUIDE ROMAN BATHTUB FAUCET MODEL FINISH S2137CS CHROME S2137NS BRUSHED NICEKL S2137DS MATTE BLACK S2137BGS BRUSHED GOLD SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
-
Page 2: Before Proceeding
THANK YOU Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions. -
Page 3: Limited Lifetime Consumer Warranty
If a defect is found in normal residential use, SUMERAIN will, at its election, repair, provide a replacement part or product, or make appropriate adjustment. - Page 4 Faucet Spout Material Brass Hand shower included Hand shower Material Brass Net Weight 5.96 lbs Gross Weight 6.83 lbs Working water press 29PSI ~116PSI Flow Rate 5.31GPM @ 60PSI 17-5/16” x 13-3/4” x 3-11/32” Packing box size SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 5 DIMENSION FRONT VIEW OF FAUCET ‘’ SIDE VIEW OF SPOUT SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 6 SIDE VIEW OF CONTROL VALVE SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
-
Page 7: Installation Steps
Handshower holder 1PCS 2137011 2137024 Lock Nut 3PCS Flexible hose 3PCS 2137012 2137025 Mounting screw 6PCS Shower hose 1PCS 2137013 2137026 If any of these items are missing, please contact SUMERAIN consumer service by email to: supports@sumerain.com SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM... - Page 8 4. INSTALLATION HOLES INSPECTION Verify that the hole sizes and positions in the wall are correct, the diameter of mounting hole recommend 1-1/4” and maximum 1-7/8”, the max thickness of deck should be 31/32’’ SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
-
Page 9: Installation
3~5 minutes to flush out dirt and debris. Shut off the water supply again after done. 5.2 Screw in the hoses to the bottom of control valve as below drawing. “ Bottom view of control valve SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM... - Page 10 5.3 Attach the escutcheon to spout assembly. 5.4 Position spout assembly with escutcheon onto mounting surface and fasten with locknut and screws. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 11 5.5 Attach the adapter to diverter valve and fasten with lock nut. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 12 5.6 Place the O-ring to adapter and install to diverter valve. 5.7 Attach the escutcheon to faucet valve assembly. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 13 5.8 Place control valve with hoses across the mounting surface, secure it with lock nut by screwdriver. Attach the escutcheon to shower holder. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 14 5.10 Install shower holder assembly as below. Tighten the rubber washer and fasten with lock nut by screwdriver from underneath. 5.11 Install the hand shower into the end of shower hose with rubber washer. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 15 5.12 Connect shower hose to the adapter with rubber washer as drawing. 5.13 Connect the flexible hose to the inlet of adapter as drawing. SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 16 5.14 Connect to stop valve separately with flexible hose. Flexible hose connector: 9/16 [US,CA] G1/2” [UK and EU] 6. INSPECTION 6.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere. INSTALL FINISH SUMERAIN SANITARY GROUP WWW.SUMERAIN.COM...
- Page 17 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG...
