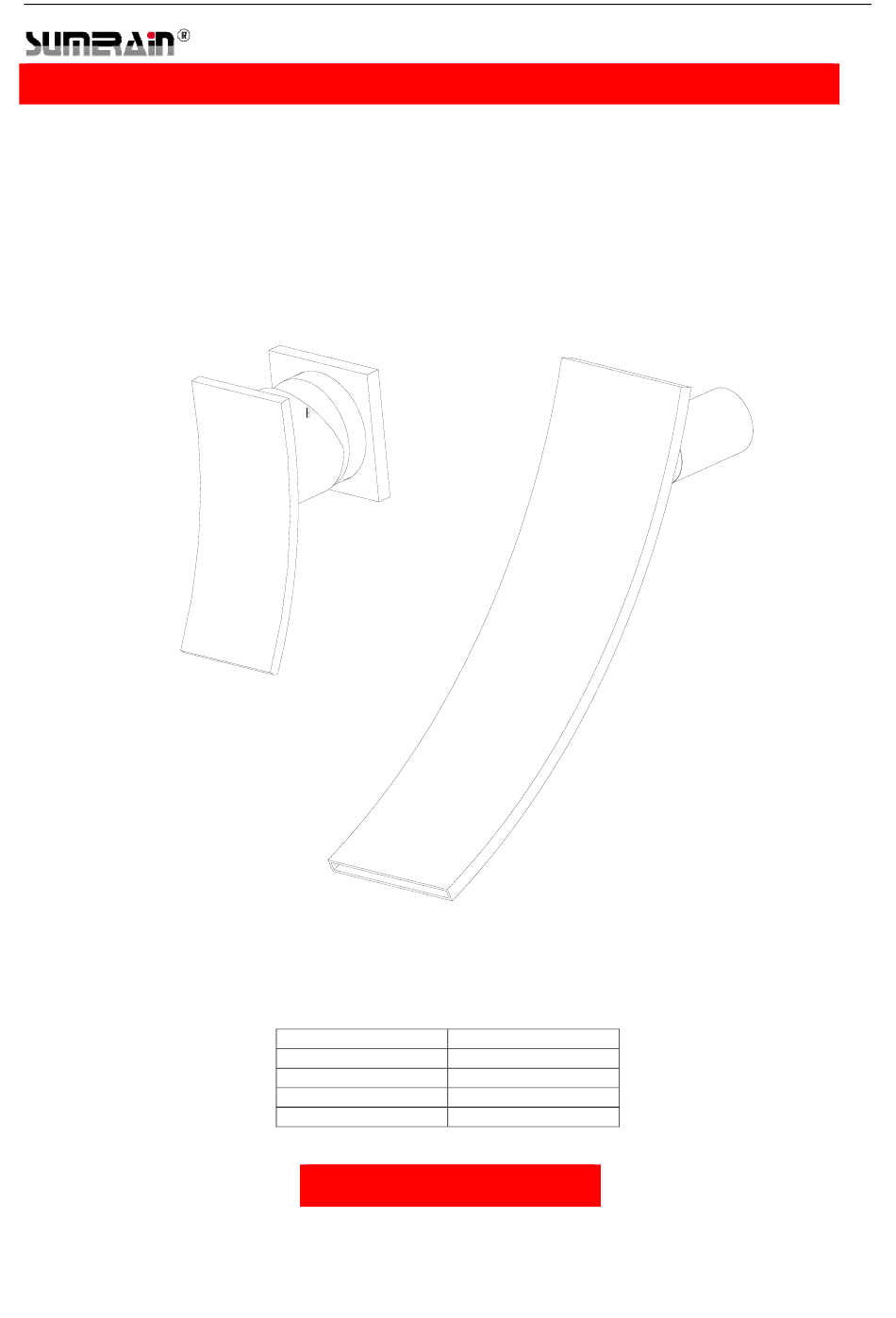

- Page 1 Version: 1.1 INSTALLATION GUIDE LEFTHAND WALL MOUNTED BATHROOM FAUCET MODEL FINISH S1371CW-LH CHROME S1371NW-LH BRUSHED NICKEL S1371DW-LH Matte Black S1371BGW-LH Brushed Gold HOT LINE: +1-866-203-0866...
-
Page 2: Before Proceeding
THANK YOU Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions. -
Page 3: Limited Lifetime Consumer Warranty
This warranty covers only your SUMERAIN manufactured product. SUMERAIN warrants this product against defects in material or workmanship as follows: SUMERAIN will repair at no charge for parts only or, at its option, replace any product or part of the product that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. - Page 4 FUNCTIONS AND SPECIFICATION FUNCTIONS AND SPECIFI Function Bathroom Sink Faucets Feature Left-hand, Waterfall, Wall mounted Theme Modern ,Contemporary Configuration Vessel Finish Chrome/Brushed Nickel/Matte Black/Brushed Gold Installation Holes Number of Handles Lever Handle style Faucet Total Height Adjustable 7-21/32” Spout Reach 2-3/8”...
- Page 5 DEMENSION FRONT VIEW OF FAUCET SIDE VIEW OF FAUCET...
- Page 6 TOP VIEW OF ROUGH-IN VALVE FRONT VIEW OF ROUGH...
-
Page 7: Installation Steps
1371009 1371010 Handle(Lever) 1PCS Set screw 2PCS 1371011 1371012 Allen wrench 2PCS Screw cover 1PCS 1371013 1371014 Mounting screw 3PCS Anchor 3PCS 1371015 1371016 If any of these items are missing, please contact SUMERAIN consumer service by email to: supports@sumerain.com... - Page 8 4. VALVE TRIM INSTALLATION 4.1 Make a mounting rack (normally use woods as materials) for preparing install the rough-in valve.The mounting rack’s face should be 2-1/32” at least and Max 2-13/16”behind the finish wall surface.
- Page 9 Apply Teflon tape on the spout shank and connect to rough-in valve Secure the rough-in valve to the mounting rack with screws (not including)
- Page 10 4.4 Turn on your shut-off valve for cleaning the hot and cold water supply tube before connect to the valve trim, allow the water flush 3~5 minutes to flush out dirt and debris. Shut off the water supply again after finish. 4.5 Apply Teflon tape on the thread of tube inlet and then connect to valve trim with elbow.
- Page 11 4.6 Install the finished wall. 4.7 Install the spout adapter...
- Page 12 4.8 Slide the escutcheon over the spout adapter and attached to the finished wall. 4.9 Attach the spout to the spout adapter...
- Page 13 4.10 Slide the escutcheon over the cartridge sleeve and attached to the finished wall 4.11 Place handle onto the valve stem and tighten set screws by using the Allen wrench that is provided.(Please don’t over tighten)
- Page 14 4.12 Attach the handle button (hot/cold sign) to handle for covering the set screw. ASSEMBLE FINISHED 5. INSPECTION 5.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere.
-
Page 15: Function Inspection
6. FUNCTION INSPECTION 6.1 Turn on the handle, the water outflow from the spout and then turn off the handle, the water stop out flowing. 6.2 Turn right the handle, the cold water coming, on the contrary way, turn left the handle, hot water coming. INSTALL FINISH... - Page 16 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG Factory Address: Floor 3th,No.2 ZhongXing Road,ShuiNuan City Industrial Zone,Shuikou town, Kaiping City,...
