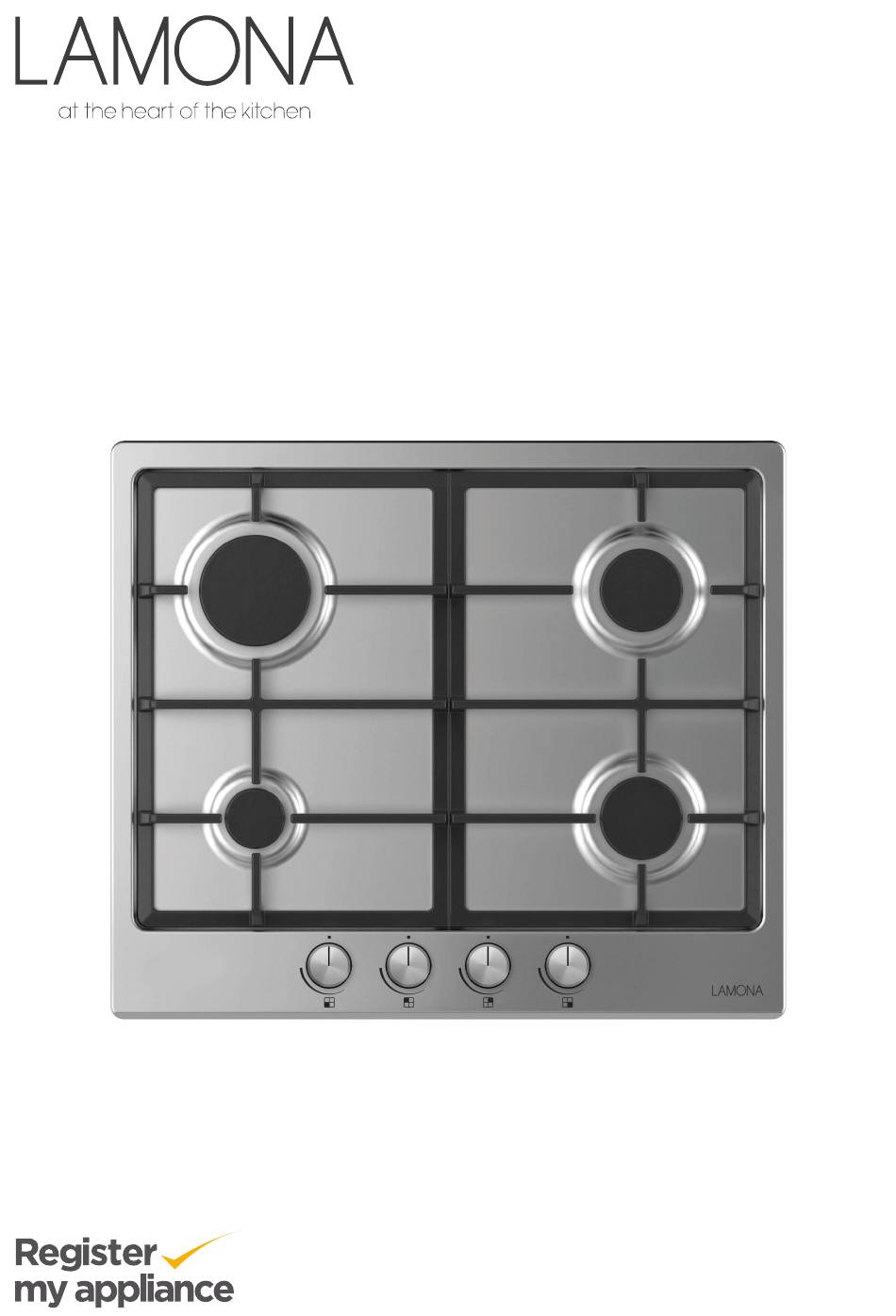

- Page 1 4 Burner Pro Gas Hob LAM1112 Instructions and Installation ISSUE v5.1 130522 www.howdens.com/appliance-registration...
- Page 2 4 Burner Pro Gas Hob LAM1112 www.howdens.com...
- Page 3 Instructions and Installation Welcome Dear Customer, Congratulations on your choice of hob. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the hob. • Always follow the safety instructions. •...
-
Page 4: Table Of Contents
4 Burner Pro Gas Hob LAM1112 Contents 1. Before using the hob 4. Cleaning and maintenance 16 Safety How to clean your hob General Safety 5. Installation Fire safety advice General information If a pan catches fire Room ventilation Deep-fat frying presents more... -
Page 5: Before Using The Hob
Instructions and Installation 1. Before using the hob • Make sure that you have removed all packaging, wrappings, stickers and films from the hob surface. • It is recommended that you clean the hob surface before using for the first time (see page 16). Safety •... - Page 6 4 Burner Pro Gas Hob LAM1112 • CAUTION: the cooking process must be supervised. A short-term cooking process has to be supervised continuously. • It is strongly recommended to keep children away from the cooking zones while they are in operation or when they are switched off, so long as the residual heat indicator is on, in order to prevent the risks of serious burns.
-
Page 7: Fire Safety Advice
Instructions and Installation • NEVER use a steam or high pressure spray to clean the appliance. • Do not touch the heat zones during operation or for a while after use. • NEVER cook food directly on the glass ceramic hob. •... -
Page 8: Deep-Fat Frying Presents More Dangers In Your Kitchen
4 Burner Pro Gas Hob LAM1112 Deep-fat frying presents more dangers in your kitchen • Never fill a chip pan (or other deep fat fryer) more than one-third full of oil. • Do not use a fire extinguisher on a pan of burning oil – the force of the extinguisher can spread the fire and create a fireball. -
Page 9: What To Do If You Smell Gas
Instructions and Installation What to do if you smell gas • Do not use open flame or do not smoke. Do not operate any electrical buttons (e.g. lamp button, door bell etc.). Do not use mobile phones. Risk of explosion and intoxication! •... -
Page 10: Environmental Instructions
4 Burner Pro Gas Hob LAM1112 2. Environmental instructions Waste regulation Disposing of the old product. Compliance with the WEEE Directive and disposing of the waste product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). -
Page 11: Using The Hob
Instructions and Installation 3. Using the hob Hob layout This appliance must only be used Spark plug Gas burner knob for the purpose for which it is Burner plate Auxiliary burner intended, domestic cooking, and Pan support Semi - rapid burner any other use will be considered Rapid burner Base cover... -
Page 12: Cooking With Gas
4 Burner Pro Gas Hob LAM1112 Always light the burner before heavy to move easily when you put any cookware on it. filled can also be a hazard. Only use flat bottomed pots To light the burner: or pans. 1. Turn the control knob... -
Page 13: Turning Off The Burner
Instructions and Installation If the burner accidentally goes WARNING! Pots must not enter out, turn the control knob to the control zone. the off position and try to light WARNING! Flame diffusers the burner again after minimum are not recommended. 1 minute. -
Page 14: Burner Caps
4 Burner Pro Gas Hob LAM1112 Burner caps and heads In case of flame failures of the burners for any reason, the flame failure sensor will cut off the IMPORTANT: Allow burners gas flow after a few seconds. to cool before cleaning. - Page 15 Instructions and Installation Burner cap Burner crown Ignition candle Thermocouple Correct Burner cap Parallel Burner head Incorrect Angled Incorrect Burner cap not central...
-
Page 16: Cleaning And Maintenance
4 Burner Pro Gas Hob LAM1112 4. Cleaning and maintenance How to clean your hob • Switch plates off and let cool. • Do not use steam cleaners If necessary, treat plates with or high pressure cleaning a cleaning agent (cleaner equipment. -
Page 17: Room Ventilation
Instructions and Installation Room ventilation The air for combustion is taken Alternative acceptable from the room air and the exhaust forms of opening include gases are emitted directly into any adjustable grille or louvre, the room. hinged panel or other means of ventilation that opens Good room ventilation is essential directly to the outside air. -
Page 18: Clearances And Dimensions
4 Burner Pro Gas Hob LAM1112 Clearances and dimensions 50mm min. 480mm 50mm min. Minimum distance between cabinets must be equal to overall width of hob. There must be a minimum Minimum height to extractor clearance of 50mm between as recommended in extractor the rear edge of the cut-out instruction manual. - Page 19 Instructions and Installation Figure 1 Figure 2 Figure 3 Figure 4 Figure 5...
-
Page 20: Gas Connection
4 Burner Pro Gas Hob LAM1112 Use only pipes, washers and sealing washers which comply with relevant national standards. Adapting the hob to different types of gas To adapt the hob for use with different types of gas, carry out the following instructions: •... -
Page 21: Regulating The Minimum Flame
Instructions and Installation NOTICE: If the gas type of the unit is changed, then the rating plate that shows the gas type of the unit must also be changed. Regulating the minimum flame After lighting the burners, turn the control knob to the minimum setting then remove the knob (this can easily be removed by applying gentle pressure). -
Page 22: Electrical Connections
4 Burner Pro Gas Hob LAM1112 Electrical connections • IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your hob is intended for permanent installation. • Your appliance must be connected to fixed wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation. - Page 23 Instructions and Installation The appliance may be Terminal connected to the mains BROWN BLUE (Live) (Neutral) supply only by a suitably qualified person. The mains GREEN YELLOW (Earth) lead must not be clamped, bent, trapped, or come into contact with hot parts of the Cable clamp appliance.
-
Page 24: Technical Specifications
4 Burner Pro Gas Hob LAM1112 6. Technical specifications Technical information General Gas power 7.2 kW G20/G25 20/25 mbar (methane) 686 I / h G30/G31 28-30/37 mbar (LPG) 523 g / h Installation class Voltage / frequency V / Hz... -
Page 25: Troubleshooting
Instructions and Installation 7. Troubleshooting Troubleshooting guide Symptoms Possible cause Solutions There is no spark • There is no electrical supply. • Make sure that the unit is when lighting connected and the electrical the gas. supply is switched on. •... -
Page 26: Your Guarantee
• Your full contact details. Call the Depot number on your Proof of Purchase Document supplied with the product/kitchen. Call the LAMONA Service Line on: Within the UK: 0344 460 0006 Within Republic of Ireland: 01525 5703 • Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 27 Instructions and Installation Notes _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________...
- Page 28 Product serial number (Place sticker here) REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Howden Joinery Ltd, Thorpe Road, Howden, East Yorkshire, DN14 7PA Imported in EU by: Houdan Cuisines SAS, Z.A. du Bois Rigault Nord, 1Rue Calmette, 62880 Vendin-le-Vieil, Cedex, France.
