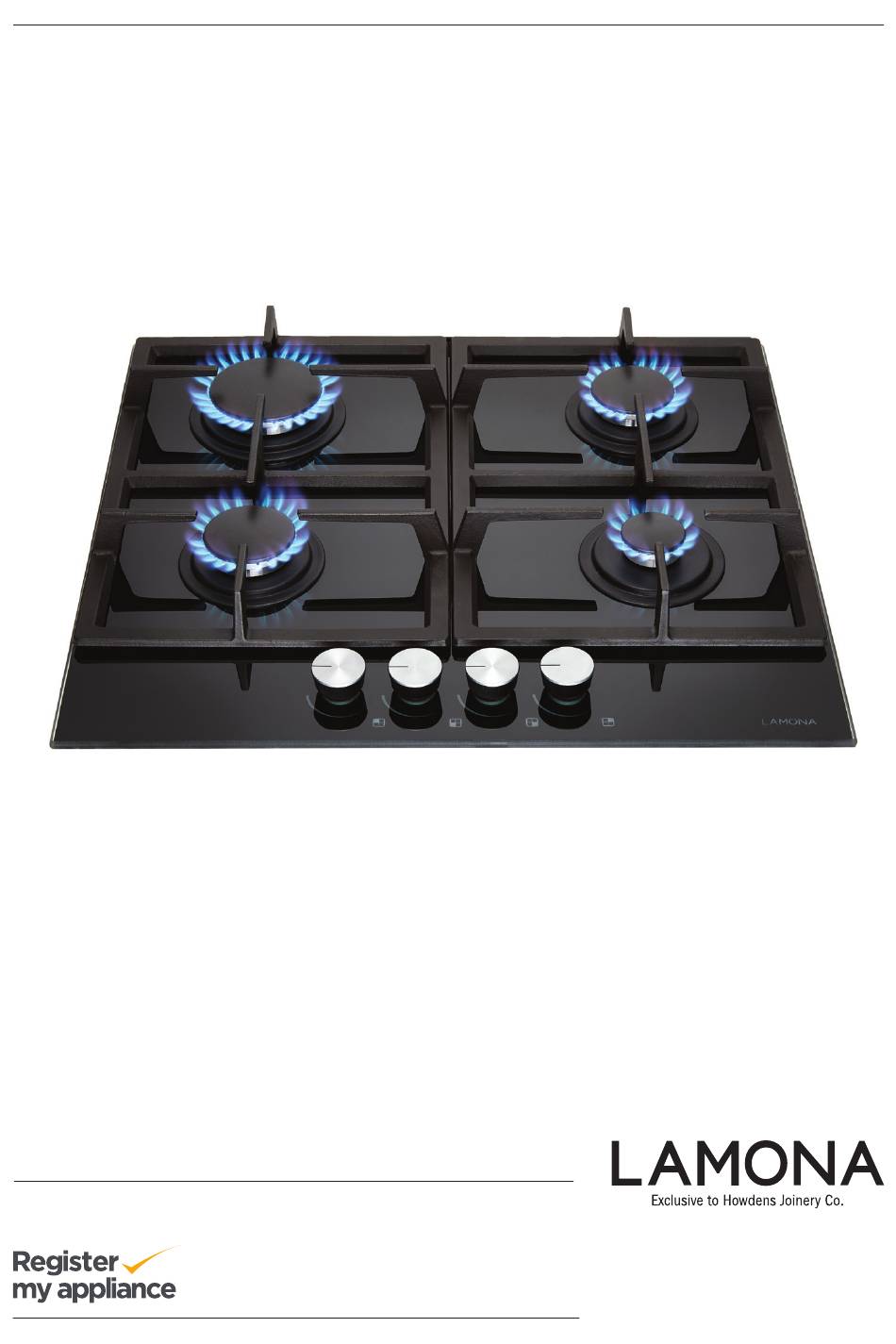

- Page 1 Gas On Glass Hob 4 Zone LAM1500 User Guide www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 User manual LAM1500 Dear Customer, Congratulations on your choice of hob. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the hob. • Always follow the safety instructions.
-
Page 4: Table Of Contents
LAMONA Appliances Index 01 - Before using the hob 02 - Safety General Fire safety advice If a pan catches fire Deep fat frying Safety working with gas What to do if you smell gas Carbon monoxide Glass warning 03 - Using the hob... -
Page 5: Before Using The Hob
User manual LAM1500 01 - Before using the hob • Make sure that you have removed all packaging, wrappings, stickers and fi lms from the hob surface. • It is recommended that you clean the hob surface before using for the fi rst time (see p12). -
Page 6: Fire Safety Advice
LAMONA Appliances • Never leave pans over- • Never leave pans over- ns smaller • Never use pans smaller hanging the edge of the hob. hanging the edge of the hob. and larger than 100mm (4”) and larger ).Match the than 250mm (10”).Match the... -
Page 7: Deep Fat Frying
User manual LAM1500 attention shall be given to the t the fire out, • If you have put the fire out, relevant requirements regard- ool com- leave the pan to cool com- ing ventilation. pletely. • The use of gas cooking... -
Page 8: What To Do If You Smell Gas
LAMONA Appliances d be checked mps etc should be checked Carbon monoxide regularly. This product should be used mation about • Request information about in a room which incorporates lephone gas emergency telephone a properly adjusted and ety measures numbers and safety measures... -
Page 9: Using The Hob
User manual LAM1500 03 - Using the hob Hob layout Pan support Auxiliary burner Assembly Clamp Control Panel Base cover Normal burner Main body (tempered glass) Rapid burner Normal burner Burner Controls Position Rapid burner Auxiliary burner Normal burner Normal burner... - Page 10 LAMONA Appliances Cooking with gas Burner Diameter of cookware Rapid 220mm - 240mm WARNING! Do not use cooking pans beyond the dimension Front semi-rapid 180mm - 200mm limits given opposite. Using larger pans causes risk Rear semi-rapid 180mm - 200mm of carbon monoxide poisoning, overheating of adjacent surfaces and control knobs.
-
Page 11: Burner Caps
User manual LAM1500 In case of fl ame failures of the burners for any reason, the fl ame failure sensor ‘A’ will cut off the gas fl ow after a few seconds. If this occurs, depress and turn the control knob to the ignition position clockwise direction and wait for ignition. -
Page 12: Cleaning And Maintenance
LAMONA Appliances 04 - Cleaning & maintenance How to clean your hob • Allow the product to cool down before you • Do not use cleaning agents that contain acid or clean it. Hot surfaces may cause burns chloride to clean the stainless or inox surfaces and the knobs. -
Page 13: How To Clean Glass
User manual LAM1500 How to clean glass surfaces Wipe the glass ceramic surface using a piece of cloth dampened with cold water in a manner as not to leave any cleaning agent on it. Dry with a soft and dry cloth. Residues may cause damage on the glass ceramic surface when using the hob for the next time. -
Page 14: Installation
User manual LAM1500 05 - Installation General information Room ventilation Installation should only be carried out by a qualifi ed The air for combustion is taken from the room air and the exhaust gases are emitted directly into the installer or engineer. -
Page 15: Clearances And Dimensions
LAMONA Appliances Clearances and dimensions 110mm min between hob and the side wall ** Minimum distance between cabinets must be equal to overall width of all hobs * Minimum height to extractor as recommended in extractor instruction manual No shelf or overhang of combustible material should be closer than 650mm directly above the hob. -
Page 16: Installation Above An Oven
User manual LAM1500 Secure the hob to the worktop by means of the brackets provided, taking the thickness of the worktop into account. Your appliance will be supplied and installed using the following installation method. The brackets are secured directly into the base of the hob in appropriate positions as shown. -
Page 17: Installation Above Kitchen Unit With Door And Drawer
LAMONA Appliances Installation above a kitchen unit with door & drawer Worktop 15mm The panel installed below the hob must be easy to remove to allow easy access in case a technical intervention is necessary. oven or partition Elbow Installation... -
Page 18: Gas Connection
User manual LAM1500 Adapting the hob to different types of gas To adapt the Hob for use with different types of gas, carry out the following instructions: Unscrew the injector and replace it with one suitable for the gas to be used. -
Page 19: Regulating The Minimum Flame
LAMONA Appliances Regulating the minimum fl ame After lighting the burners, turn the control knob to the minimum setting then remove the knob (this can easily be removed by applying gentle pressure). Using a small «terminal» type screwdriver the regulating screw can be adjusted as in image shown. -
Page 20: Electrical Connections
User manual LAM1500 Electrical connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your hob is intended for permanent installation. Your appliance must be connected to fi xed wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation. -
Page 21: Technical Specifications
LAMONA Appliances Technical specifications General Gas Power / Category 7.4 kW / II 2H3+ G 20/20 mbar (natural gas) 704 lt/h G 30/28-30 mbar (LPG) 538 g/h Installation Class Voltage/ Frequency V / Hz 220-240 V / 50Hz Electrical Input Power... -
Page 22: Troubleshooting
User manual LAM1500 Troubleshooting Problem Possible Cause Remedy There is no spark when lighting • There is no electrical supply • Make sure that the unit is the gas connected and the eletrical supply is switched on. • Control the fuse. If the fuse... -
Page 23: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0344 460 0006 * Product installed within a domestic kitchen or non-domestic kitchen where 8 or fewer people are using the appliance. - Page 24 Product serial number (Place sticker here) Issue v2 180618 185.9279.55/R.AA/18.06.2018...
