CAL.FS00/01, FS10/11, FS20/21
1.BASIC SPECIFICATIONS
(1) CaL. No.
FS00
CALIBRE
PUSHER
Ligne
Size*mm
Date
Total height
4.13mm

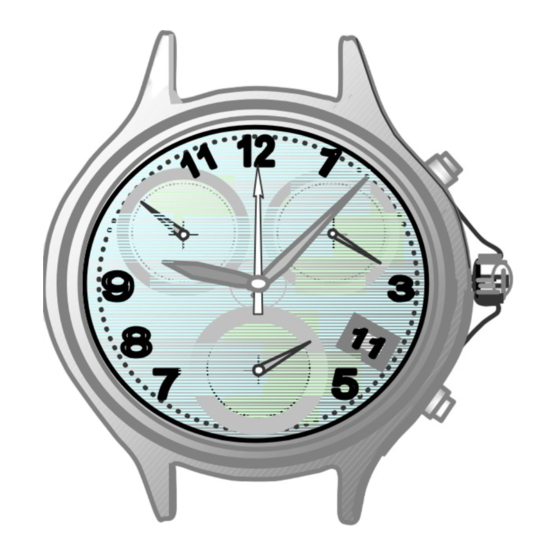

Figure
(push button
placed angle)
Battery & Life
(2) Time standard
Type of quartz : Tuning fork type quartz crystal
Frequency
: 32,768Hz
Accuracy
: +/-20 s/month worn under normal circumstances
(3) Balanceable weight of hand
Minute hand Max. 0.4 µN.m
Second hand Max. 0.035 µN.m
Other small hands Max. 0.02 µN.m
(4) Function
Chronograph 1/1 sec. Basis (Up to 59 min. 59 sec.)
Powercell Saving Reset Mechanism(PSRM)
Over-loading Compensation Device(OLCD)
Digital Frequency Control(DFC) for time adjustment
MOVEMENT SPECIFICATIONS
10-1/2 LIGNE, 3 EYES CHRONOGRAPH
ANALOGUE QUARTZ, 0 JEWEL
MANUFACTURED IN JAPAN
／
SLANTED
／
Slante
FS00
／
FS00 / FS01 (EYE POSITION)
FS10
FS20
10-1/2
23.7X22mm (3H-9H)
O
5.10mm
5.10mm
FS10
FS20
SR626SW 2YEARS*
*TO CONFIRM WITH MOV'T DRAWING ATTACHED
FS01 ／
FS11 FS21
PARALLEL
4.28
5.25
／
Parallel
FS01
(FS11) (FS21)
* based on 1 hour/day chronograph use
chrono 60 min.→
(9H)
second hand (6H)↑
chrono 60 min.→
(9H)
second hand (6H)↑
5.25
FS10 / FS11
FS20 / FS21
Advertisement
Related Manuals for Citizen FS11
Summary of Contents for Citizen FS11
- Page 1 (3) Balanceable weight of hand Minute hand Max. 0.4 µN.m Second hand Max. 0.035 µN.m Other small hands Max. 0.02 µN.m FS10 / FS11 (4) Function Chronograph 1/1 sec. Basis (Up to 59 min. 59 sec.) Powercell Saving Reset Mechanism(PSRM)
- Page 2 2.SEPARATED PARTS Setting stem x1 Code 065-549 Length from movement center to far end 20.00mm of setting stem Thread......... Ф0.9mm x 9.06mm 3.OTHERS * Measurement of time rate The unit(gate) time of measurement must be set at "10 sec." or integer fold value of 10 sec.
-
Page 3: Setting The Time
4 INSTRUCTION MANUAL A) DISPLAYS AND BUTTONS B) SETTING THE TIME 1. Pull the crown out to the 2nd-click position so that the second hand stops at (0) position. 2. Turn the crown to set the hour and minute hands. C) SETTING THE DATE 1. - Page 4 E) CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY) This procedure shoud be performed when the chronograph second hand do not return to the 0 second position after the chronograph has been reset, and including after the battery has been replaced. 1. Pull the crown out to the 2nd position. 2.
